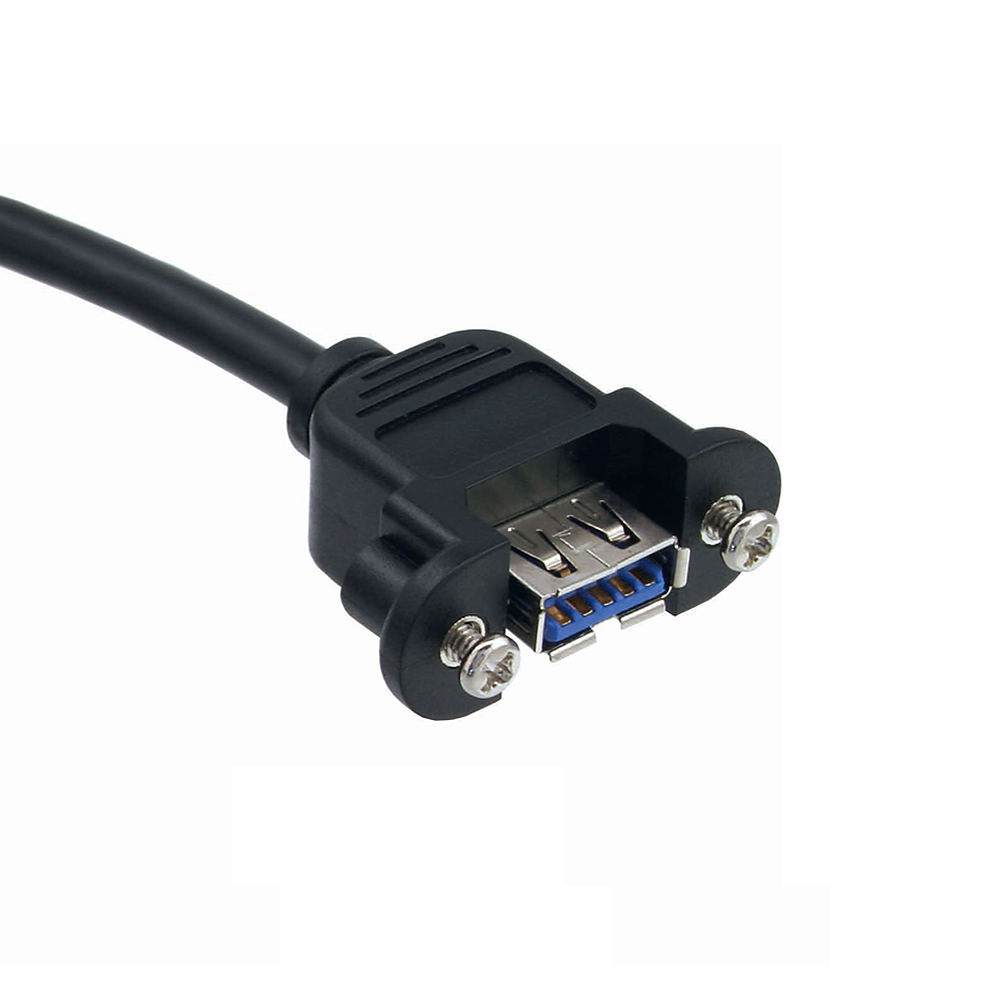

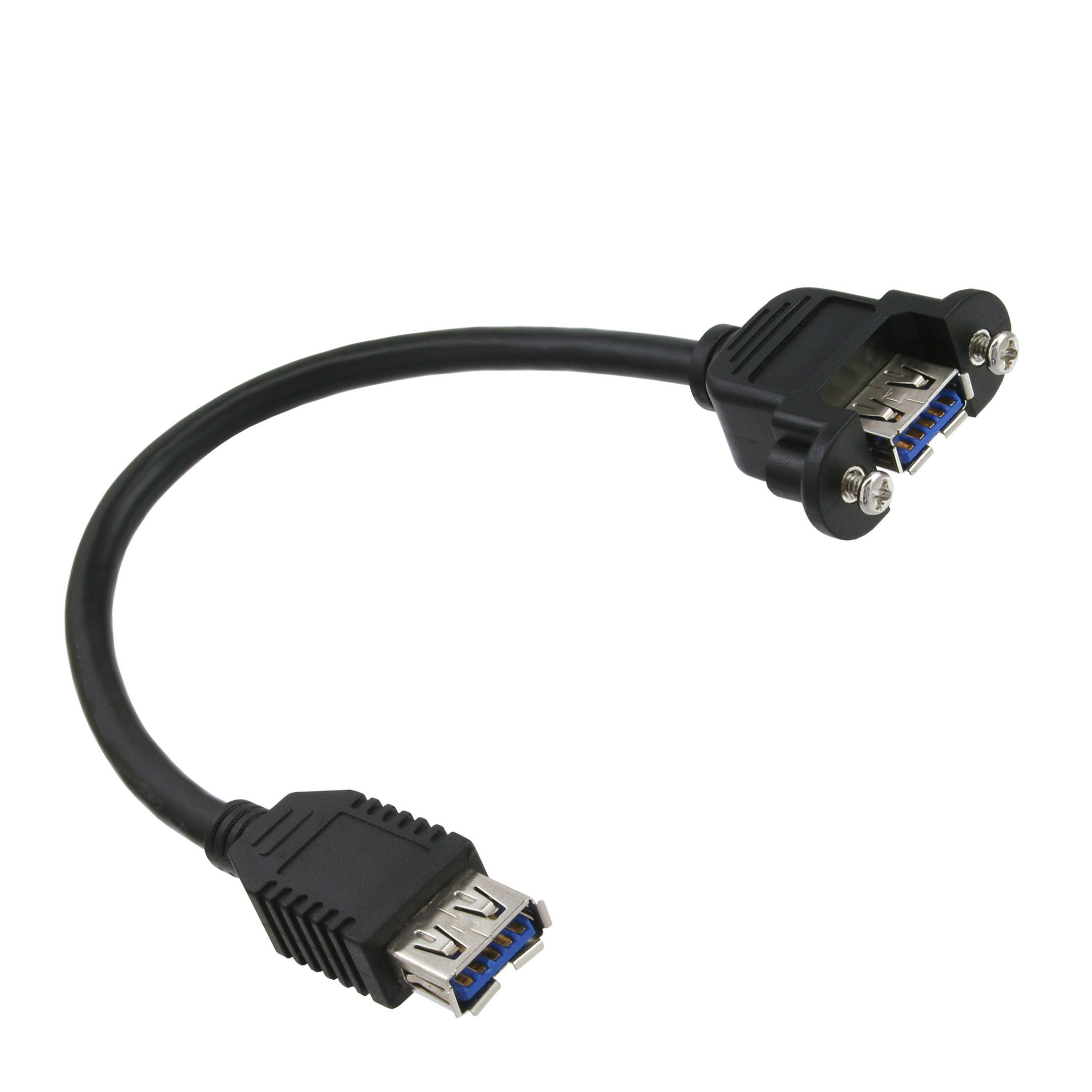

USB 3.0 Panel Mount Cable, A female with screws to A female, 20cm

DR. ZELLMER

€8.26*

5 in stock

PDF-Datasheet

Item no. U3-A-25-I

USB 3.0 Panel Mount Cable for industrial applications: USB A female (mountable with 2 screws) to USB A female, length: about 20cm, screws included

Key features

Short USB 3.0 panel mounting cable with screw-on A socket
SPECIAL FEATURE: socket/socket version
Connection 1: USB 3.0 A panel-mount socket (female, recessed nuts on the side)
Connection 2: USB 3.0 A socket (female)
scope of delivery: Cable incl. 2 screws (screw type UNC 4-40, length approx. 15mm)
screw spacing / hole spacing: 25mm
double-shielded cable (foil shield and braided shield)
data wires twisted pair
wire gauges: 28 AWG/1P and 24 AWG/2C
conductor material: copper (CU)
USB 2.0 compatible + downward compatible with USB 1.1
suitable for 480 MBit/s (high speed), 12 MBit/s (full speed) and 1.5 MBit/s (low speed)
colour: black
length: about 0.2 metres | 20 cm
customs tariff no.: 85444290
e.g. for industrial applications, rear panel brackets, internal USB extensions
CE, WEEE, RoHS compliant
