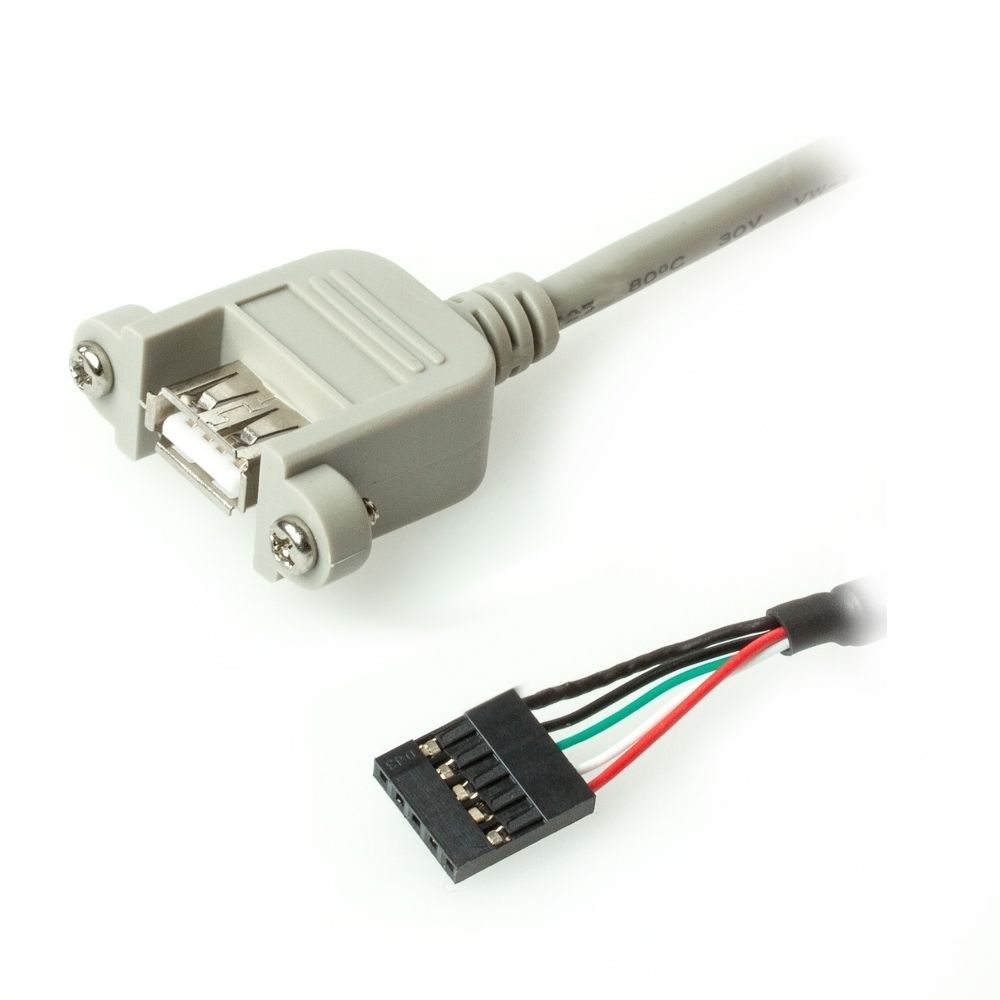

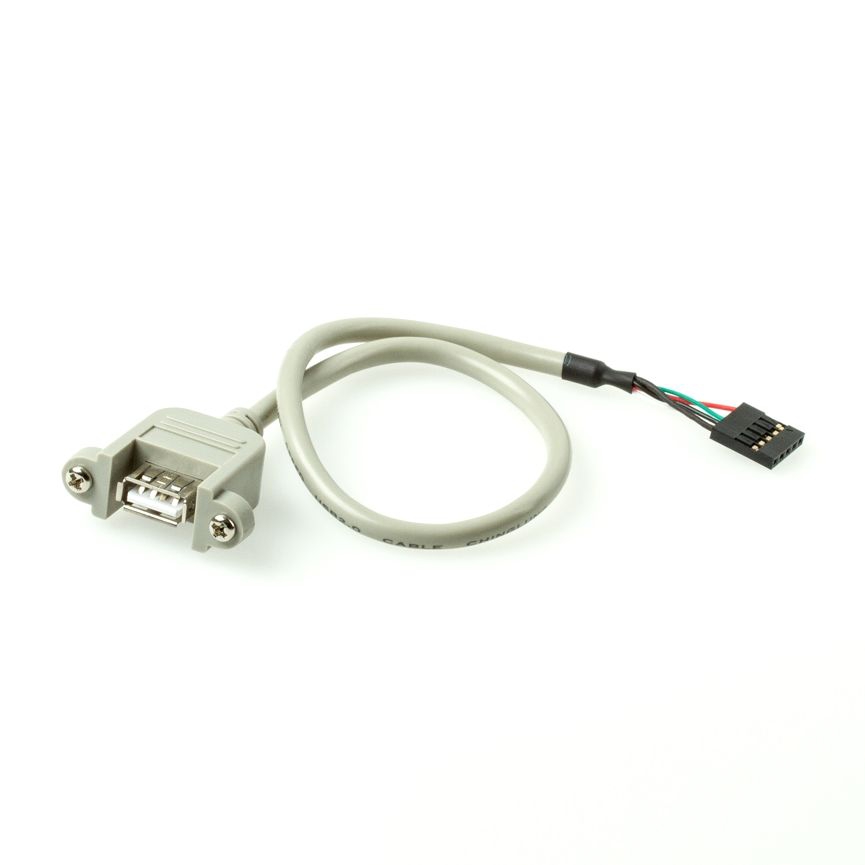

Panel Mount USB 2.0 cable A female screws to 5 pin board connector 35cm

DR. ZELLMER

€5.12*

816 in stock

PDF-Datasheet

Item no. CU-MA5-035

Panel Mount USB 2.0 cable, 35cm, connector USB A female (mountable with 2 screws) to motherboard connector (5 pin, grid 2.54mm), screws included, for USB 2.0 and 1.1, max. 480 Mbps

Highlights

UL cable material, ideal for exports
screws included
alternative lengths available

Technical data

USB 2.0 panel mounting cable
Connection 1: USB 2.0 A socket can be screwed on (recessed nuts on the side)

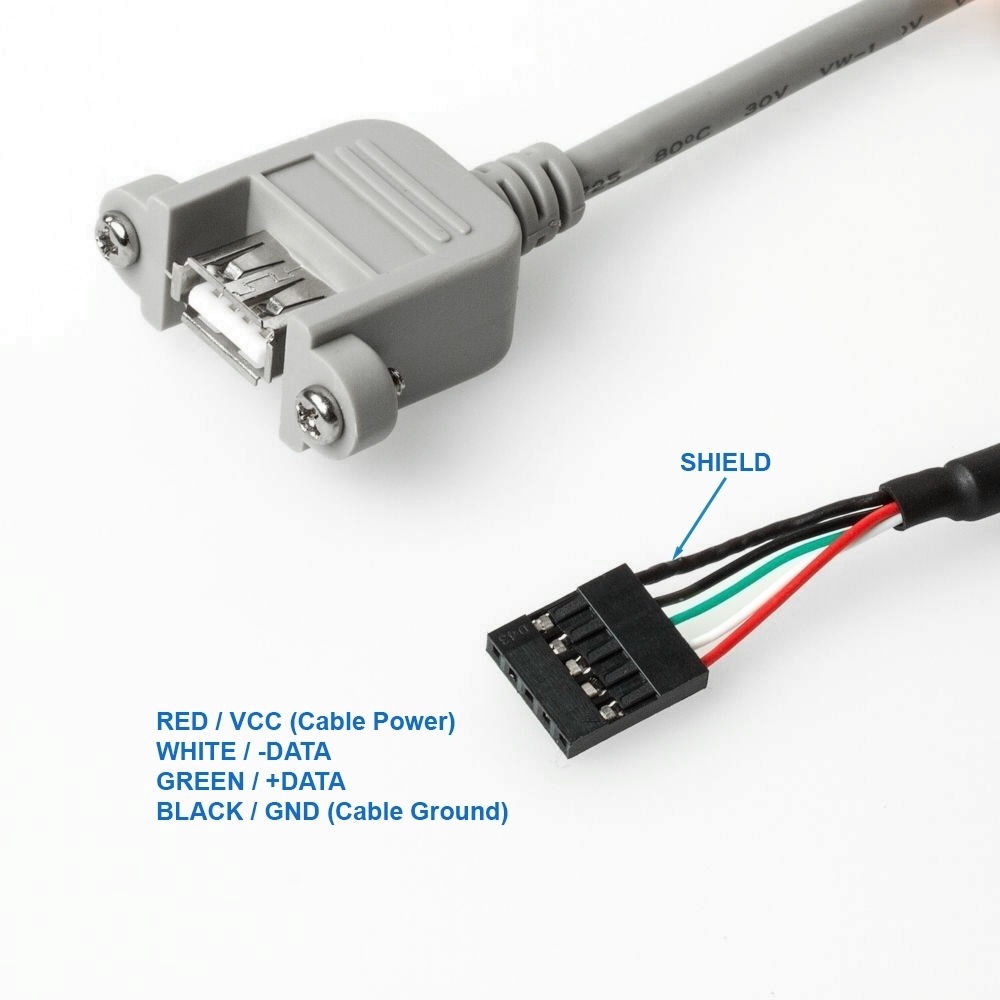

Connection 2: 5-pin board connector for post field (grid dimension 2.54mm)

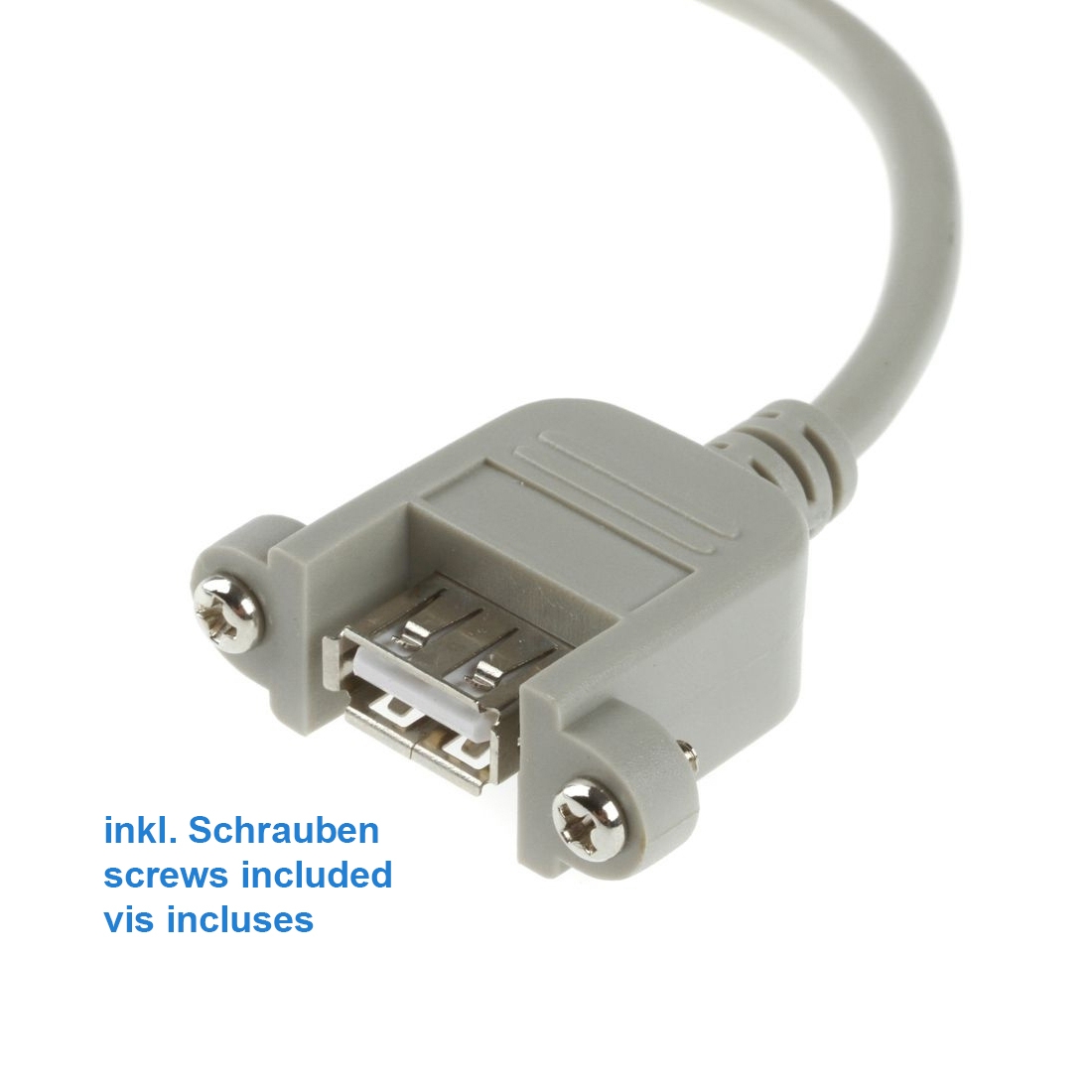

Scope of delivery: Panel cable incl. 2 screws (pre-assembled)

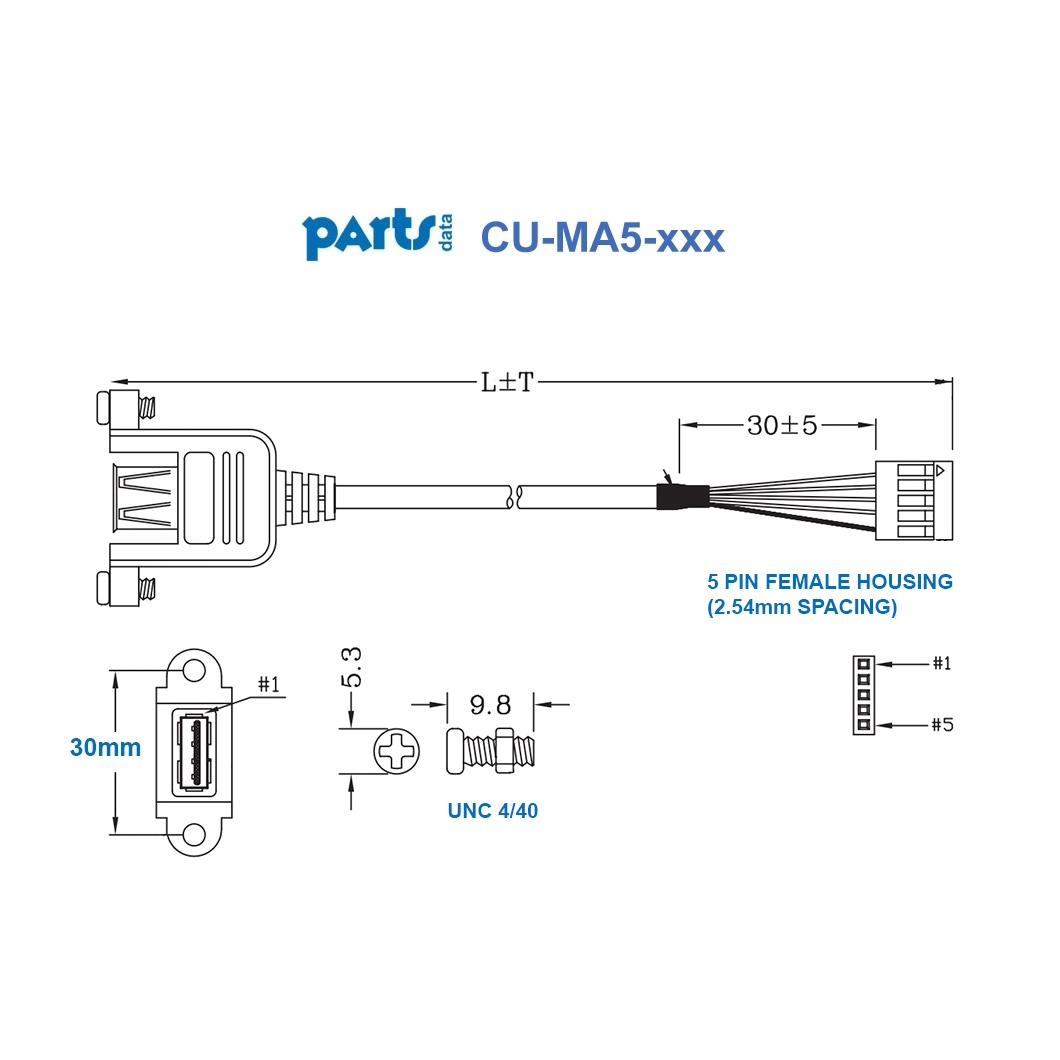

Screw type: UNC 4-40

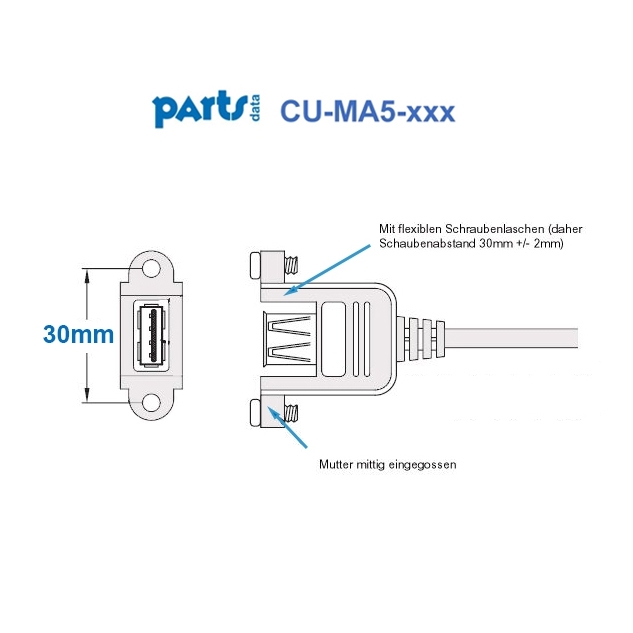

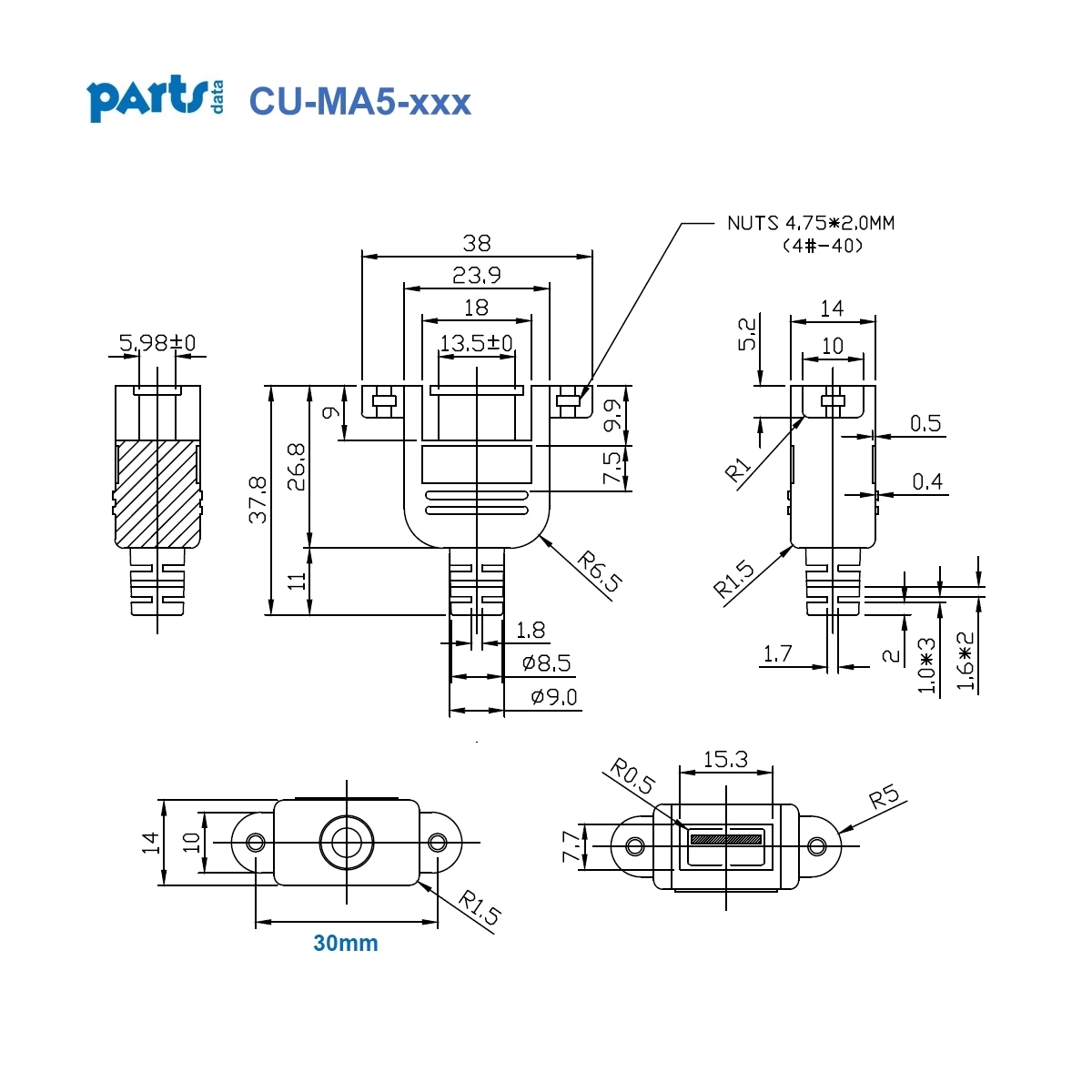

Screw spacing: 30mm (see drawing)
PREMIUM quality
UL 2725 cable material from brand manufacturer e.g. E238846 CHINGLUNG
Gold-plated contacts
Cable material with double shielding (foil shield + braided shield)
Data strands: 28 AWG/1P (twisted pair), copper (CU)
Power strands: 5V thicker with 24 AWG/2C, copper (CU)
USB 2.0 compatible + backwards compatible with USB 1.1
suitable for 480 MBit/s (high speed), 12 MBit/s (full speed) and 1.5 MBit/s (low speed)
Colour: grey-beige
Brand: HORXX industrial
Customs tariff no.: 85444290
Alternative product designations: Enclosure feed-through, cable with panel jack, rack mount, panel mount, USB REAR

Environmental protection

CE, WEEE, RoHS compliant
