USB 3.0 cable AB PREMIUM Quality 50cm

DELOCK

€5.95*

8 in stock

PDF-Datasheet

Item no. 85065

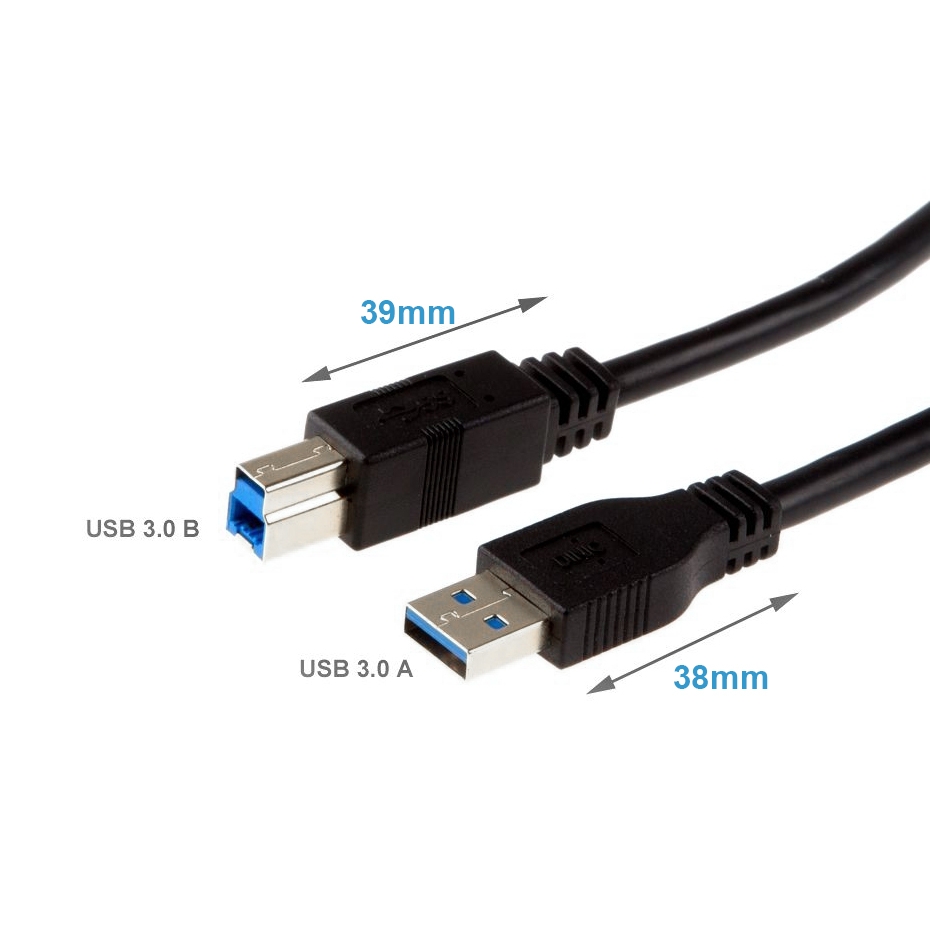

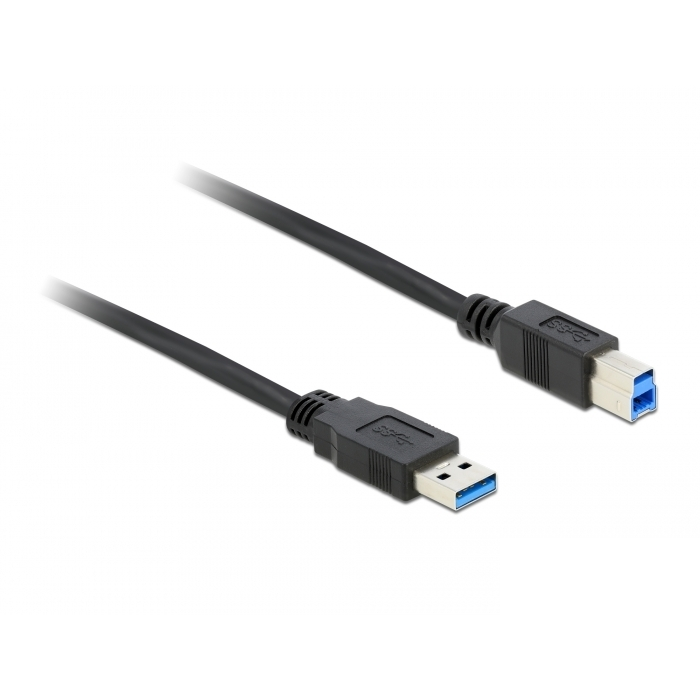

USB 3.0 cable, 50cm, PREMIUM quality, gold plated contacts, AWG24/28, double shielded, Super Speed Mode (max. 5Gbps), USB3 A plug male to USB3 B plug male, colour: black

Technical details

USB 3.0 cable type A-to-B
Length 0.5 metres | 50cm
Male USB 3.0 A plug to male USB 3.0 B plug
PREMIUM quality
gold-plated contacts
UL 20276 cable material (Copartner E119932-U), 80°C 30V VW-1
Super-Speed USB 3.0 compatible
shielding with drainwire
Data wires twisted pair
Wire gauges: AWG24 (power) AWG28 (data) = (1P*28# +D+AL+ Mylar)*2C+1P*28#+2C*24# +AL+B
Construction AWG24: 7/0.20 plus/minus 0.008mm (tinned copper)
Construction AWG28: 7/0.127 plus/minus 0.008mm (tinned copper)
Drainwire 30AWG 7/0.10 plus/minus 0.008mm (tinned copper)
Braided shielding: 16*7/0.10 plus/minus 0.008mm (tinned copper)
Foil shielding with 100% coverage and 25% overlap
Outer diameter: 6.00 plus/minus 0.15mm
Contact carrier in blue according to USB 3.0 standard
Suitable for data transfer rates of up to 5.0 Gbit/s
Double shielding (foil shield and braided shield)
Colour: black
CE, WEEE, RoHS compliant
