Flexible USB 3.0 cable quality PREMIUM+ with 2 ferrite cores INDUSTRIAL VERSION 50cm

DR. ZELLMER

€13.72*

47 in stock

PDF-Datasheet

Item no. BU-UF-05

Flexible USB 3.0 cable, 50cm, quality PREMIUM+ with 2 ferrite cores, AWG 22/28, double shielded, Super Speed Mode (max. 5Gbps), USB3 A plug male to USB3 B plug male, colour: anthracite blue

Highlights

short and flexible USB 3.0 cable
innovative, highly flexible cable jacket material
feels like rubber
good layability and small bending radii
thick copper cores: Power AWG 22

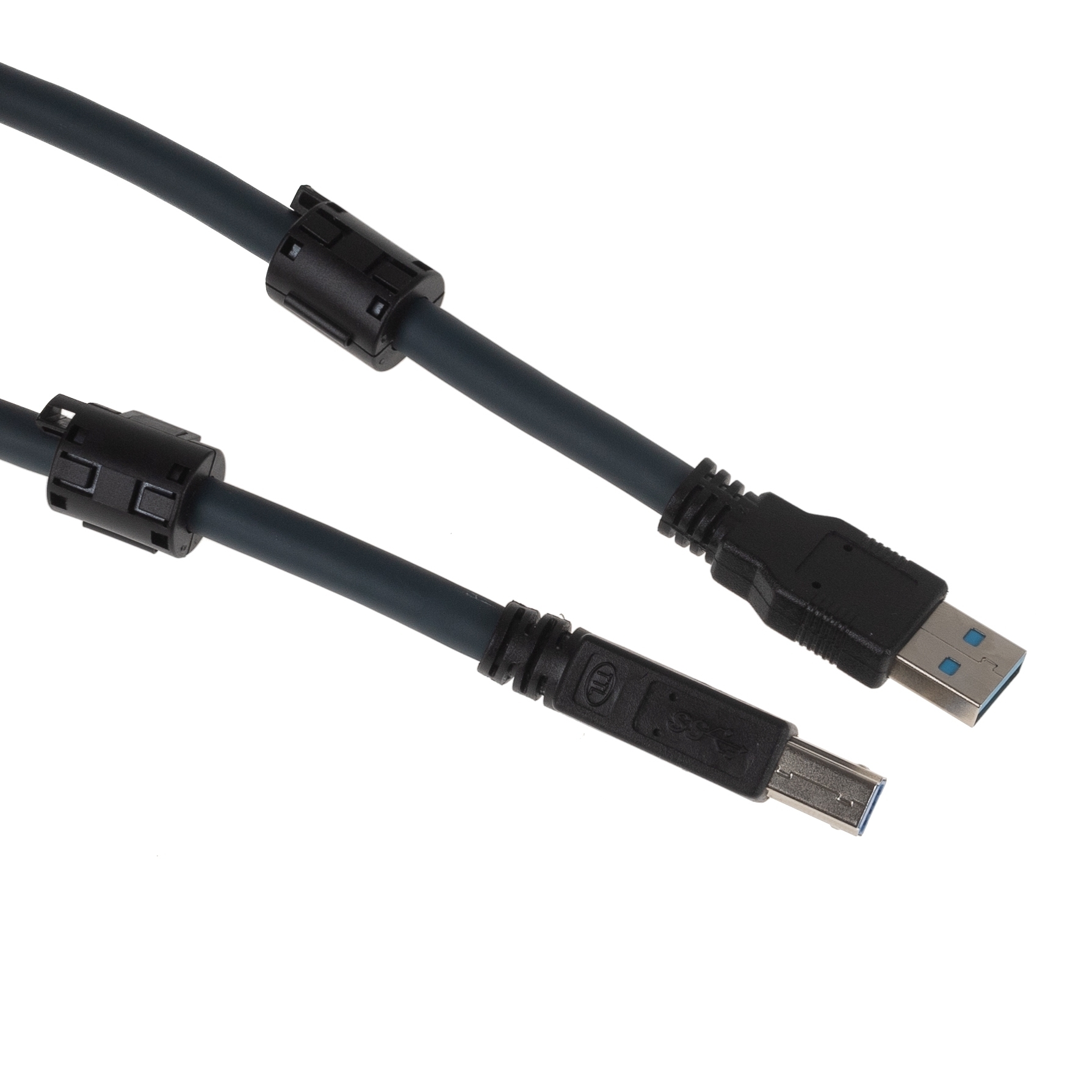

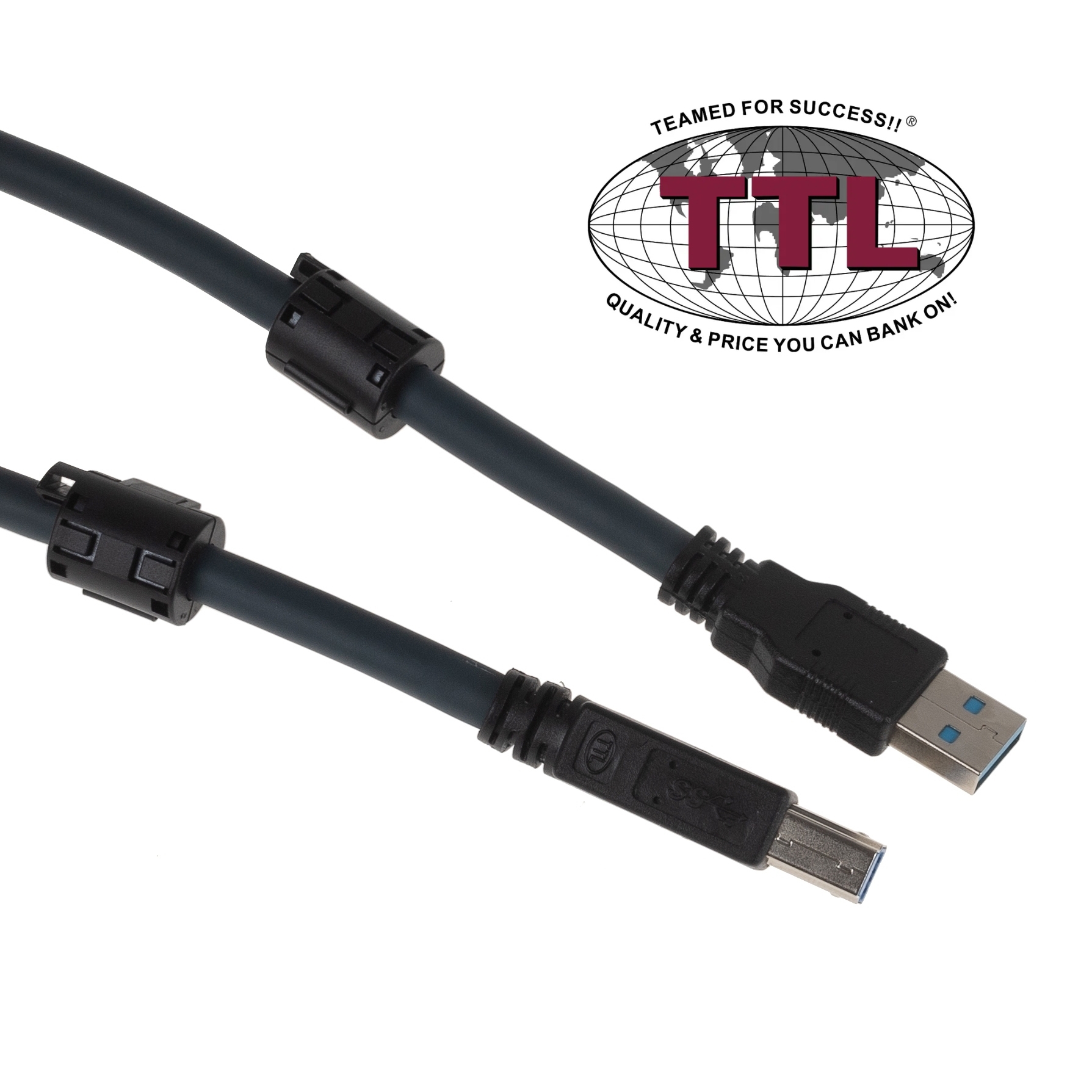

2 ferrite cores

Technical details

flexible USB 3.0 cable AB
PREMIUM+ quality
with 2 ferrite cores (can be positioned alternatively)

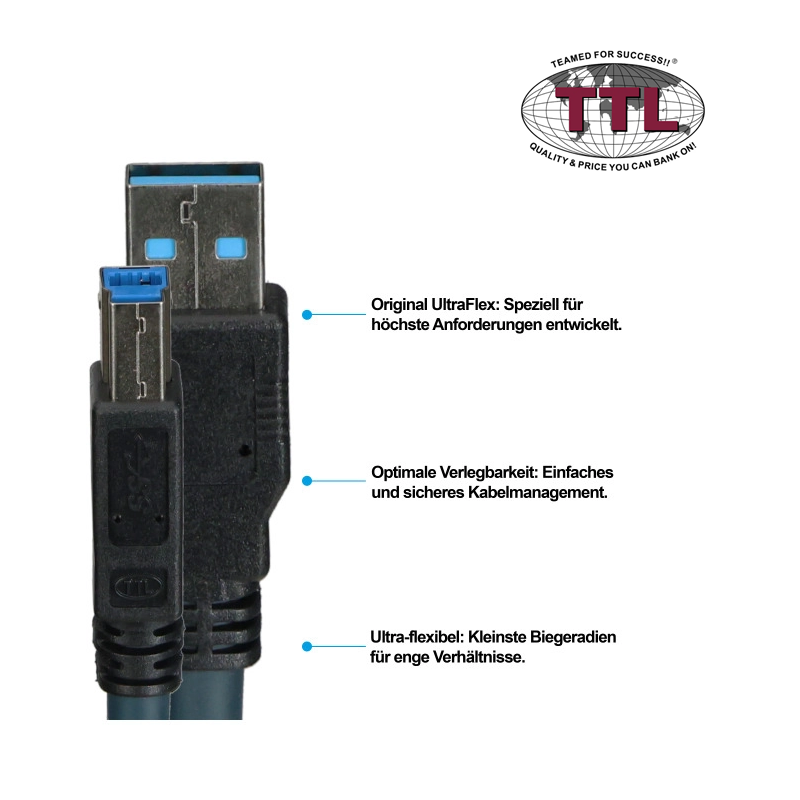

Innovative, highly flexible cable jacket material: Polyolefin UltraFlex
for good layability and small bending radii (up to 10mm)
significantly better durability compared to standard cables
up to 8500 movement cycles under load
double shielding (foil shield and braided shield)

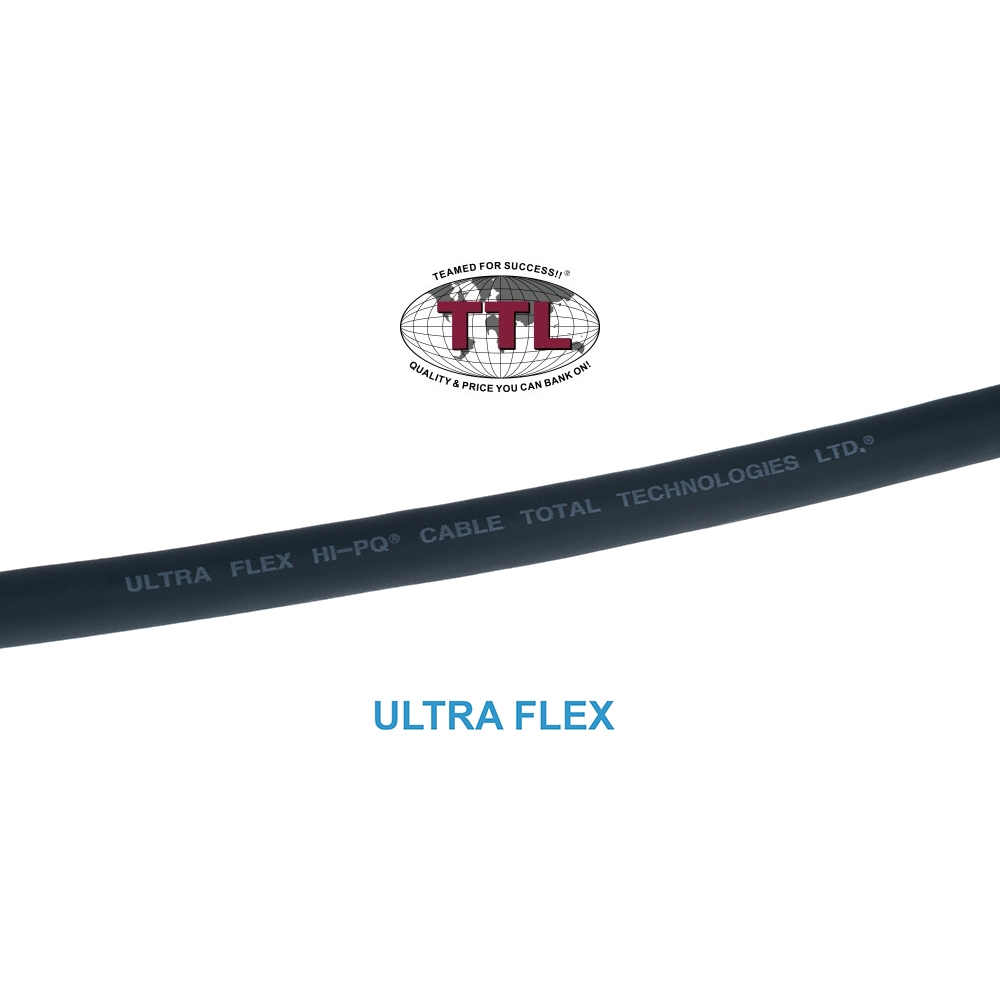

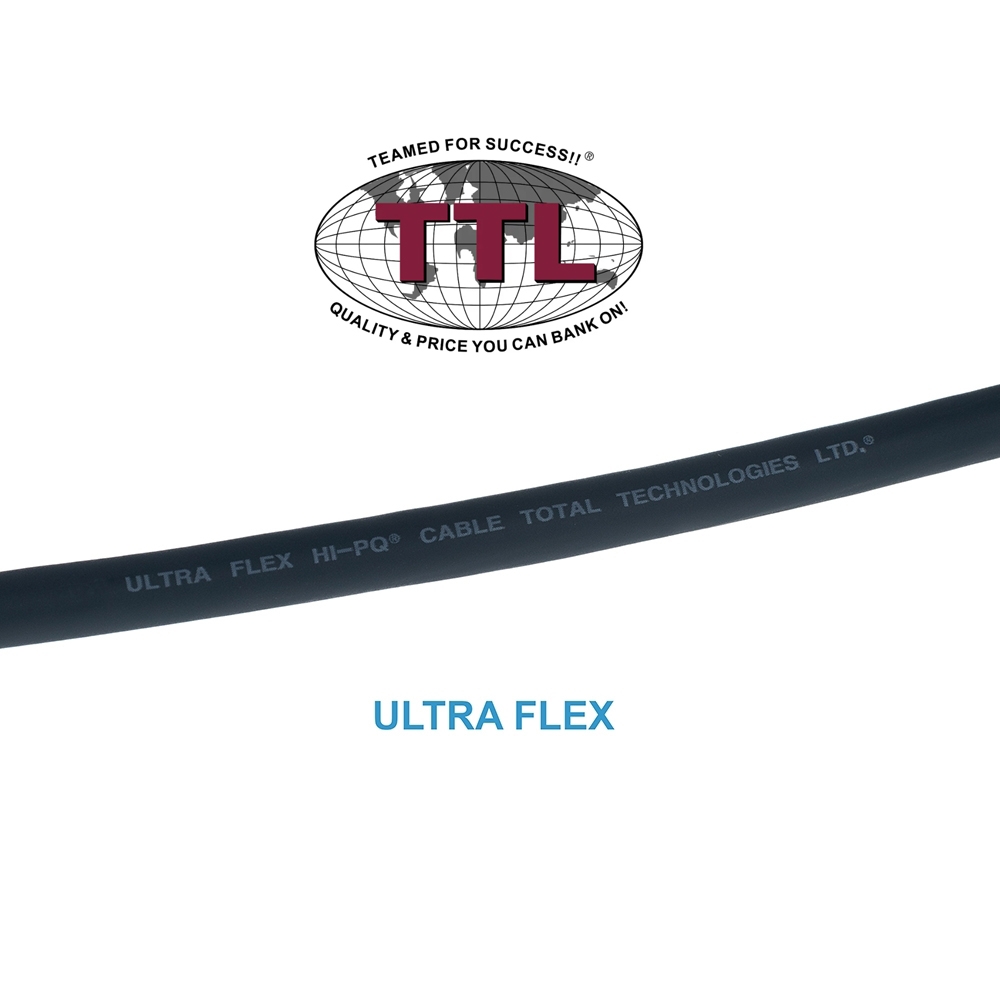

cable material: ULTRA FLEX HI-PQ CABLE TOTAL TECHNOLOGIES LTD
cross section: 28AWG/1P 22AWG/2C (i.e. extra thick BusPower cores), copper
outer diameter: 7mm plus/minus 0.15mm

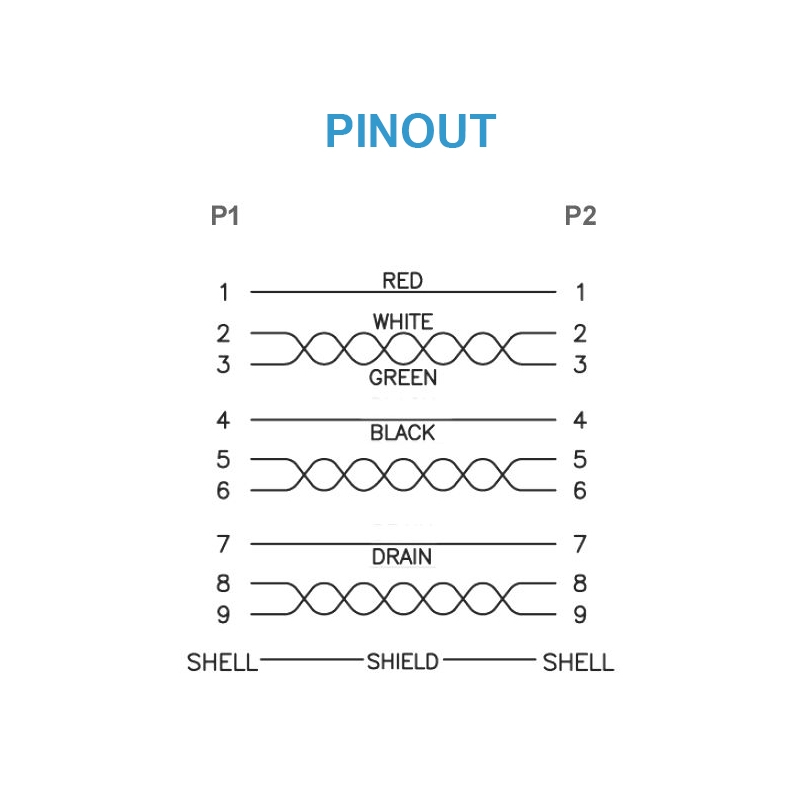

data strands twisted in pairs
suitable for data transfer rates of up to 5.0 Gbit/s

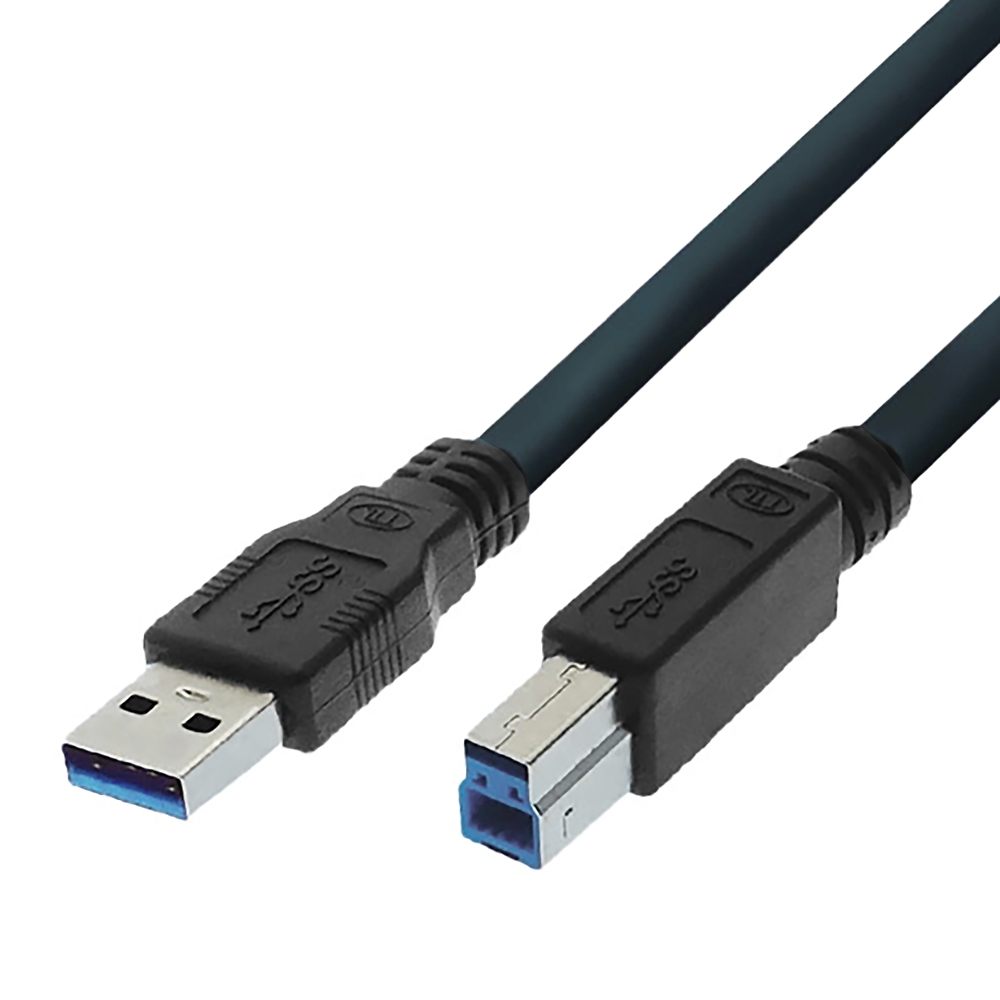

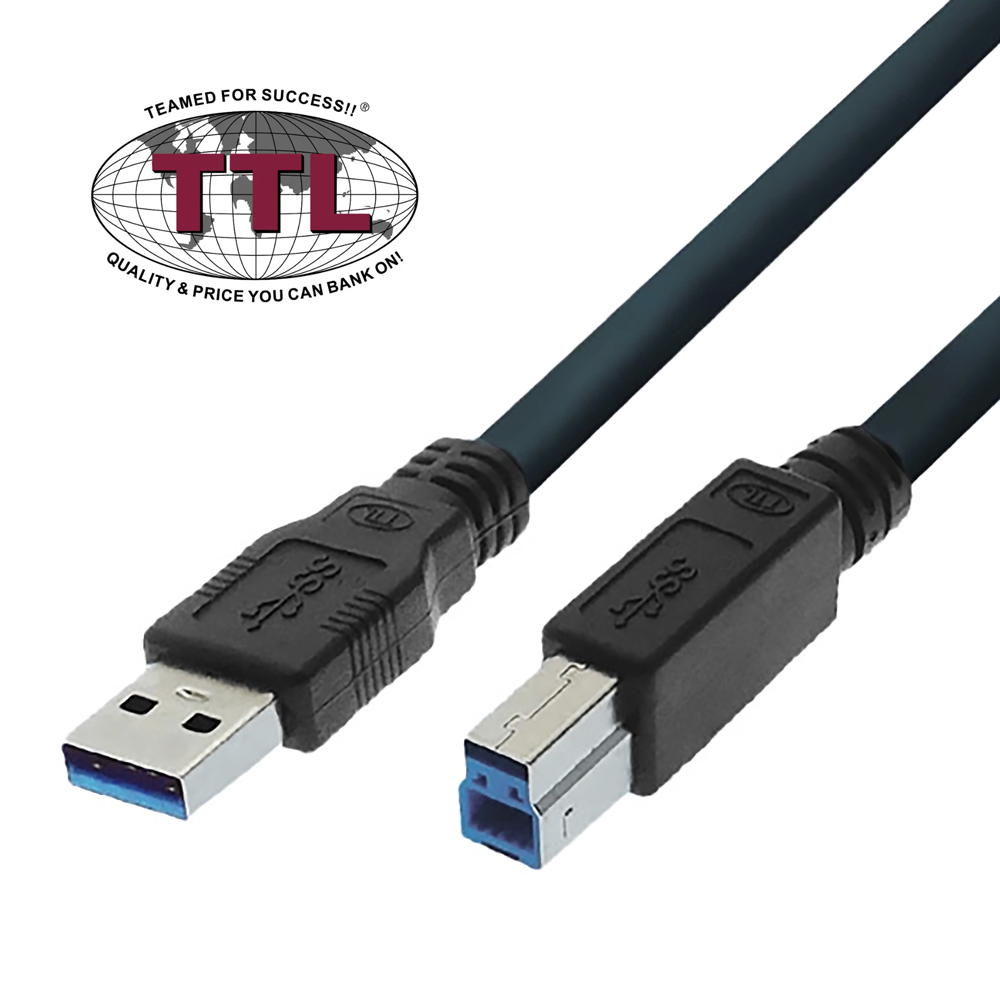

USB 3.0 A male connector to USB 3.0 B male connector
contact carrier in blue in accordance with USB 3.0 standard
colour: black plugs and anthracite-blue cable material
USB 3.0 B plug in particularly slim design
SuperSpeed USB 3.0 compatible
WEEE, compliant with RoHS Directive 2011/65/EU & California Prop.65 compliant
