Cable DB15 male to female 5m

EFB

€11.40*

18 in stock

PDF-Datasheet

Item no. C2-15-05

Cable DB15 male to DB15 female, 5m, screws on both sides, e.g. for joystick extension

Technical data

15-pin data cable male/female
also called X.21 cable (X21)
plugs: DB15 male to DB15 female
with long screws on both sides
screw type UNC 4-40
moulded high quality plugs
gold-plated contacts
shielded (aluminium foil shield)
cable outer diameter approx. 6mm

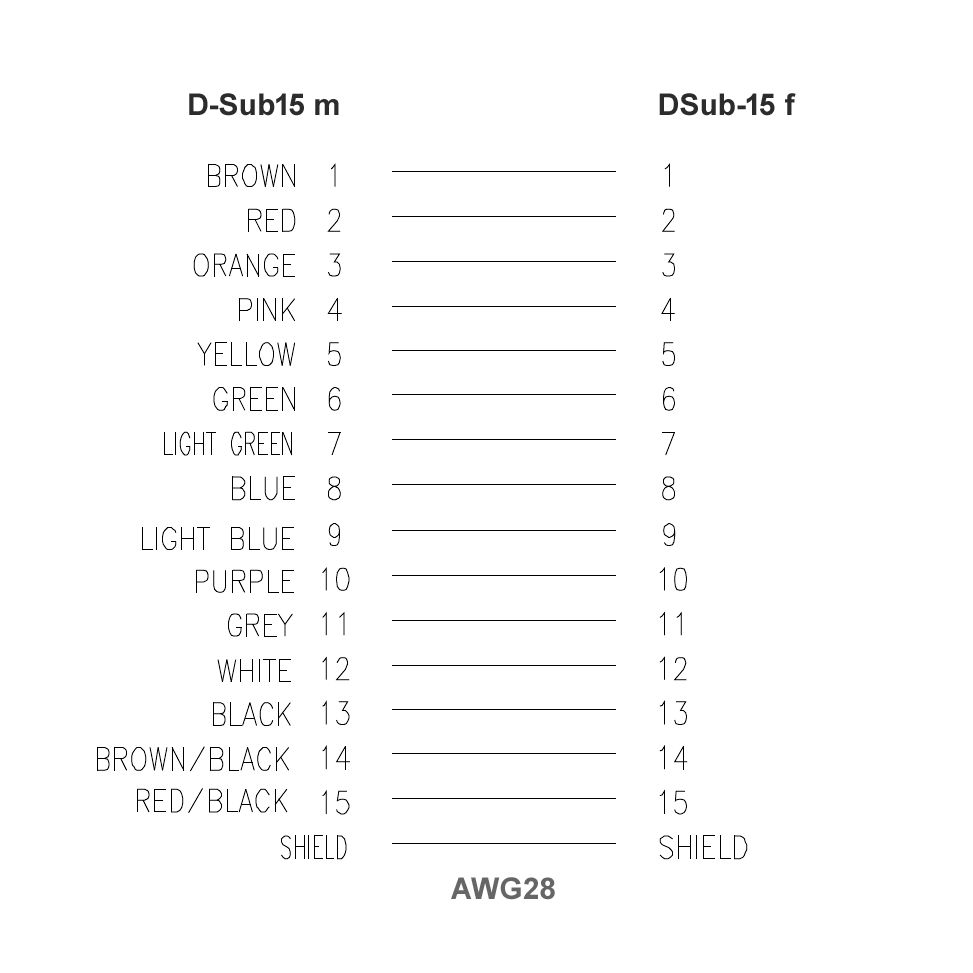

all 15 contacts connected 1-to-1
colour: grey
15x AWG 28 (CU)
substitute areas: metrology, optical industry, automotive, automotive measuring instruments, automation
CE, WEEE, RoHS compliant
