Item no.
CU-30-BK

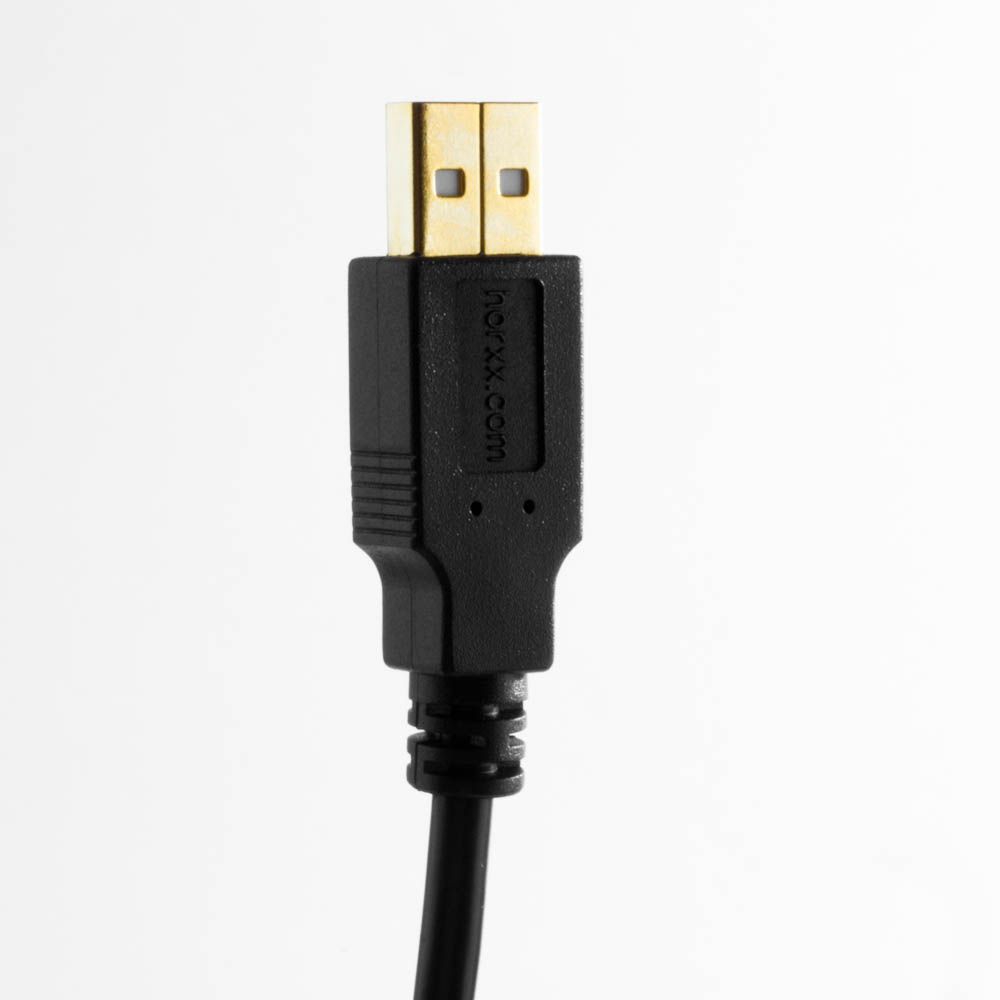

USB cable, 3m, gold plated connectors, for USB 2.0 and USB 1.1, high quality (28AWG1P / 24AWG2C), USB plug A to USB plug B (USB standard), colour: black
Key features
- USB 2.0 connection cable type A to B
- PREMIUM quality
- double shielding with foil shield + braided shield
- shielded connectors
- copper cores (CU)
- core thicknesses: AWG28/1P + AWG24/2C (i.e. thicker 5V power cores)
- data wires twisted pair
- gold-plated plugs and contacts
- UL cable material e.g. E324703 UL AWM STYLE 2725 80°C 30V VW-1
- connector 1: USB 2.0 plug type A male (system side / upstream)
- connector 2: USB 2.0 plug type B male (to peripheral device / downstream)
- USB 2.0 compatible + downward compatible with USB 1.1
- suitable for 480 MBit/s (high speed), 12 MBit/s (full speed) and 1.5 MBit/s (low speed)
- cable diameter approx. 4.5mm
- colour: black
- customs tariff no.: 85444290, Made in PRC
- CE, WEEE, RoHS compliant
