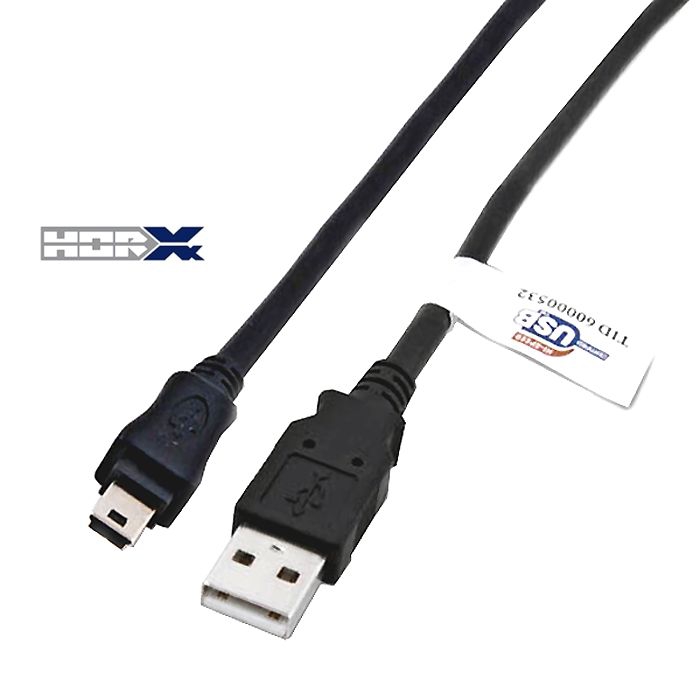

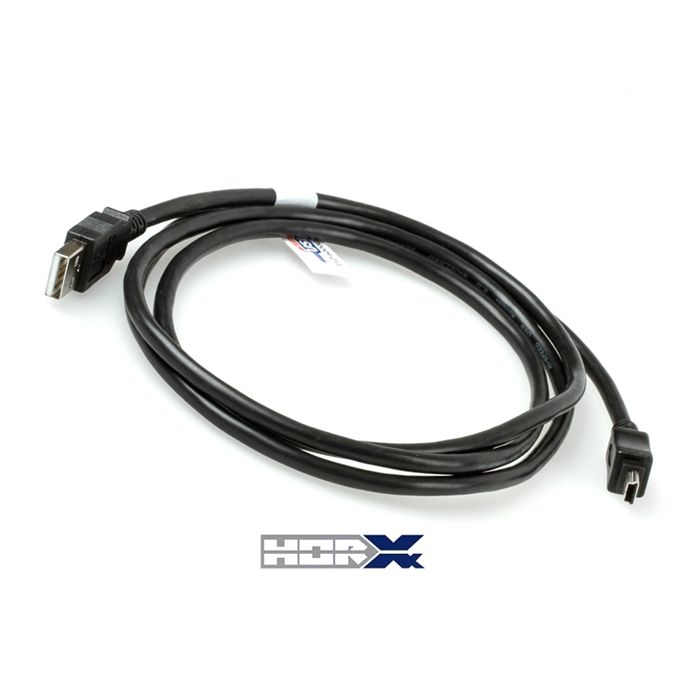

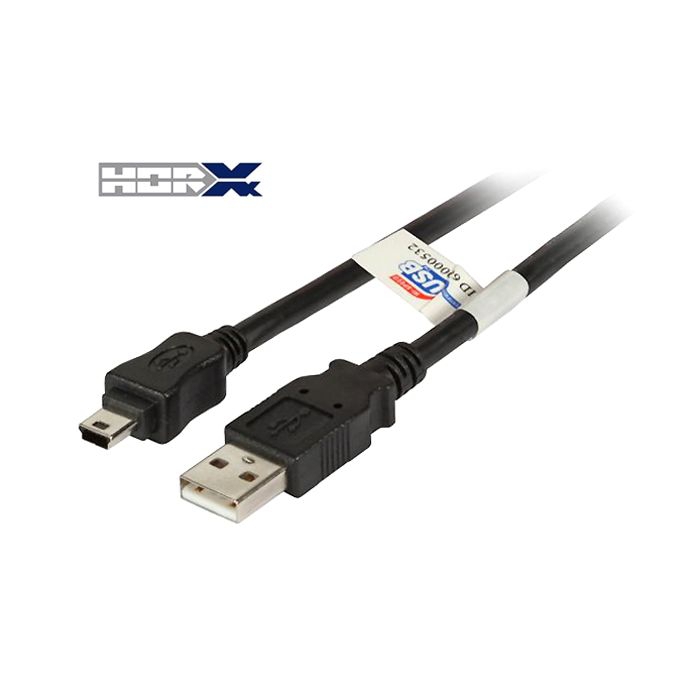

USB cable A to Mini B with thicker power lines PREMIUM+ certified 1.8m

DR. ZELLMER

€7.95*

219 in stock

PDF-Datasheet

Item no. CU-B05-18-C

Mini B USB cable 1.8m, PREMIUM+ quality, certified USB 2.0 high speed cable (www.usb.org TID 60000532), USB A male to Mini B (5pins) male, 28AWG/1P 20AWG/2C (stronger 5V lines), double shielded (braid cover degree 80%), diameter 5mm, black

Key features

USB 2.0 cable A to Mini B
certified cable (www.usb.org, with TID no.)
very high quality PREMIUM+

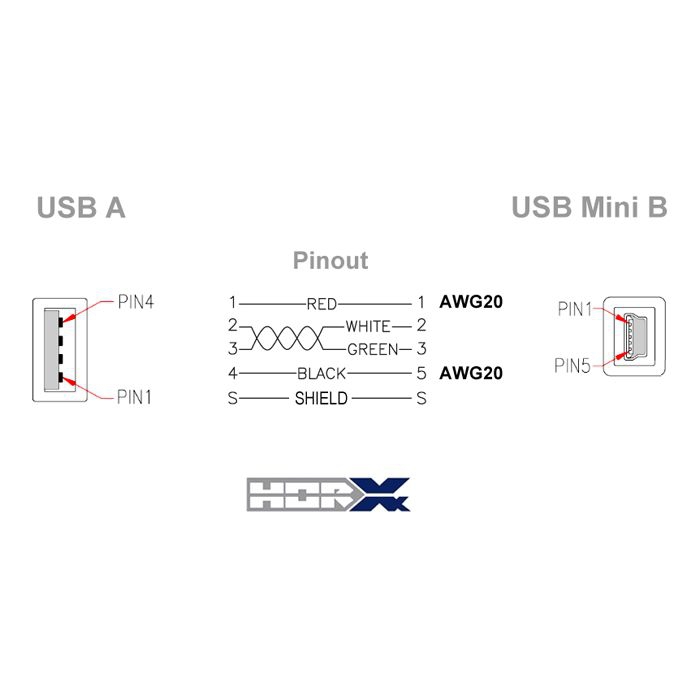

thicker 5V power lines: AWG20/2C
double shielded
data lines AWG28/1P (twisted pair)
shielded plugs
30µm gold plating on contacts
operating temperature: -20°C to +75°C
storage temperature: -40°C to +85°C
cable diameter about Ø 5mm
USB 2.0 plug A male (upstream/to PC)

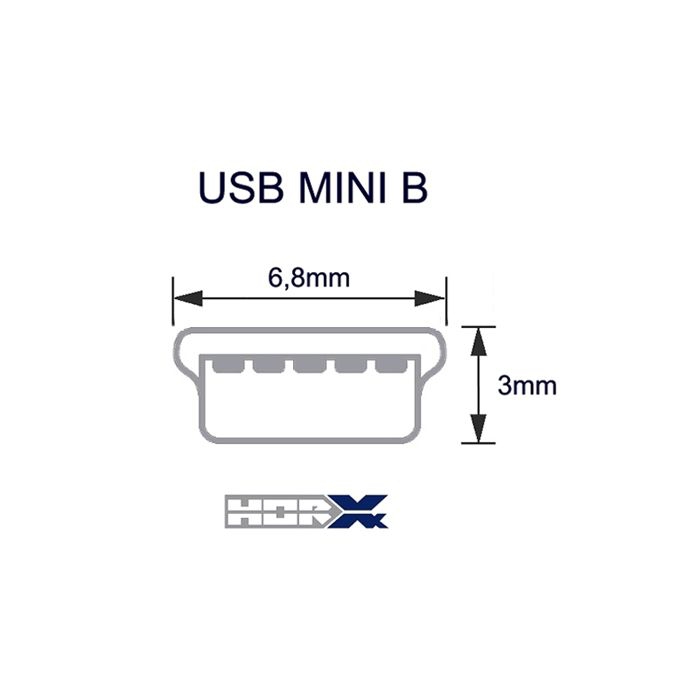

small USB 2.0 Mini B plug male, 5 pins (downstream/to USB device)
compatible USB 2.0, backward compatible USB 1.1
for 480 Mbps (high speed), 12 Mbps (full speed) and 1.5 Mbmps (low speed)
colour: black
length: 1,8 meter
CE, WEEE, RoHS compliant
