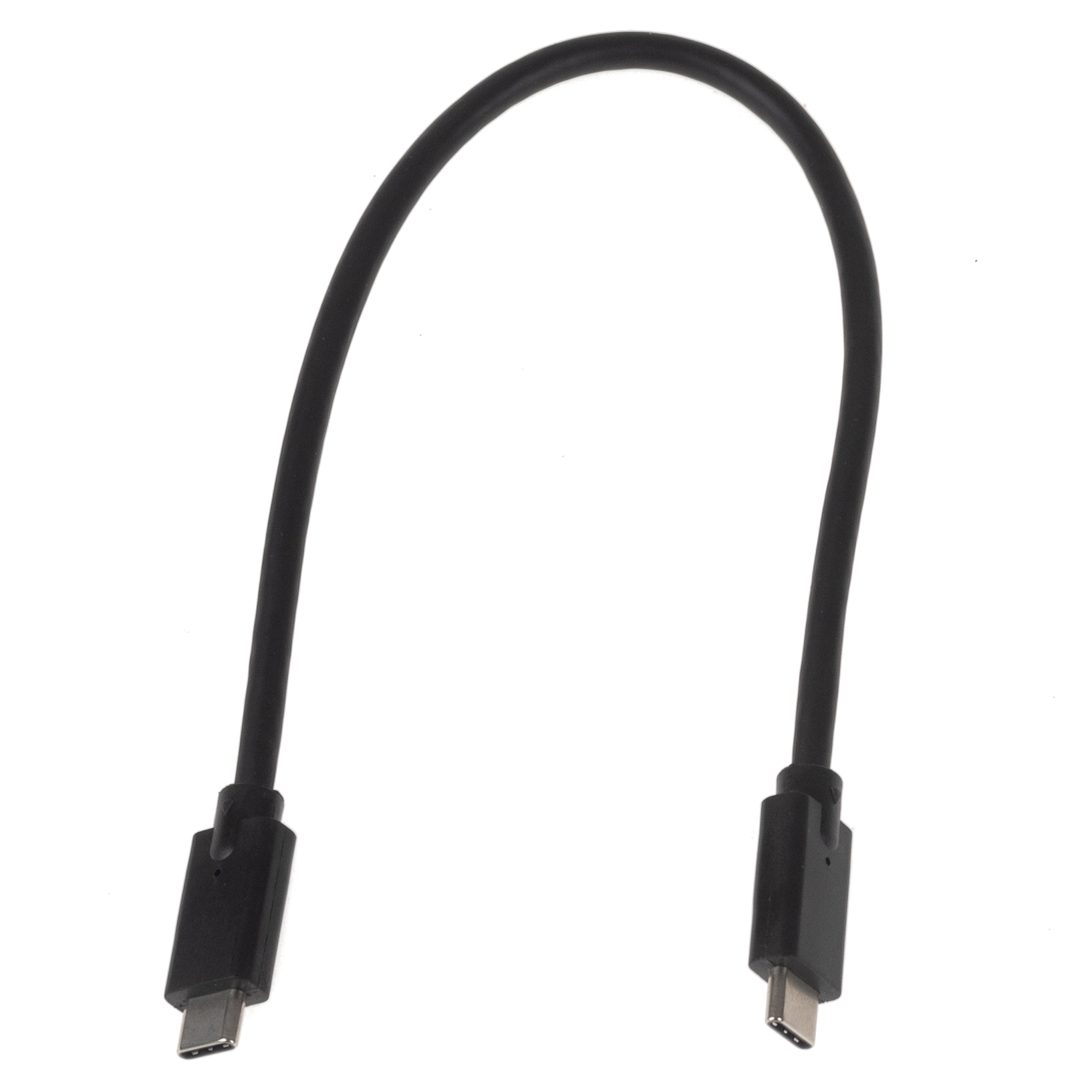

USB 3.2 Gen.2x2 cable with 2x Type-C™ male 20Gbps 5A 30cm

INLINE

€10.70*

31 in stock

PDF-Datasheet

Item no. HX-C22-03

USB 3.2 Gen.2x2 cable with 2x Type-C™ male, data transfer rates up to 20Gbps (dual lane), Power Delivery up to a charging current of 5 Ampere, 30cm

Highlights

up to 20 Gbps speed (dual lane)
USB Power Delivery 5A
USB 3.2 Gen 2x2 is twice as fast as USB 3.2 Gen 2 (10 Gbps)

Technical details

short USB 3.2 Gen 2x2 connection cable

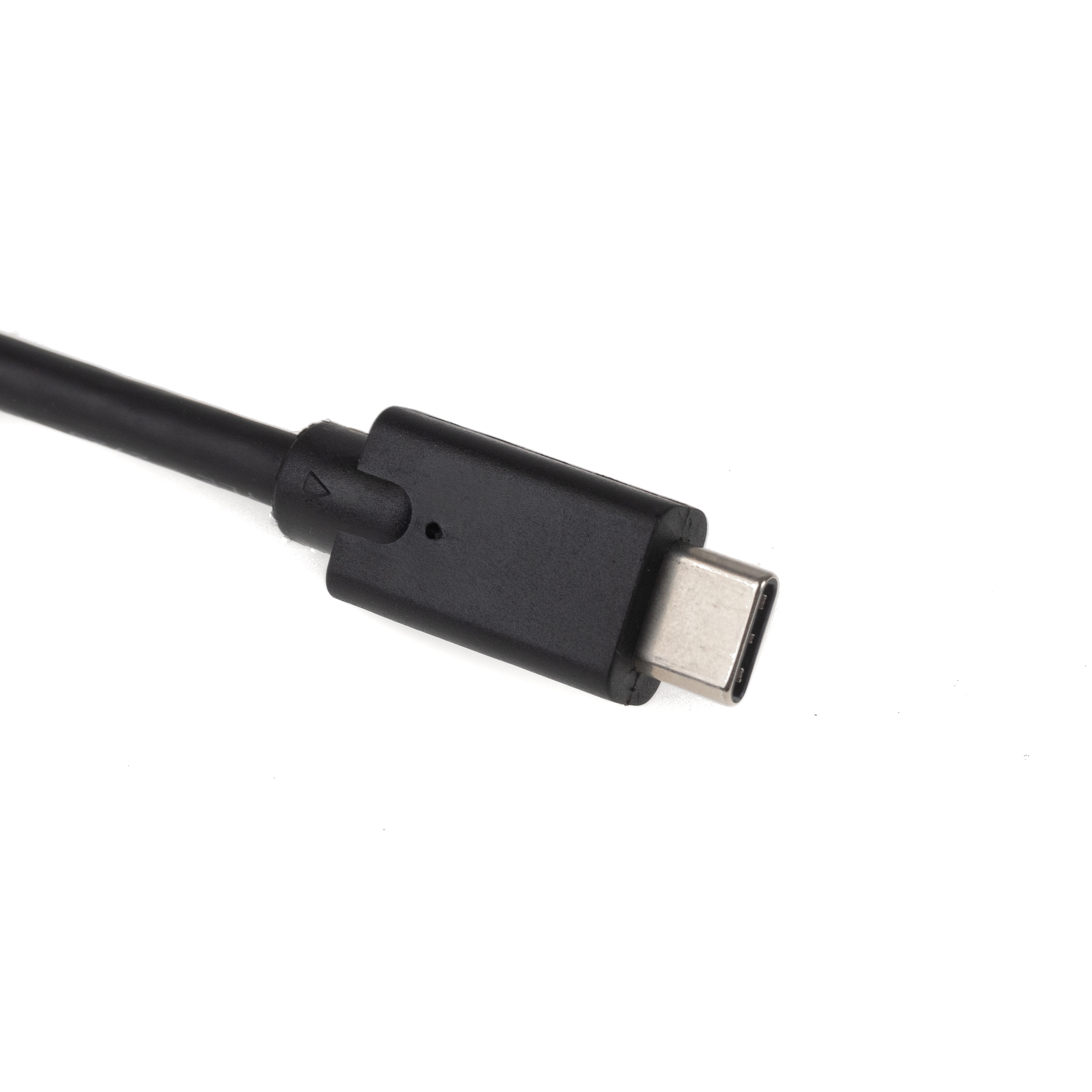

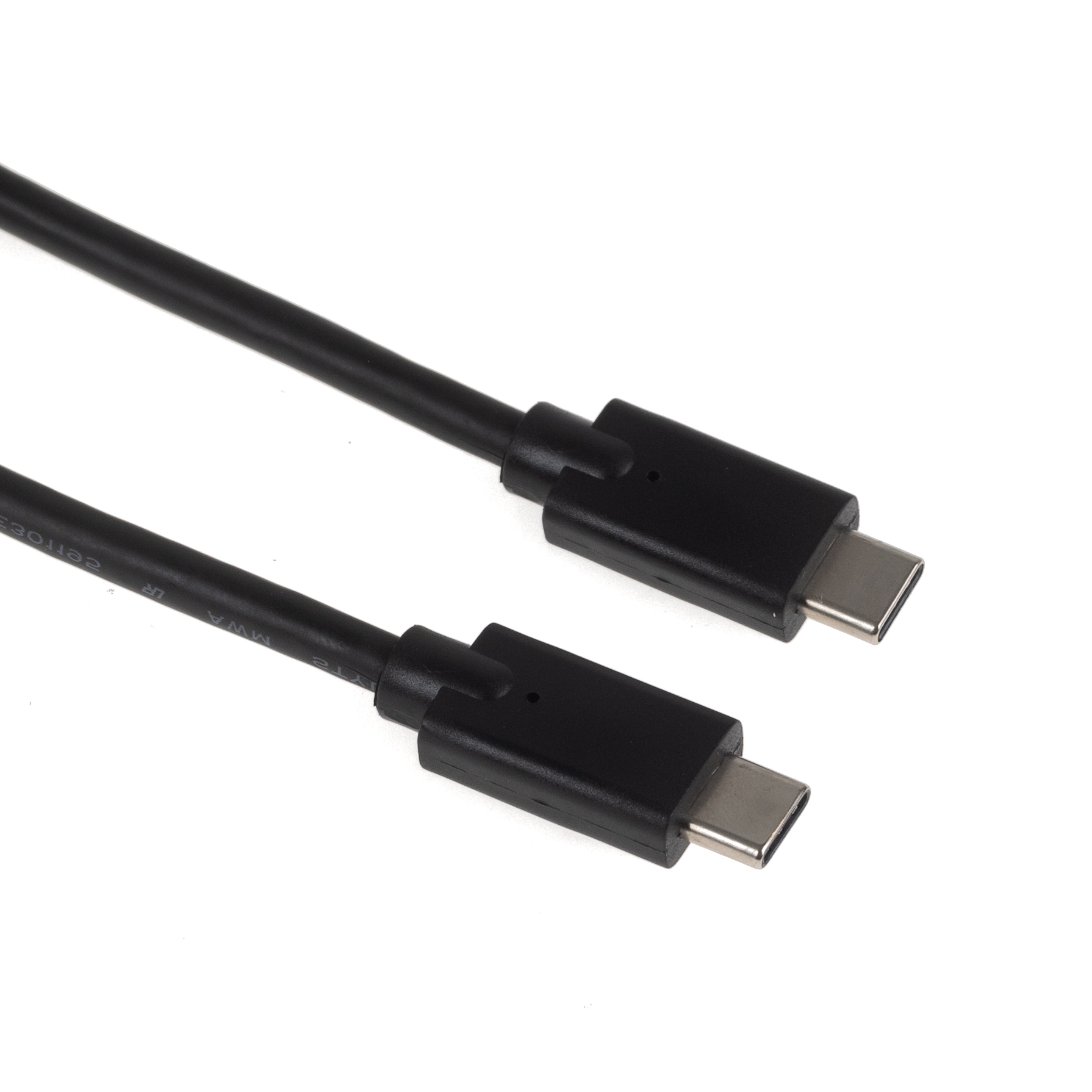

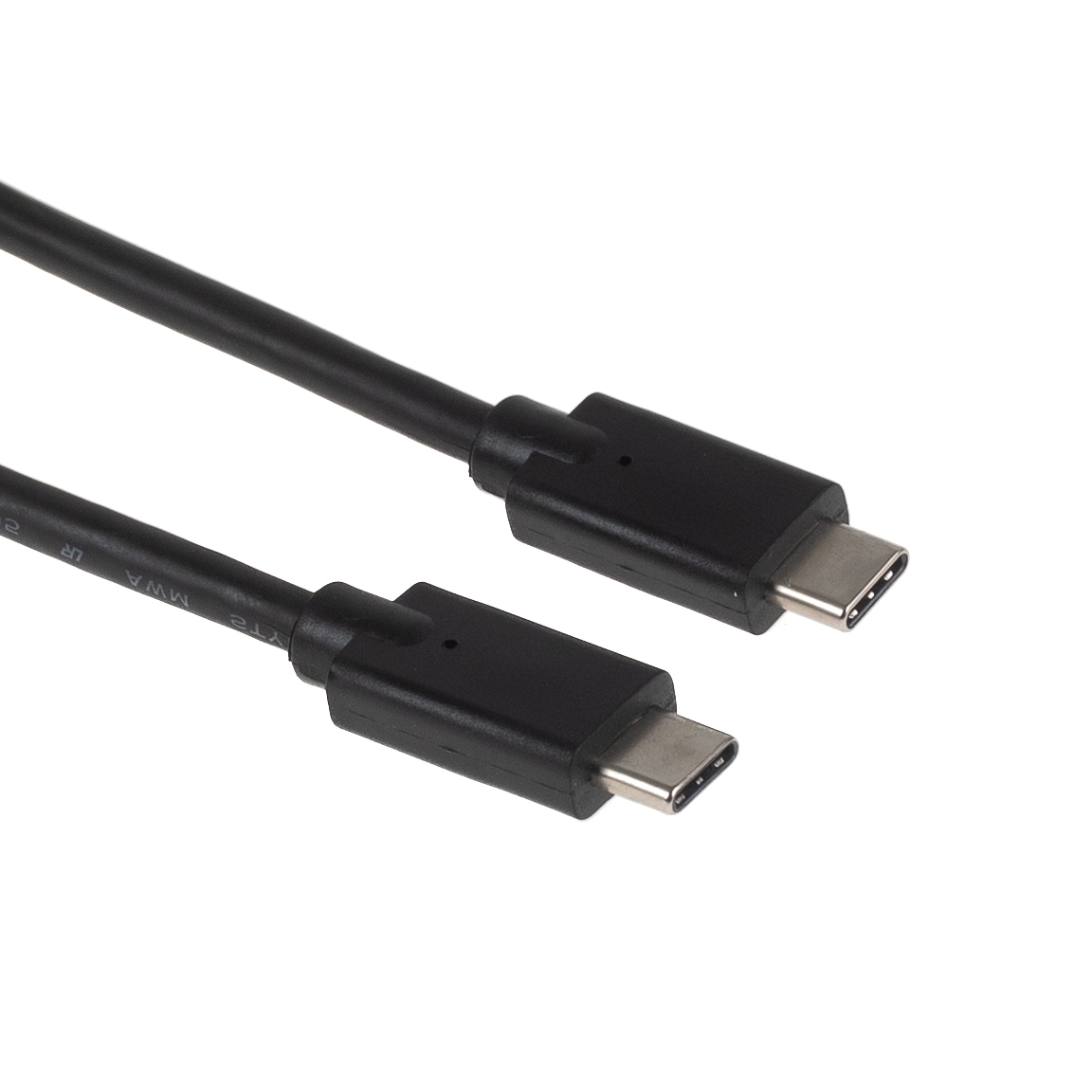

Type C connector (Type-C™) on both sides, male
Length: extra short approx. 0.3 metres | 30cm
suitable for data transfer rates up to 20 Gbps (dual lane)
supports USB Power Delivery up to a charging current of 5 amps (at max. 20V = 100W)
in accordance with IEC 62680-1-3:2021 standard
Quality: PREMIUM
UL cable material (e.g. E340033)
Data AWG32, Power AWG22 (copper, CU)
twisted wire pairs
triple shielding (braiding + foils)
shielded connectors
video signals up to 3840x2160 (60Hz) are supported
cable diameter approx. 4.5±0.2mm
can be used as a data cable and charging cable
colour: black

Environmental protection *

RoHS-compliant: Product complies with EU environmental protection directives 2011/65/EU and RoHS 2015/86 ("Restriction of Hazardous Substances")
WEEE compliant (DE65810611): Waste of Electrical and Electronic Equipment - The WEEE directive regarding recycling and reutilisation makes a significant contribution to environmental protection.
REACH-compliant procurement process ("Registration Evaluation Authorisation and Restriction of Chemicals")
Product packaging made of cardboard (no plastic)
CE: all European standards are complied with

*All information on environmental protection is based on information provided by the manufacturer/supplier.
