USB 3.2 Gen.2x2 cable with 2x Type-C™ male 20Gbps 5A 150cm

INLINE

€15.47*

The product is currently not available. We will be happy to notify you by email when the product is back in stock.

To continue, enter the characters shown above

Item no. HX-C22-15

USB 3.2 Gen.2x2 cable with 2x Type-C™ male, data transfer rates up to 20Gbps (dual lane), Power Delivery up to a charging current of 5 Ampere, 1.5m

Highlights

up to 20 Gbps speed (dual lane)
USB Power Delivery 5A
USB 3.2 Gen 2x2 is twice as fast as USB 3.2 Gen 2 (10 Gbps)

Technical details

short USB 3.2 Gen 2x2 connection cable

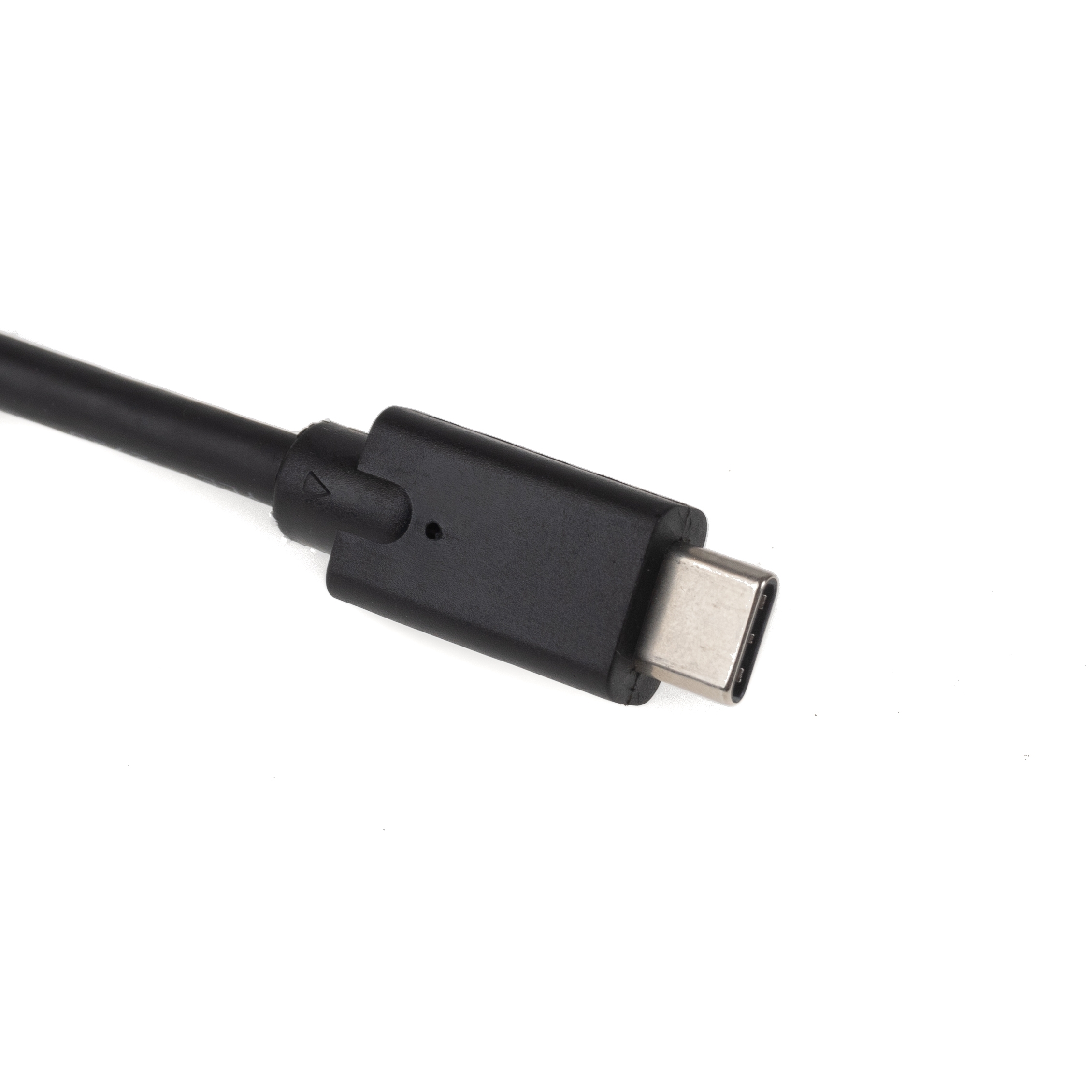

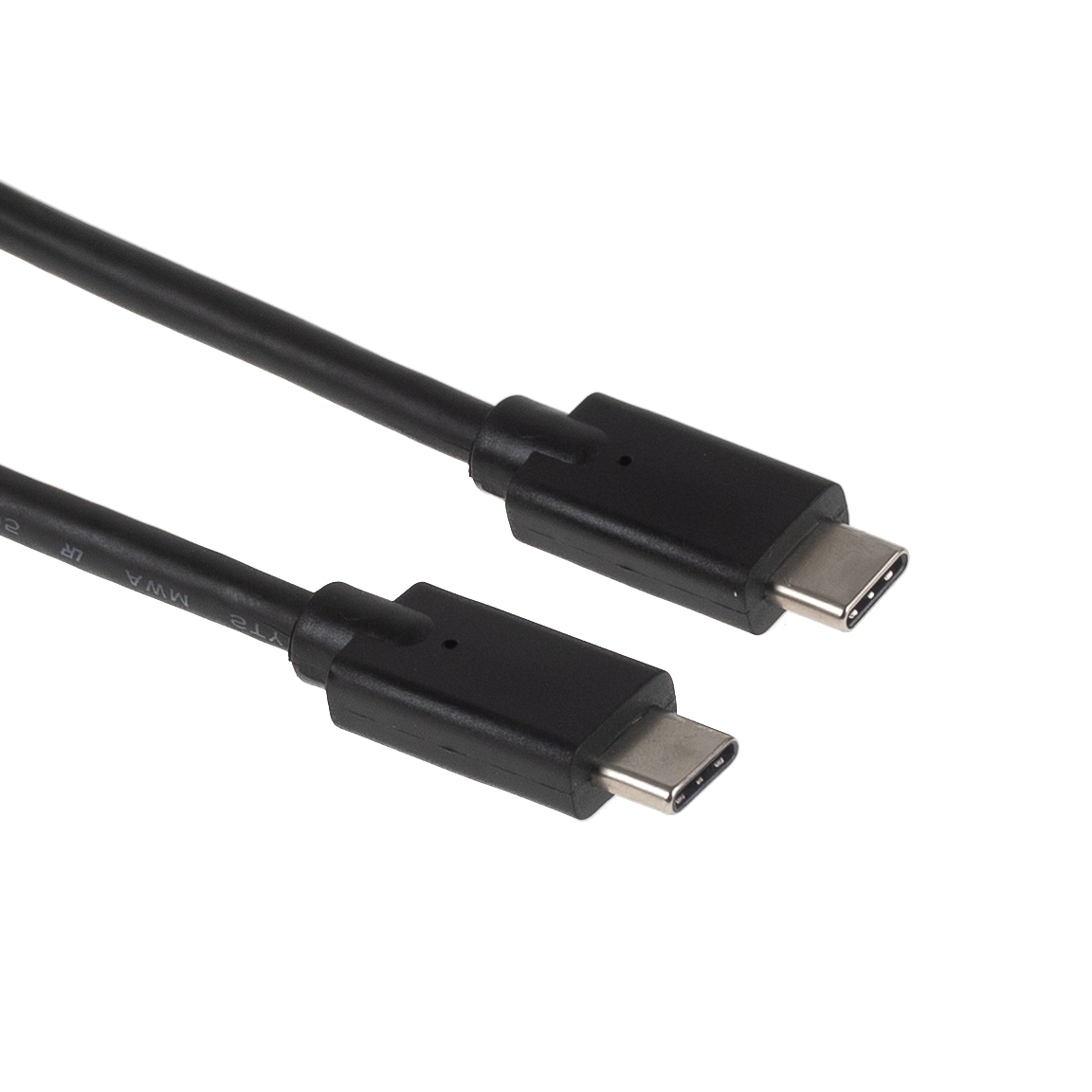

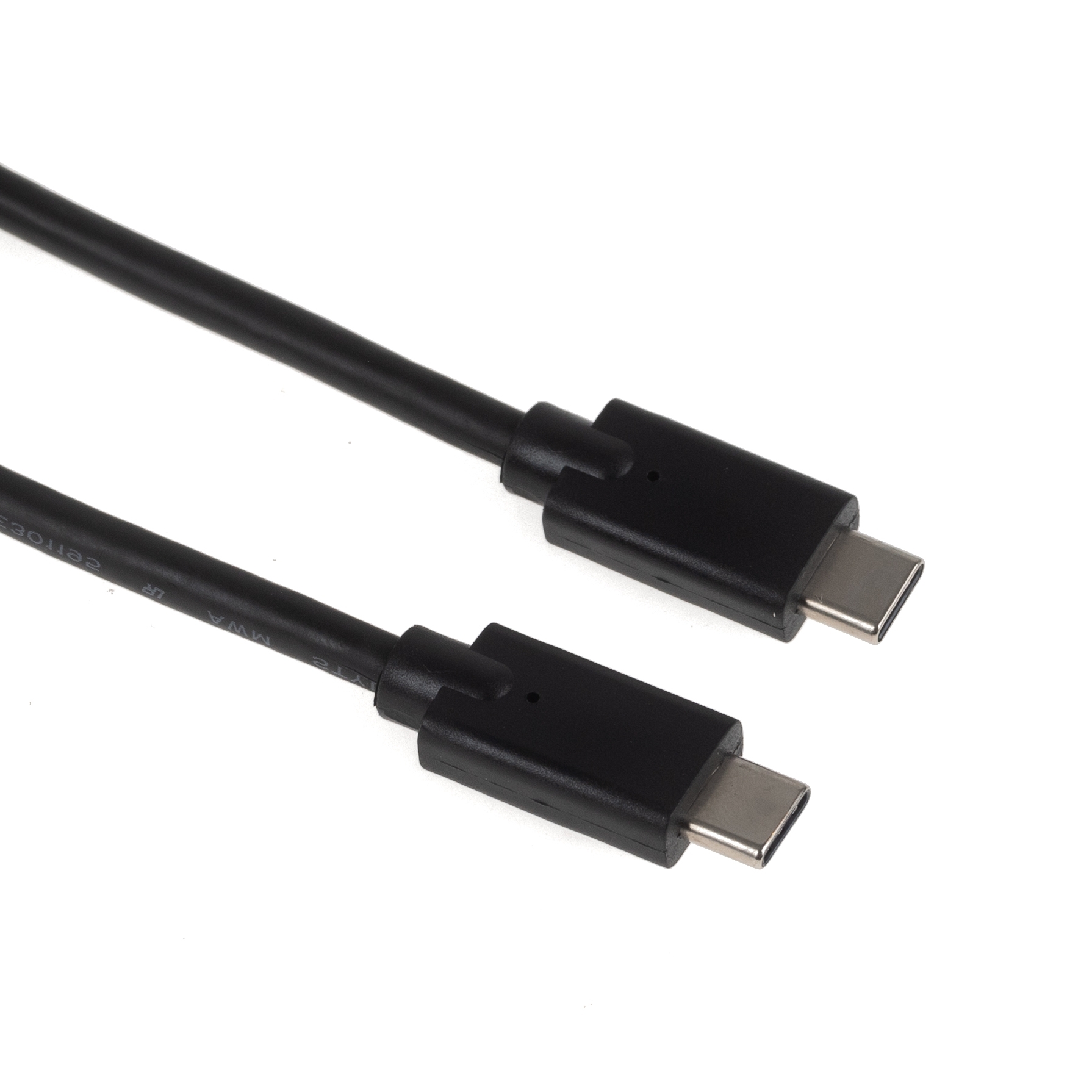

Type C connector (Type-C™) on both sides, male

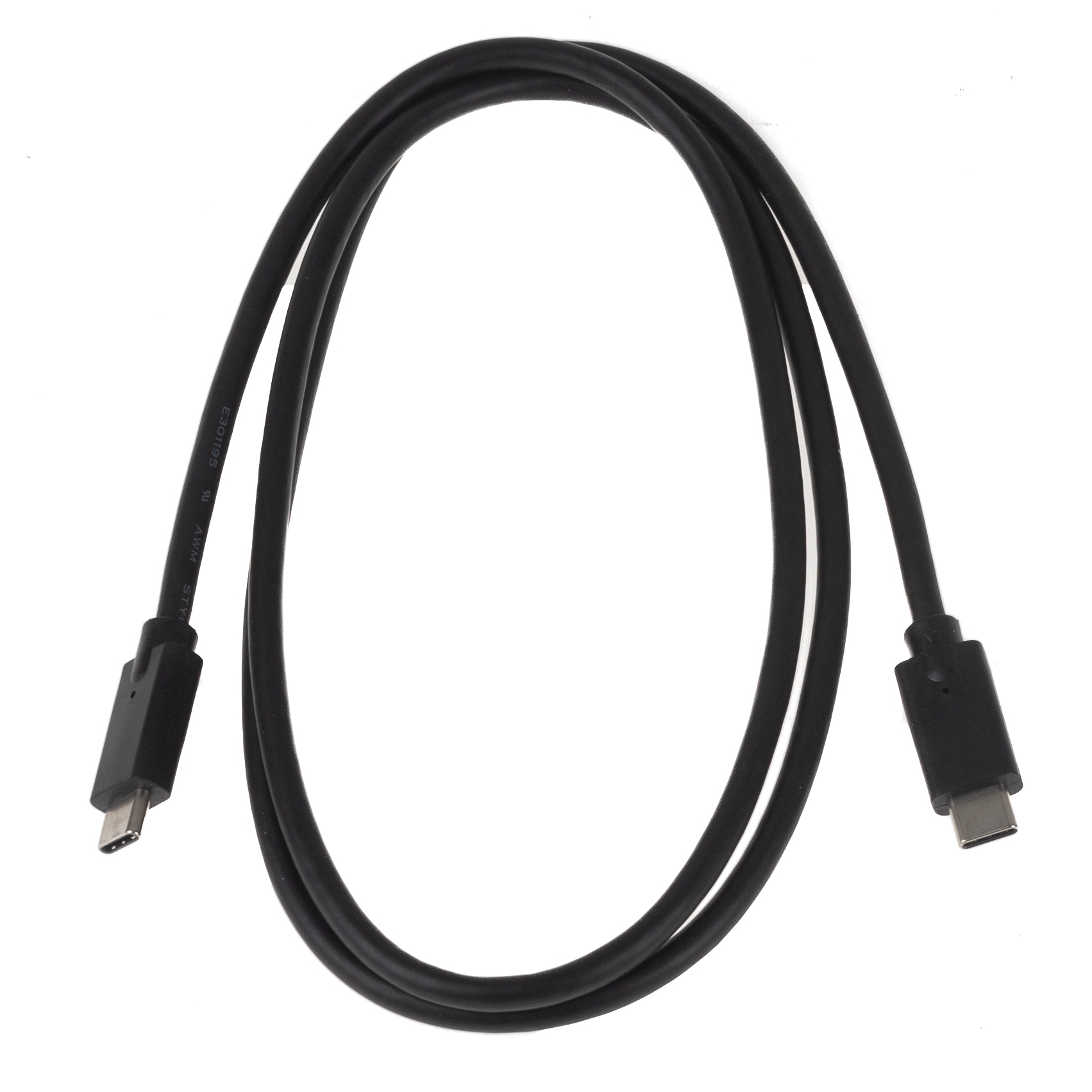

Length: 150cm
suitable for data transfer rates up to 20 Gbps (dual lane)
supports USB Power Delivery up to a charging current of 5 amps (at max. 20V = 100W)
in accordance with IEC 62680-1-3:2021 standard
Quality: PREMIUM
UL cable material (e.g. E340033)
Data AWG32, Power AWG22 (copper, CU)
twisted wire pairs
triple shielding (braiding + foils)
shielded connectors
video signals up to 3840x2160 (60Hz) are supported
cable diameter approx. 4.5±0.2mm
can be used as a data cable and charging cable
colour: black

Environmental protection *

RoHS-compliant: Product complies with EU environmental protection directives 2011/65/EU and RoHS 2015/86 ("Restriction of Hazardous Substances")
WEEE compliant (DE65810611): Waste of Electrical and Electronic Equipment - The WEEE directive regarding recycling and reutilisation makes a significant contribution to environmental protection.
REACH-compliant procurement process ("Registration Evaluation Authorisation and Restriction of Chemicals")
Product packaging made of cardboard (no plastic)
CE: all European standards are complied with

*All information on environmental protection is based on information provided by the manufacturer/supplier.
