USB 2.0 special cable: A right angled to JST PHR-5 (not plugged in), 19cm

DR. ZELLMER

€14.28*

35 in stock

PDF-Datasheet

Item no. OEM-01

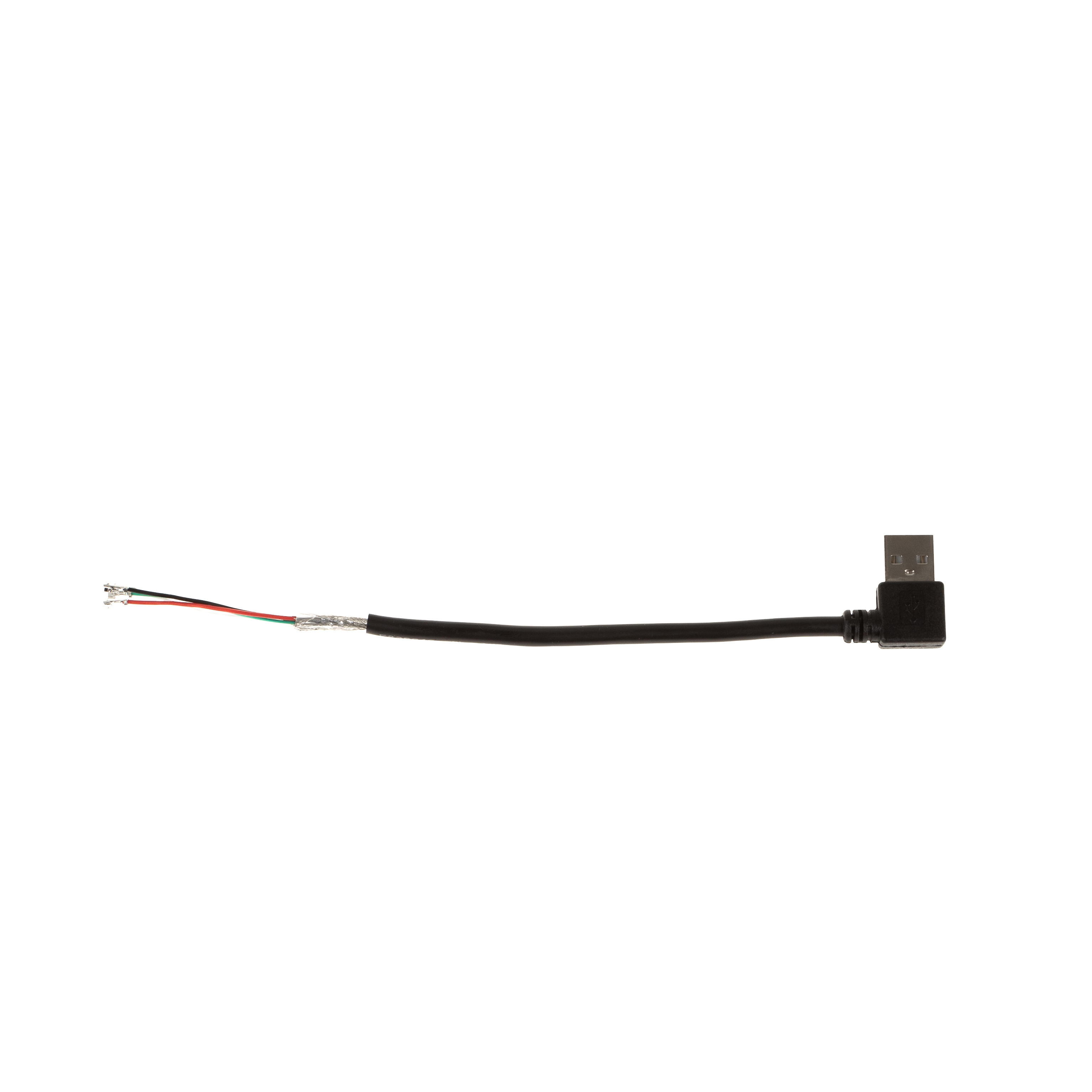

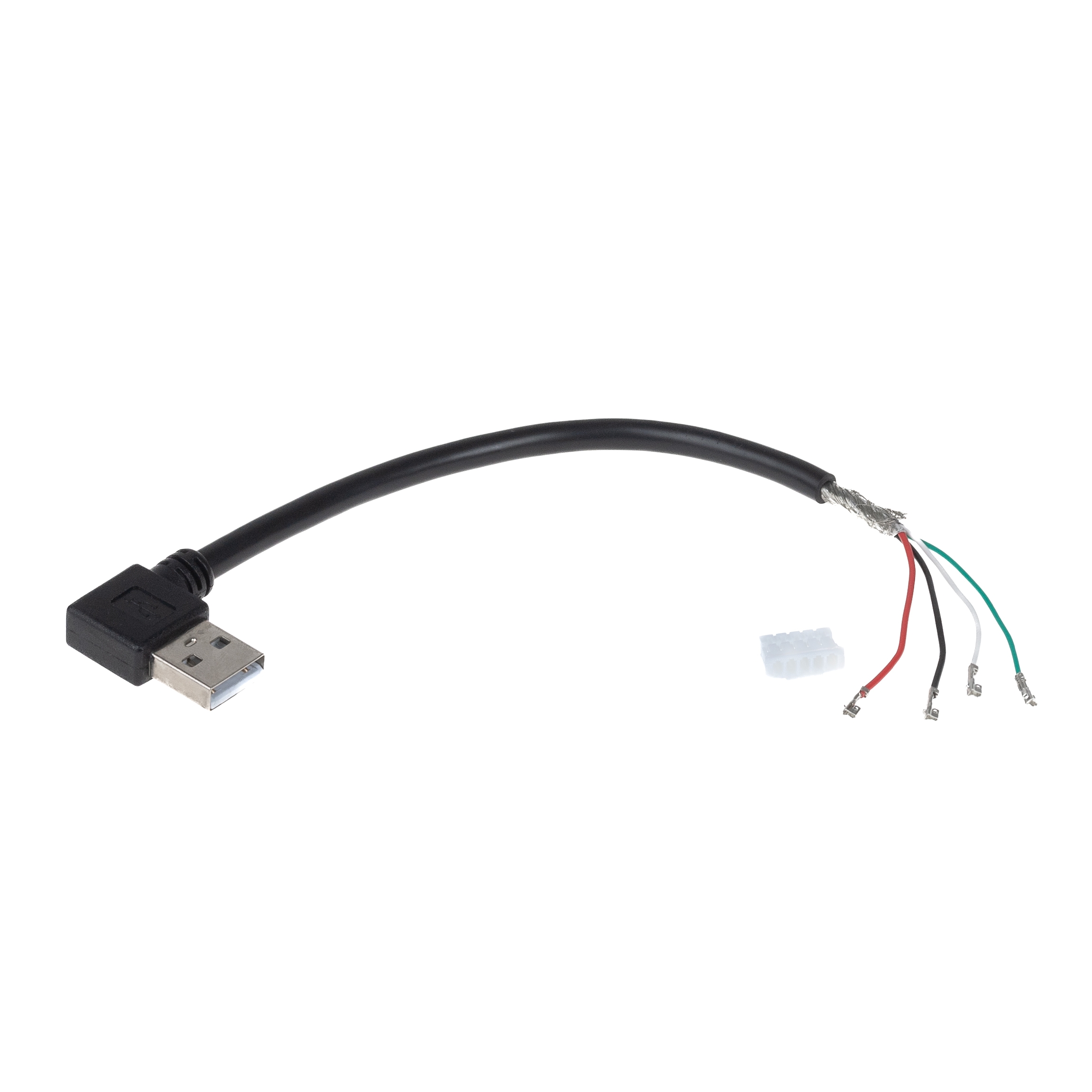

USB 2.0 special cable: USB 2.0 A plug angled 90° to the right to JST Connector PH Series Female PHR-5 (contacts not yet plugged in), length approx. 19cm

Technical data

USB 2.0 special cable optimised for housing feed-through
Realisation: The 4 contacts are not yet plugged into the JST connector
Diameter of the round cable approx. 4.8mm

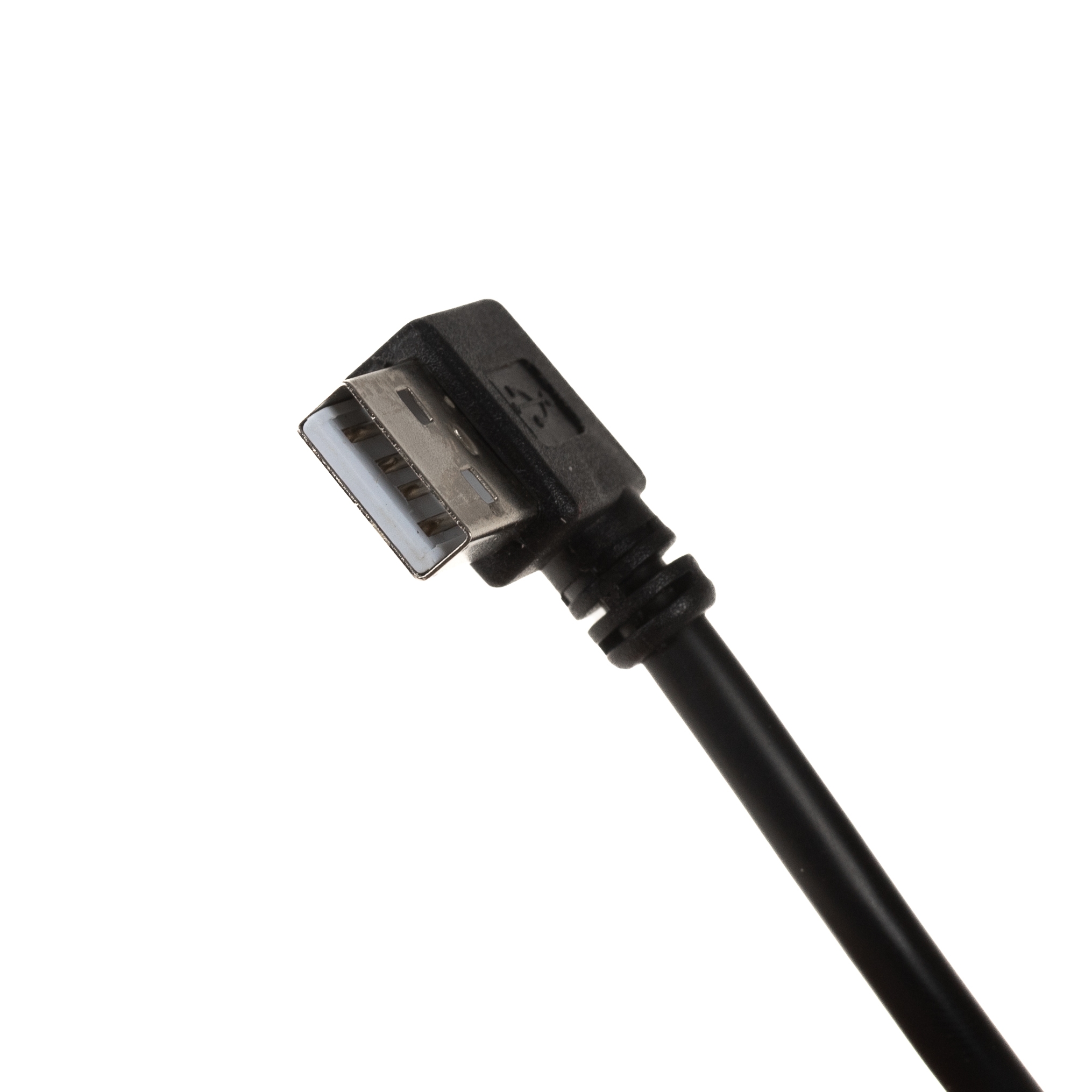

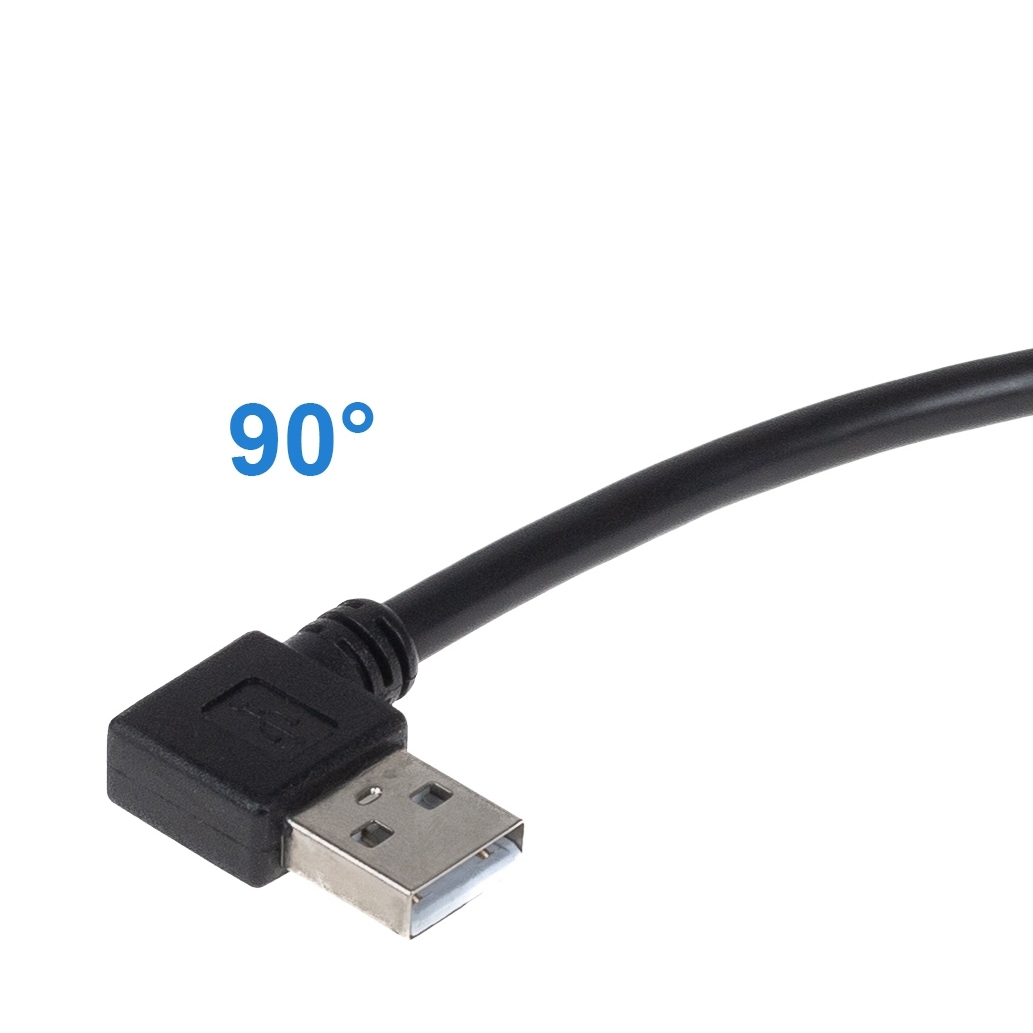

Connection 1: USB 2.0 A plug 90° angled to the right
Connection 2: JST Connector PH Series Female PHR-5

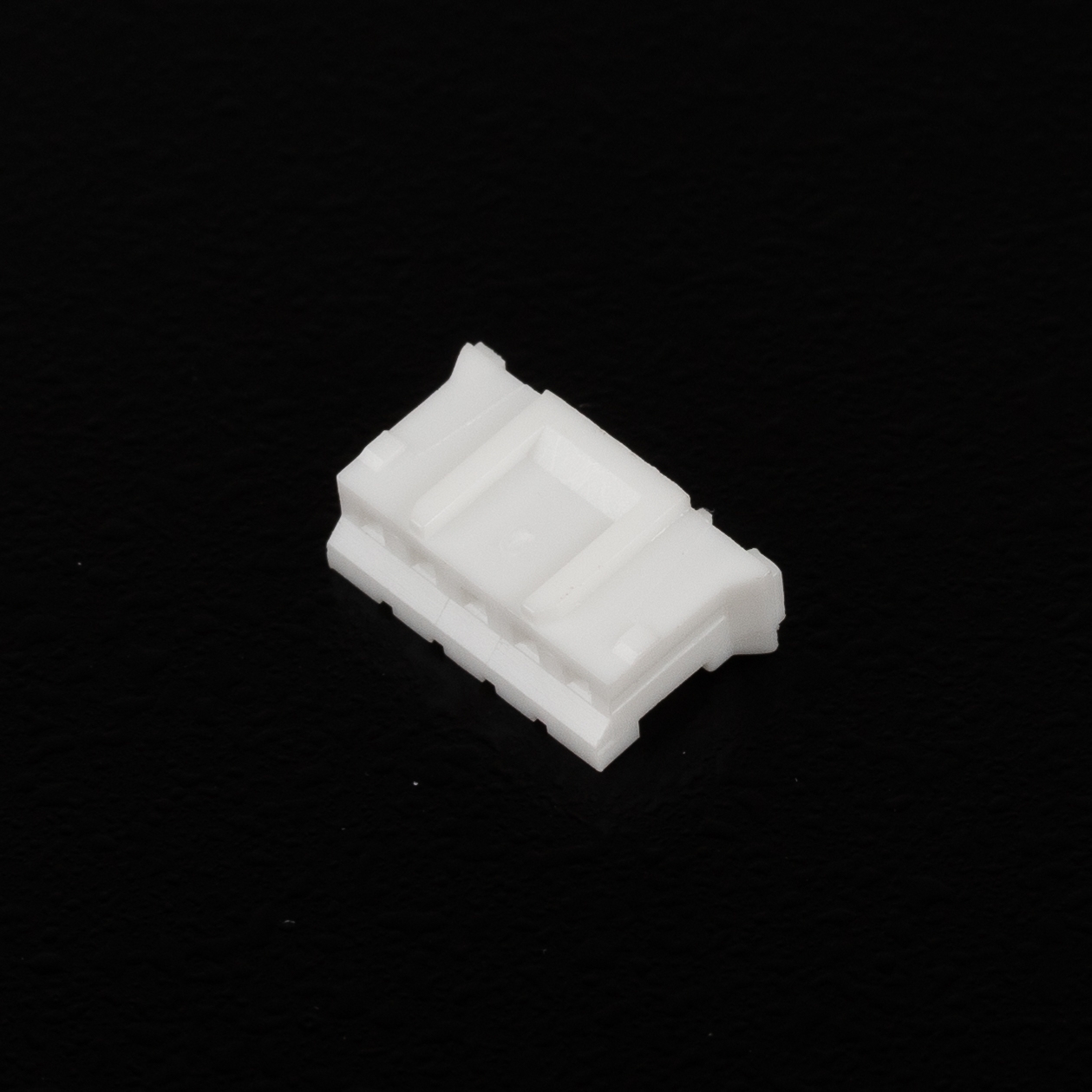

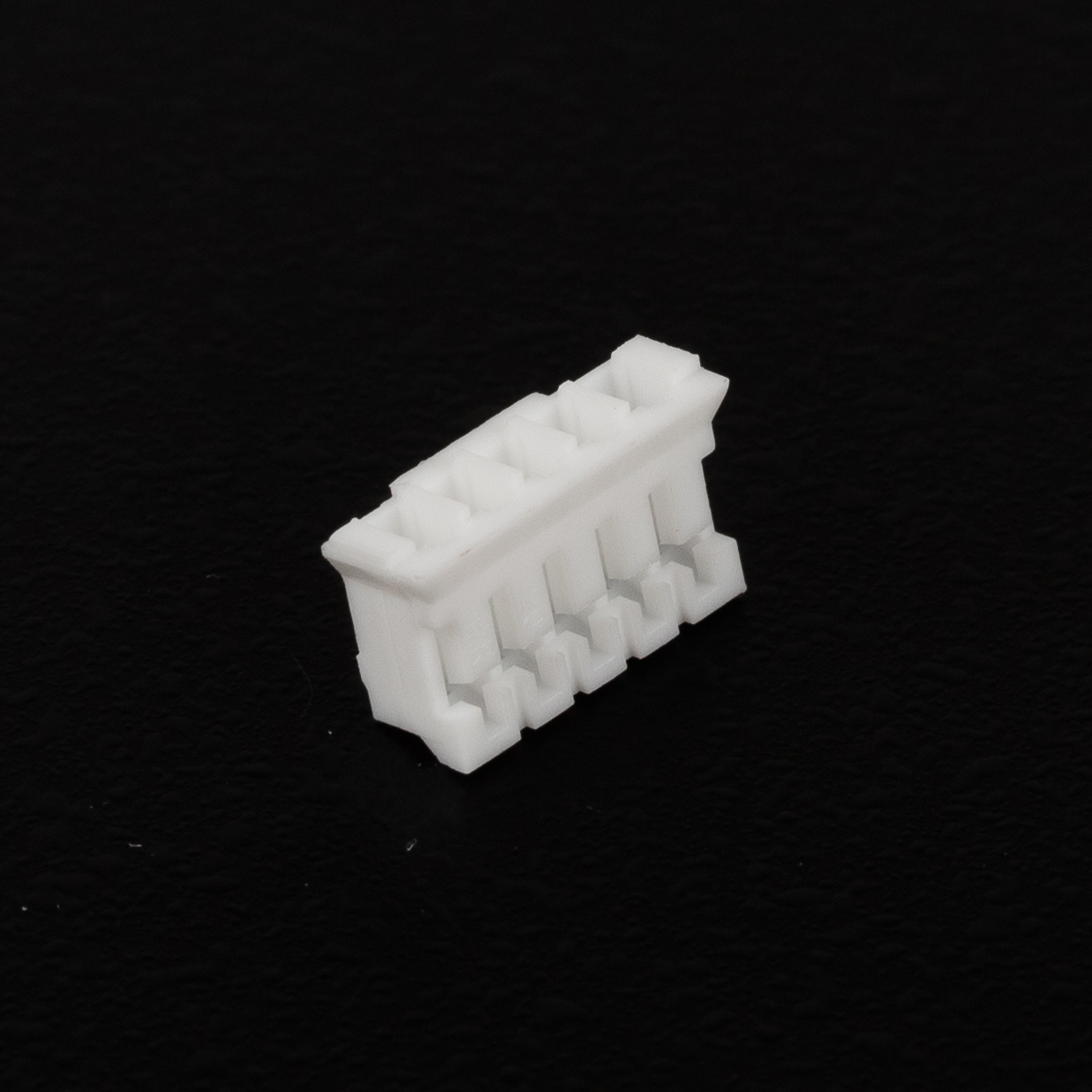

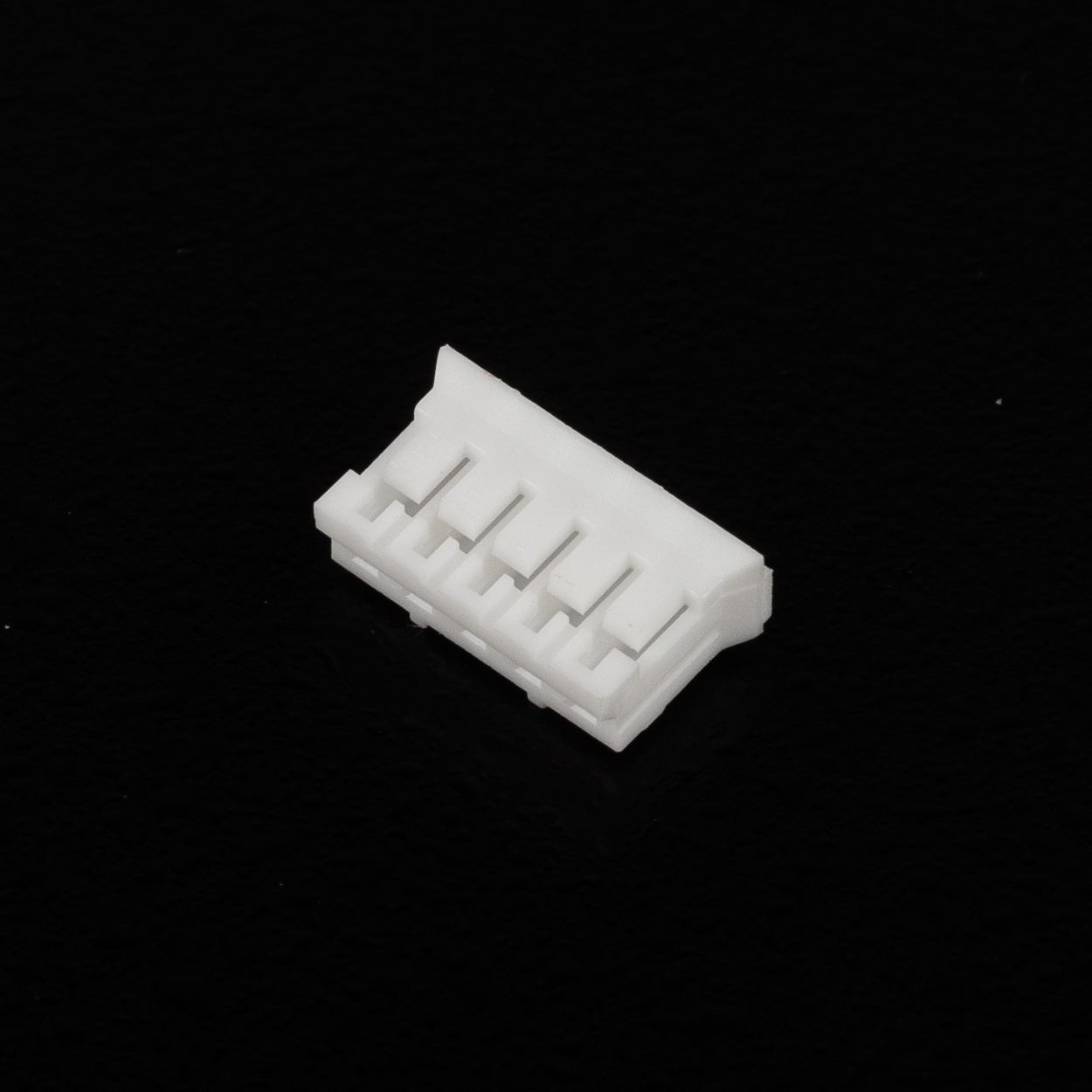

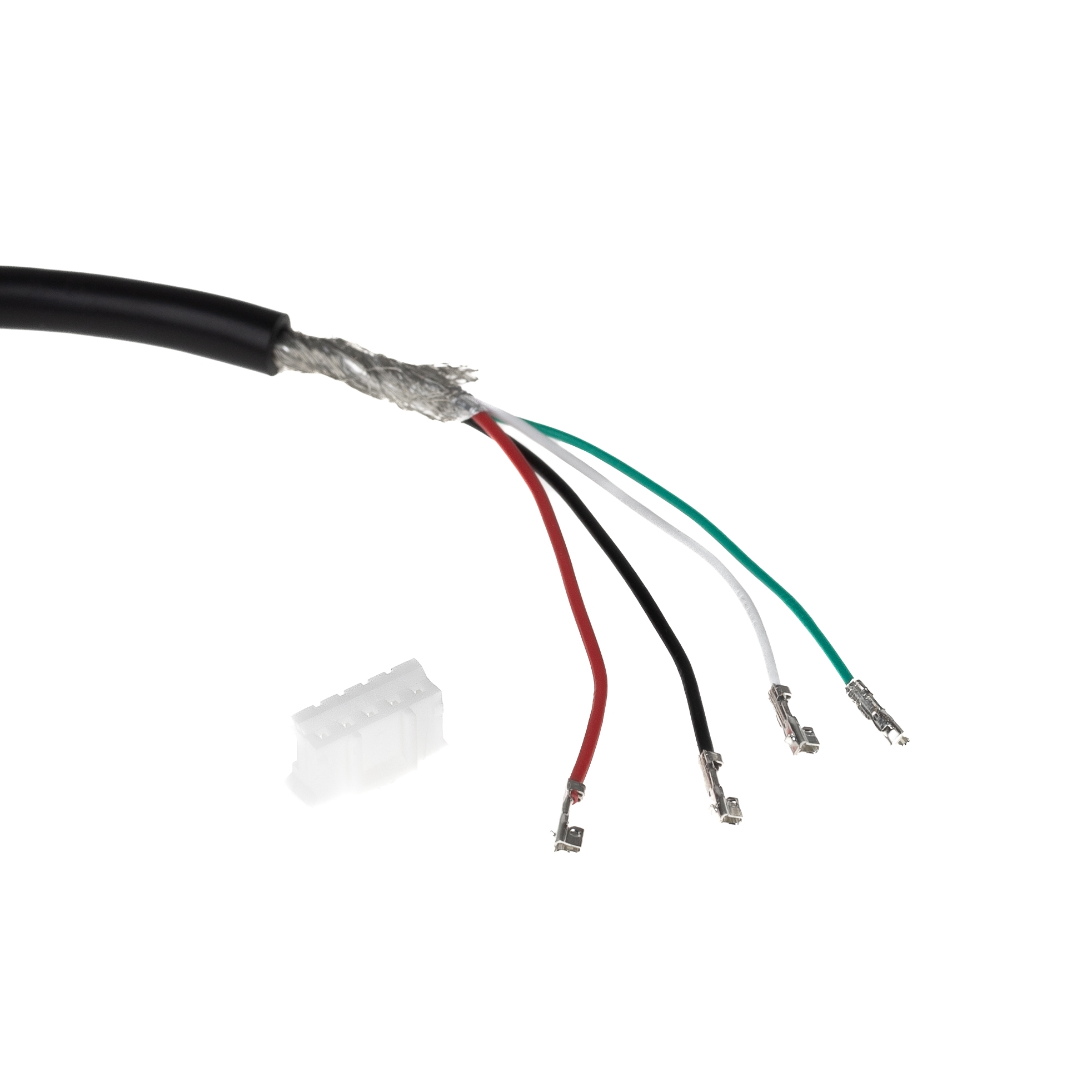

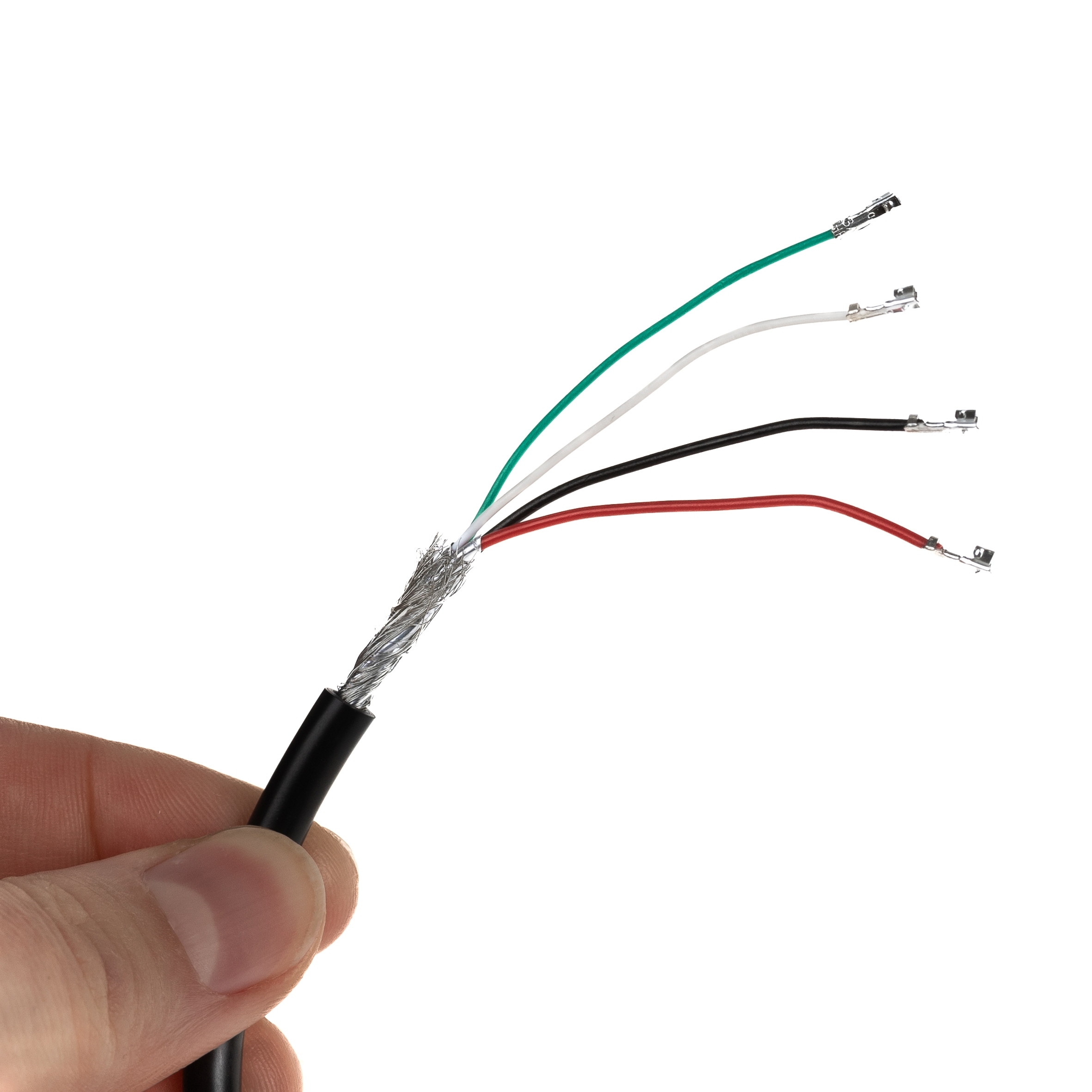

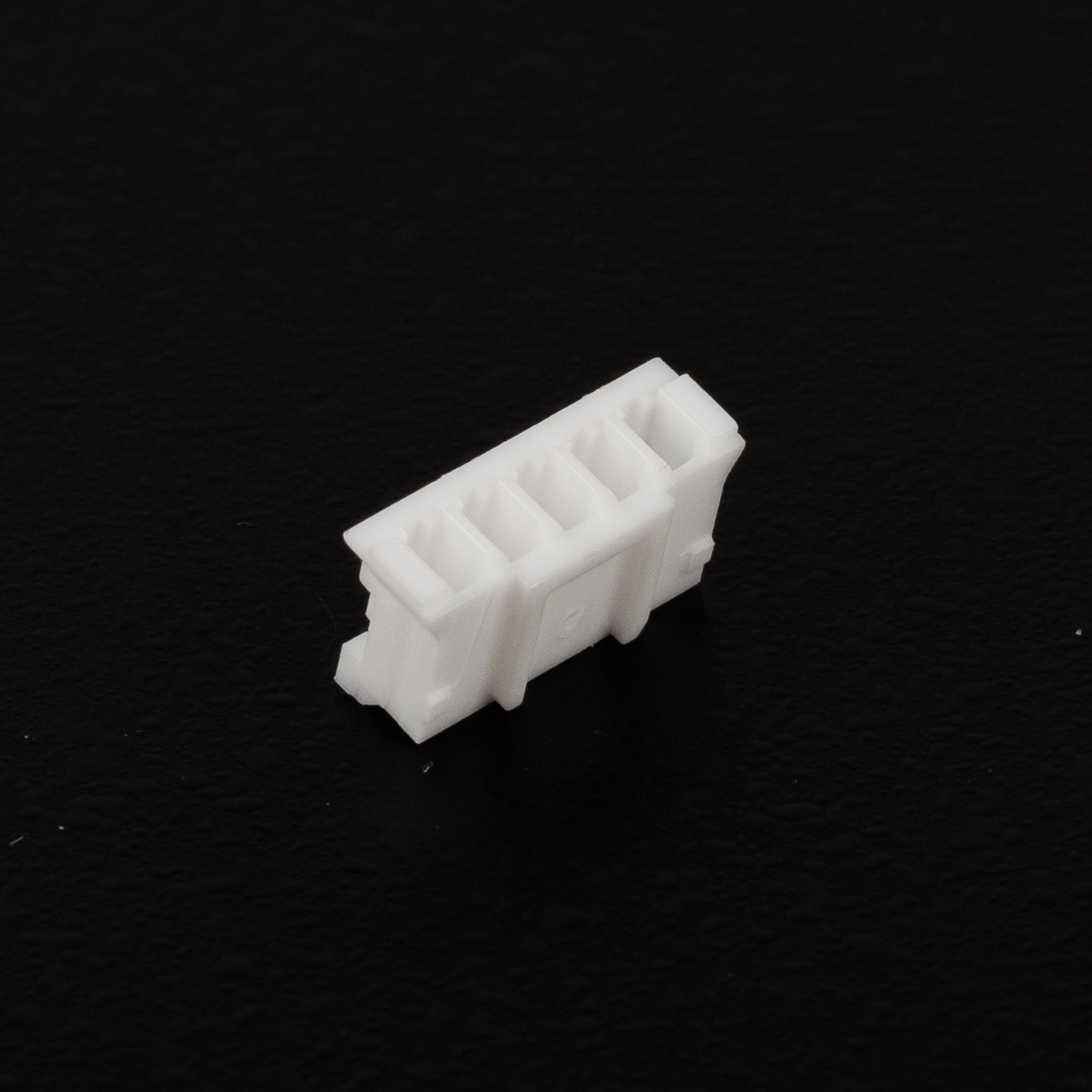

supplied with JST housing in bag (contacts connected with stranded wires, but not yet plugged into JST housing)
UL 2725 cable material e.g. E238846

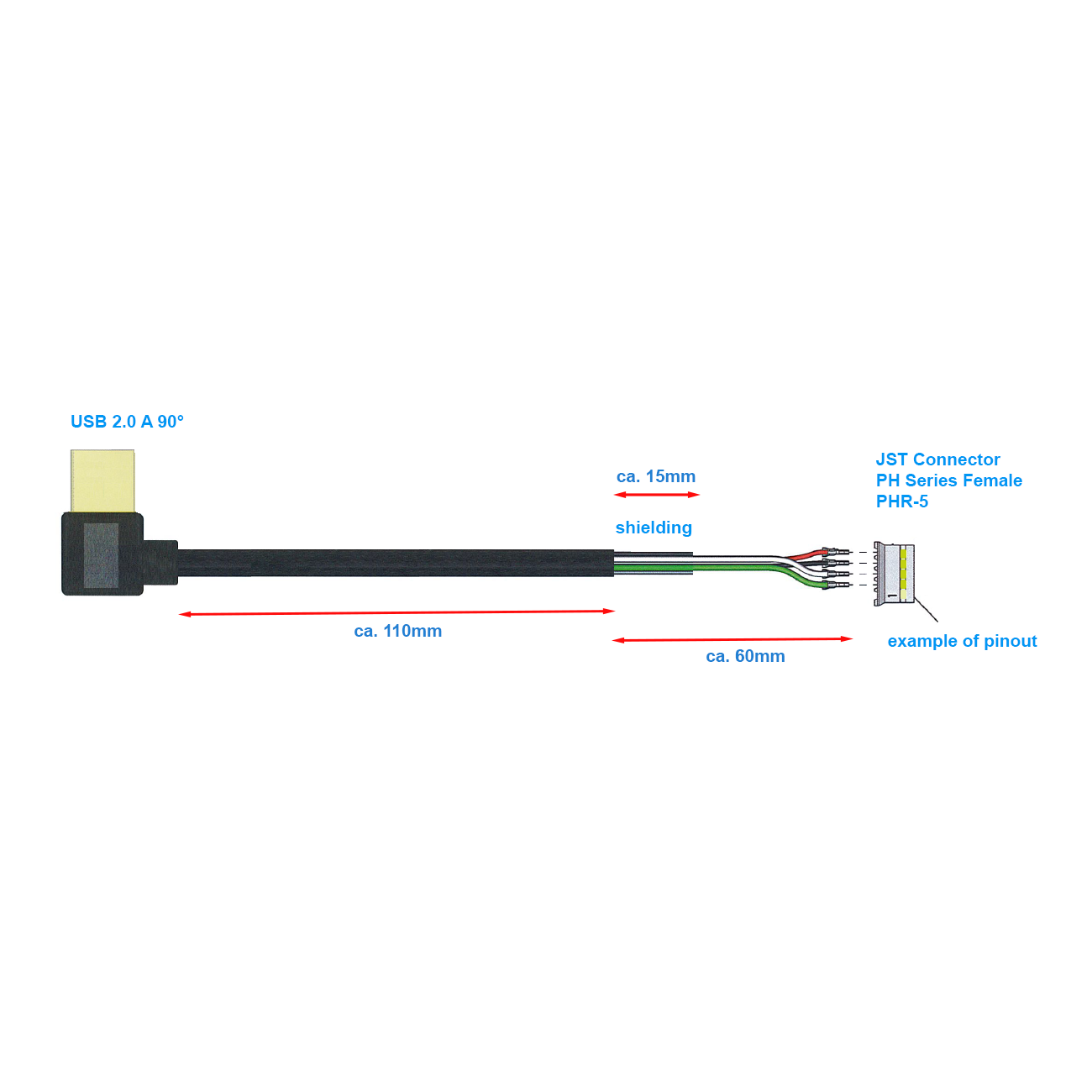

Length: approx. 19cm | 190mm (measured over all)
Length of outer insulation: approx. 111mm
Length of the protruding shield foil/braided shield: approx. 15mm (fold over and crimp in during final assembly)
Length of the strands approx. 60mm (from the end of the outer insulation)

Application

The USB 2.0 special cable offered here has been optimised for a housing feed-through. As the contacts of the JST connector are not yet plugged into the JST housing, the cable can be plugged through a small round hole in a device.
