USB 2.0 female connector type A + hood, solder type
€1.99*
1061 in stock
| from 10 |
€1.90
|
|---|---|
| from 25 |
€1.79
|
| from 50 |
€1.67
|
| from 100 |
€1.43
|
|
Please request a quote for larger quantities. On-time deliveries are possible. |
|

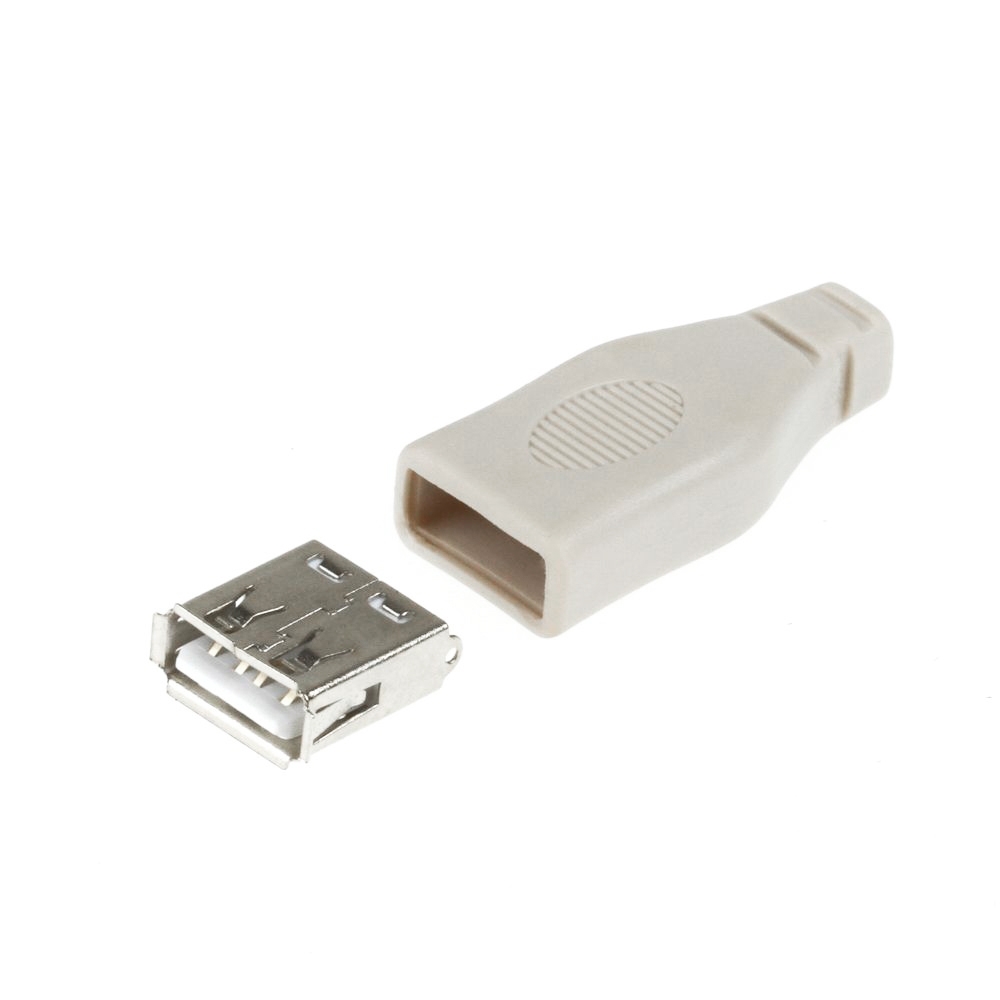

USB female connector type A + hood, solder type, for cable production, colour: grey-beige
Key features

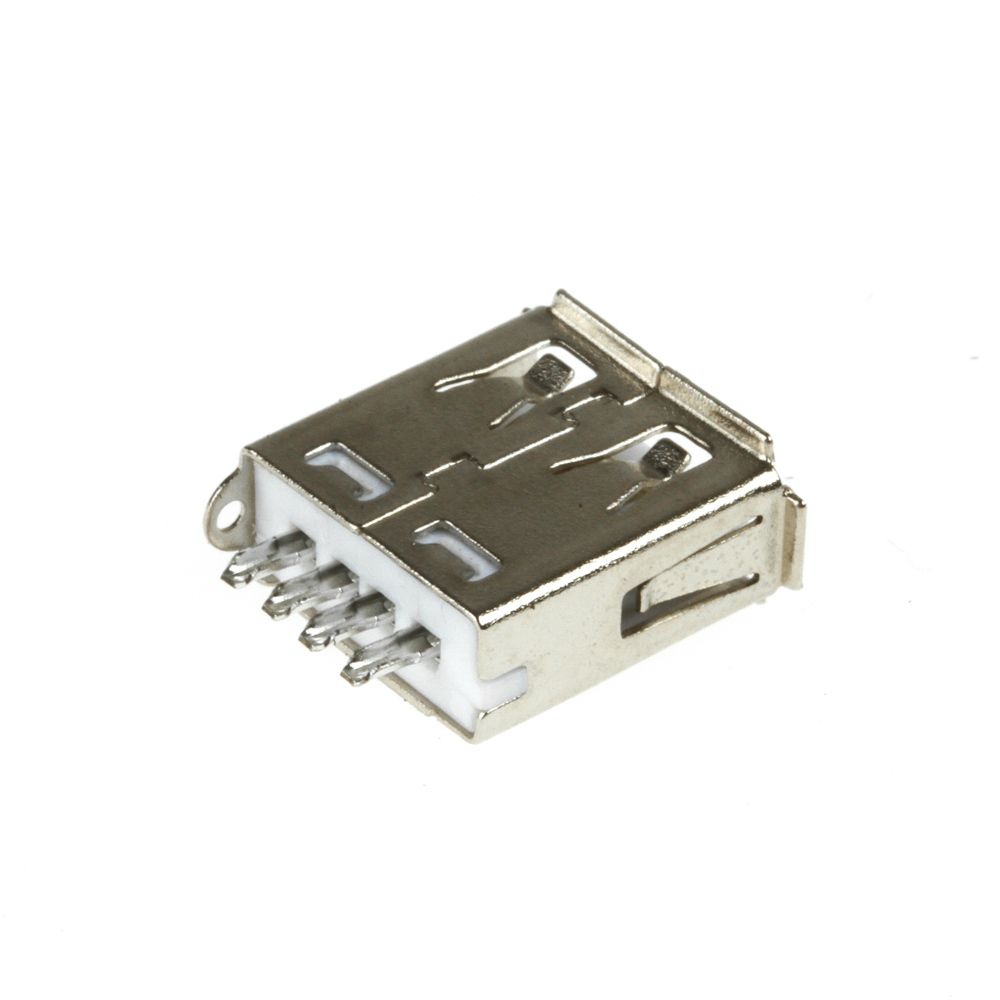

- USB 2.0 female connector for cable production
- solder version (4 pre-tinned contacts)
- NOT EASY TO FIND: hood included
- connector type USB 2.0 A female (jack)
- hood suitable for cable diameters up to approx. 5mm
- RoHS compliant according to current EU standards
- weight: about 5gr
- colour: grey-beige hood
- Brand: HORXX

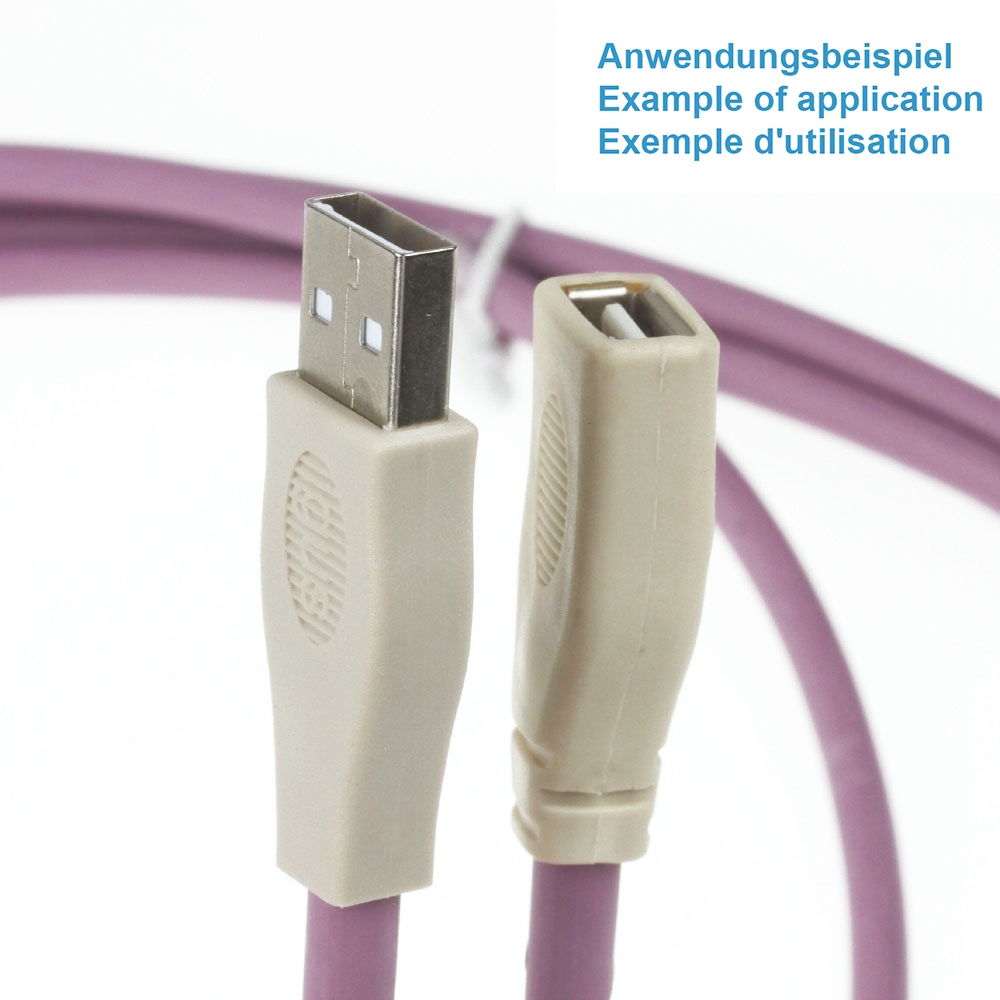

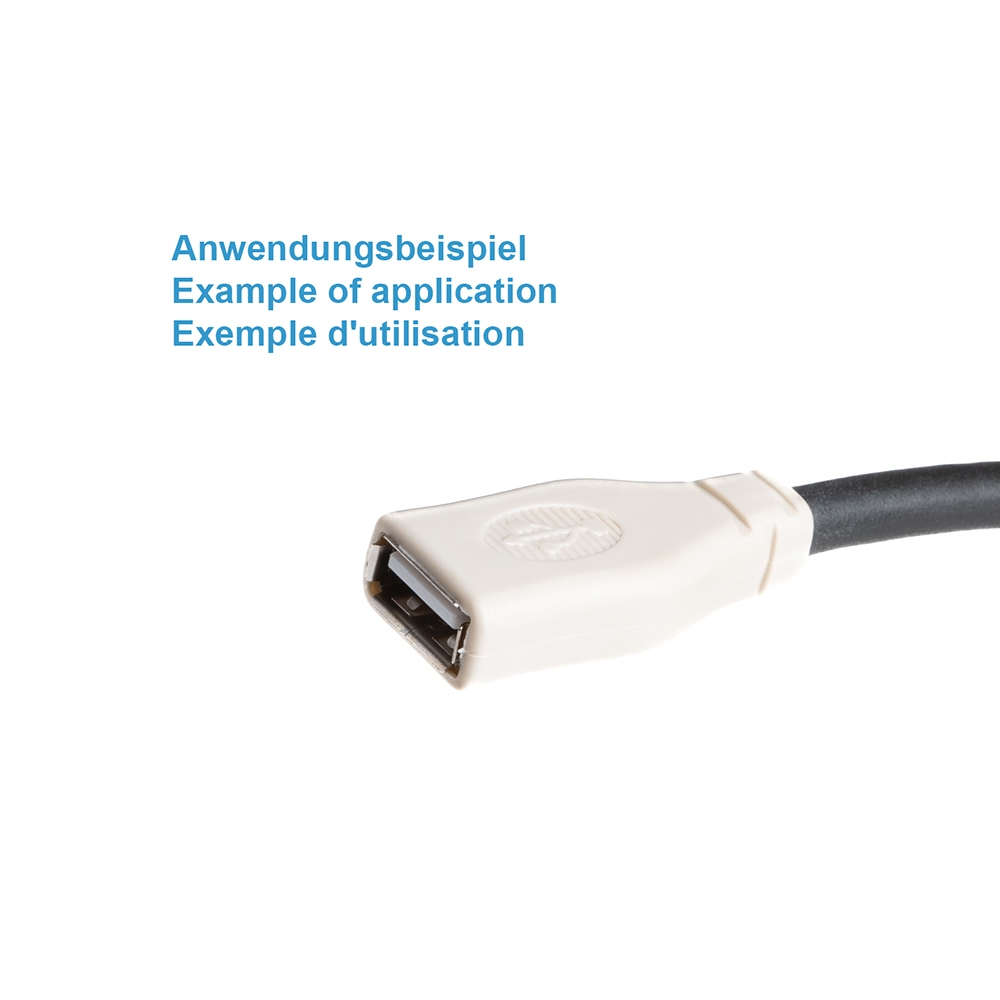

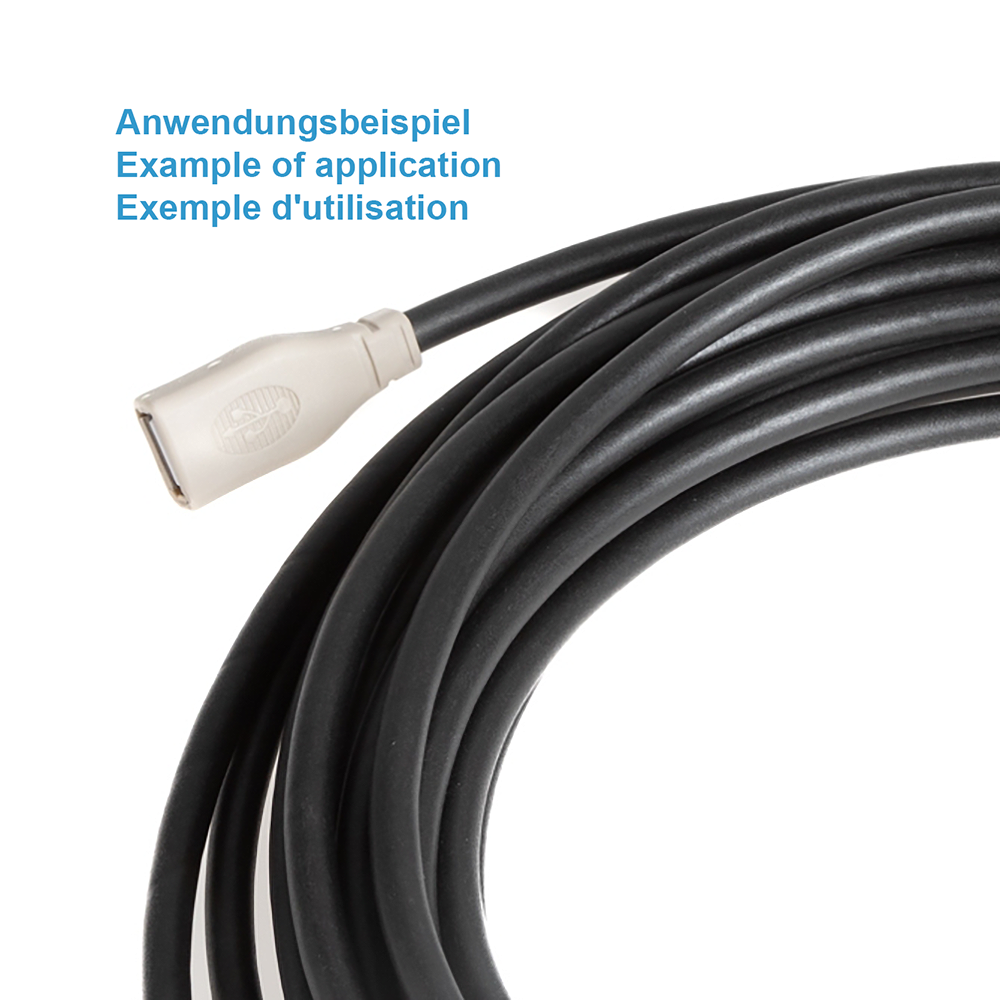

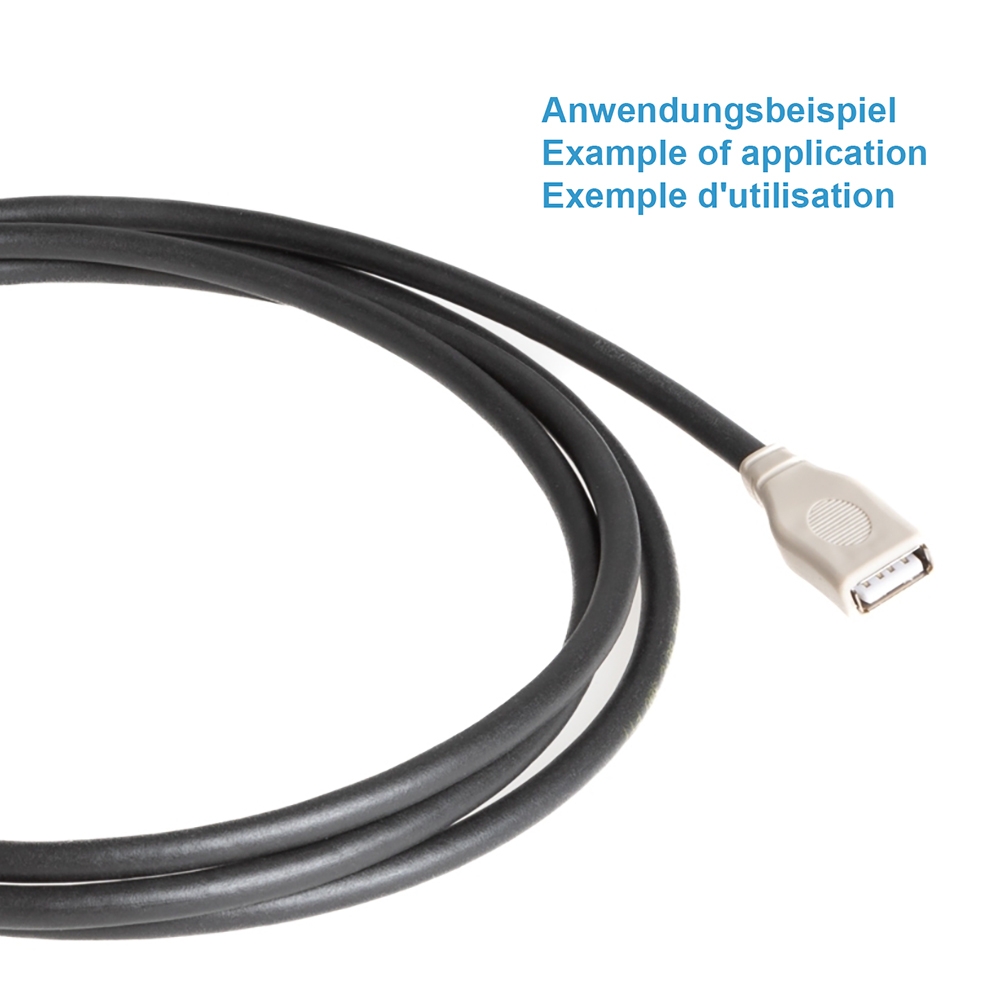

- e.g. to produce USB extension cables
Application
The plastic hood
...is suitable for cable diameters up to 5mm. The cable hole has a size of approx. Ø 4.9mm, whereby the plastic material is minimally flexible. The hole can be widened slightly (Ø 6mm) by applying heat (e.g. hot air dryer).
The maximum cable length for USB 2.0
... is 5m. For high-speed or high-powered USB applications, however, 5m can already be problematic despite the use of good cable material. This applies both to data technology and to the power supply of the end device. We recommend a maximum distance of 3m for data or power-intensive USB 2.0 applications.
