Item no.
CU-F-30

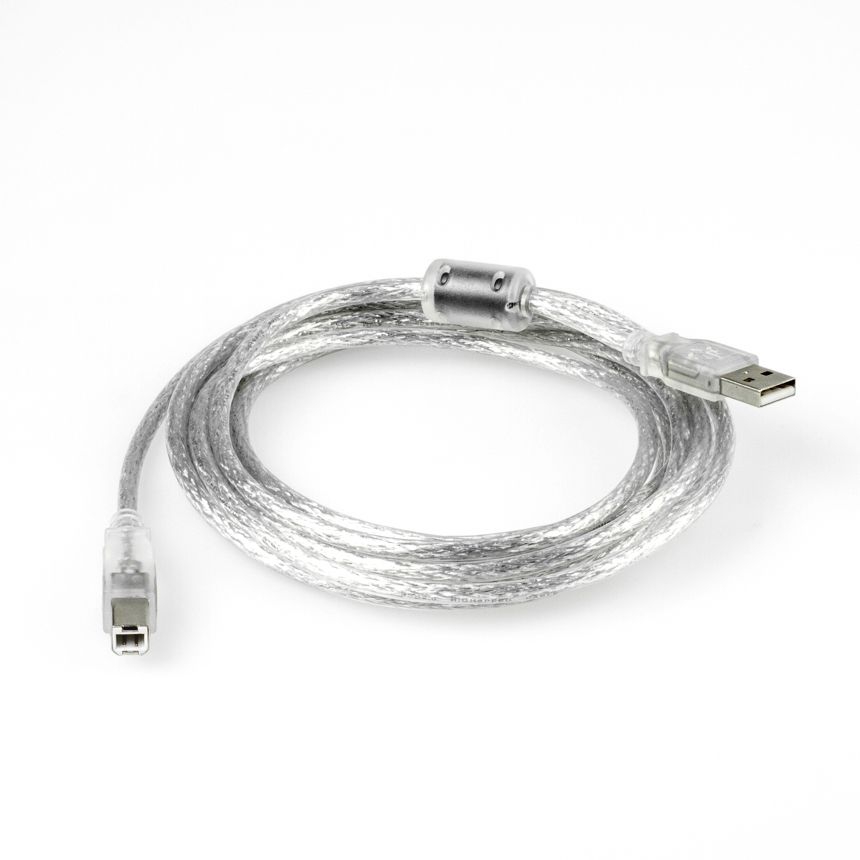

USB cable with ferrite core, 3m, very high quality: 28AWG/1P 24AWG/2C, double shield (covering 65%), for USB 2.0 high speed 480 Mbps, colour: silver translucent
Key features
- High Quality USB 2.0 cable
- Premium quality

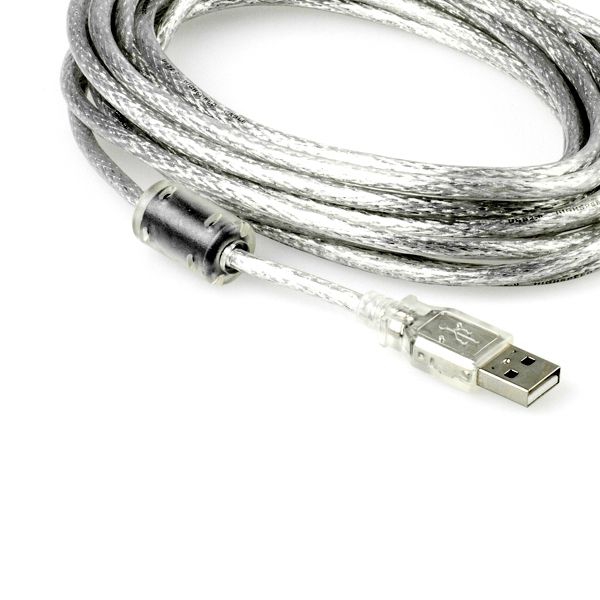

- 1 ferrite core (on the side of the A connector)

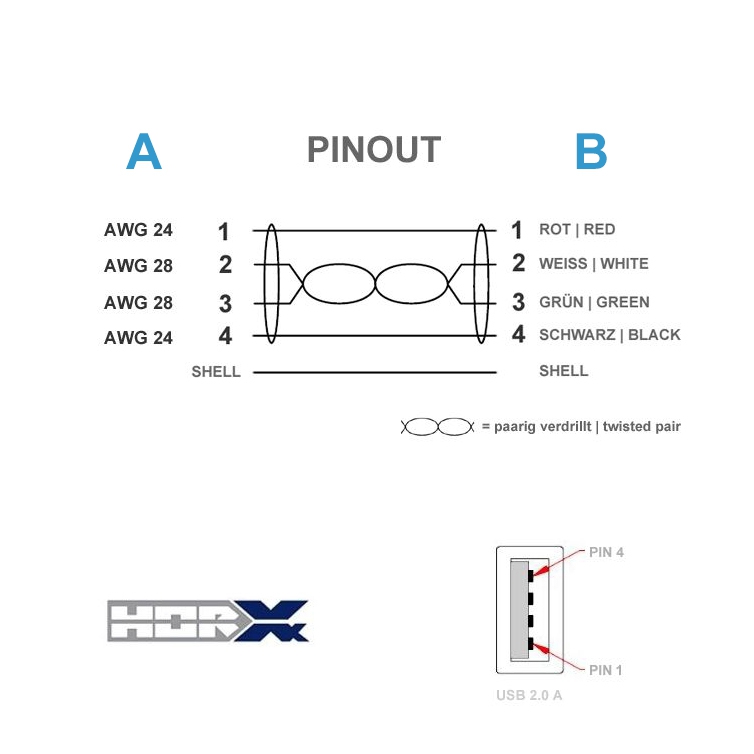

- copper core thickness according to USB standard: AWG28 + AWG24
- double shielded with foil and braid shield (65% coverage)
- shielded connectors with moulded strain relief

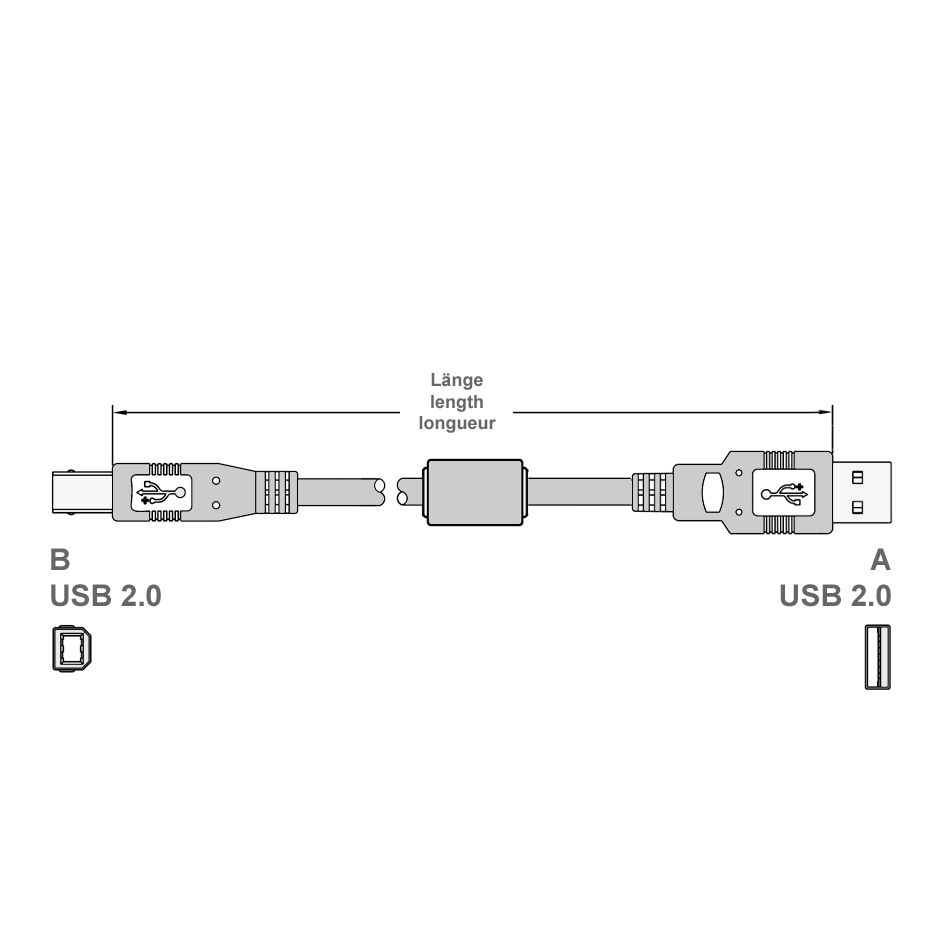

- USB 2.0 plug type A (system side/upstream)
- USB 2.0 plug type B (to peripheral device/downstream)
- USB 2.0 High Speed + downward compatible to USB 1.1
- suitable for 480 MBit/s (high speed), 12 MBit/s (full speed) and 1.5 MBit/s (low speed)
- cable diameter Ø approx. 4.4mm
- colour: silver-transparent
- CE, WEEE, RoHS compliant
