Item no.
CU-BD-F-10

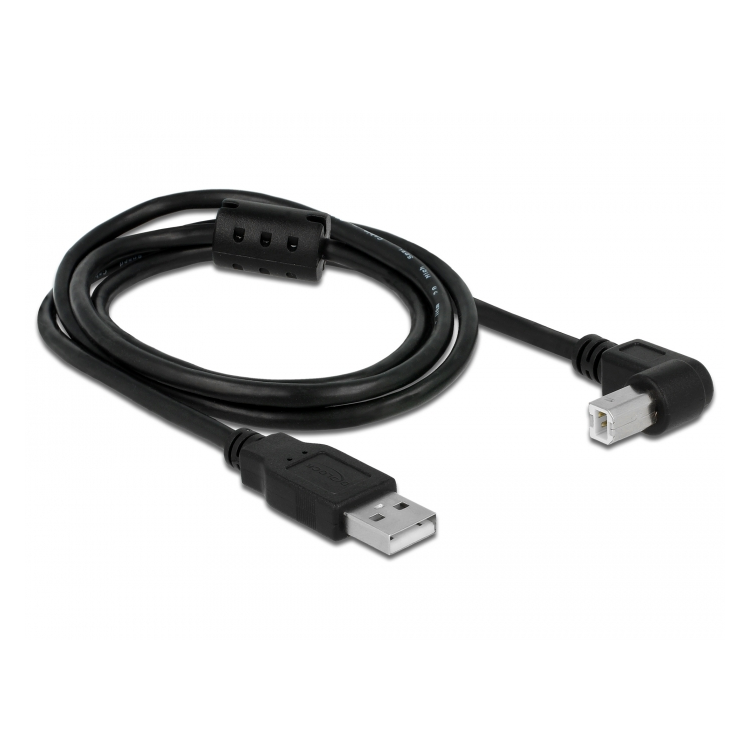

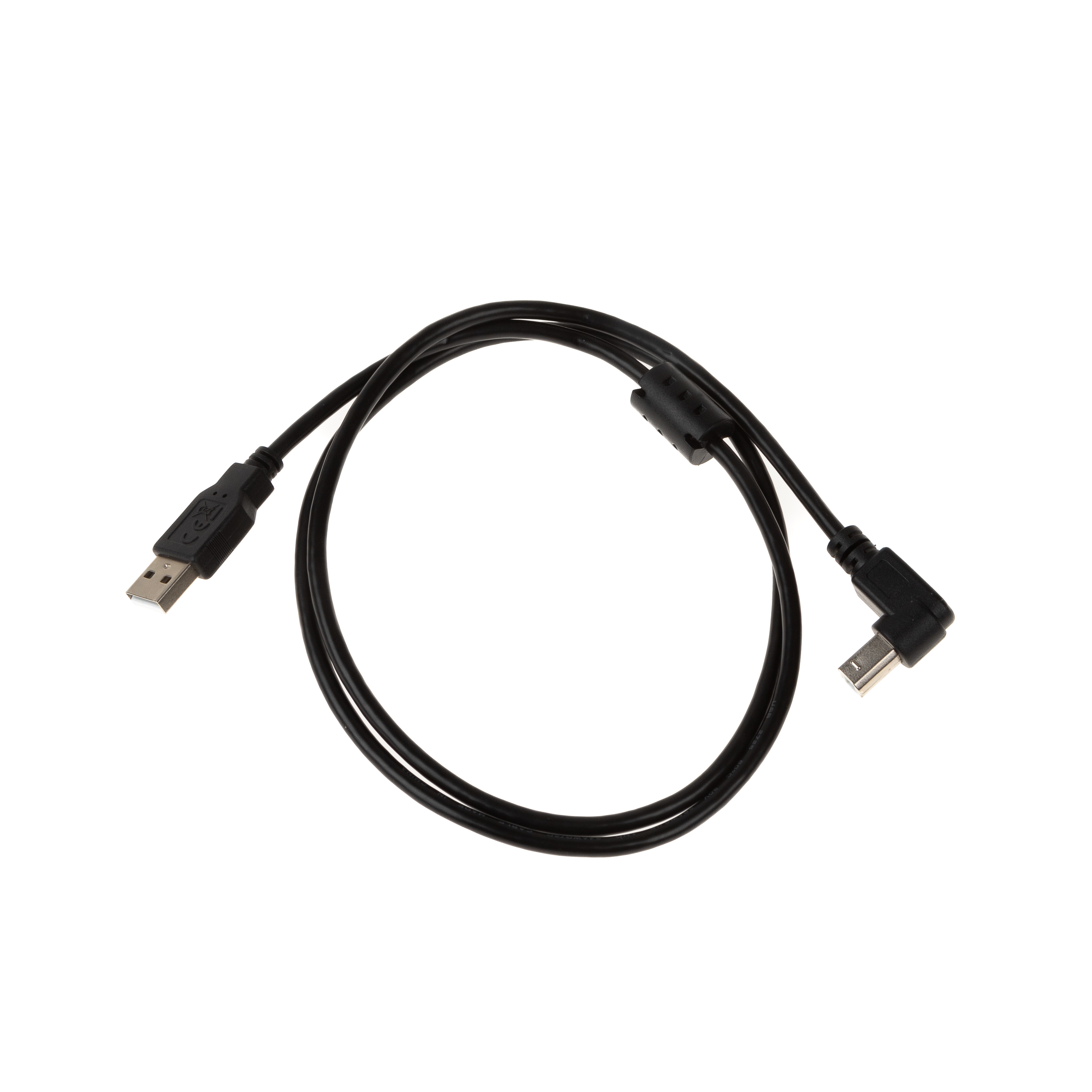

USB 2.0 cable with angled B connector (90° DOWN), with ferrite core, double shielded, high qualtity with AWG28/24, gold plated contacts, 1m
Technical data

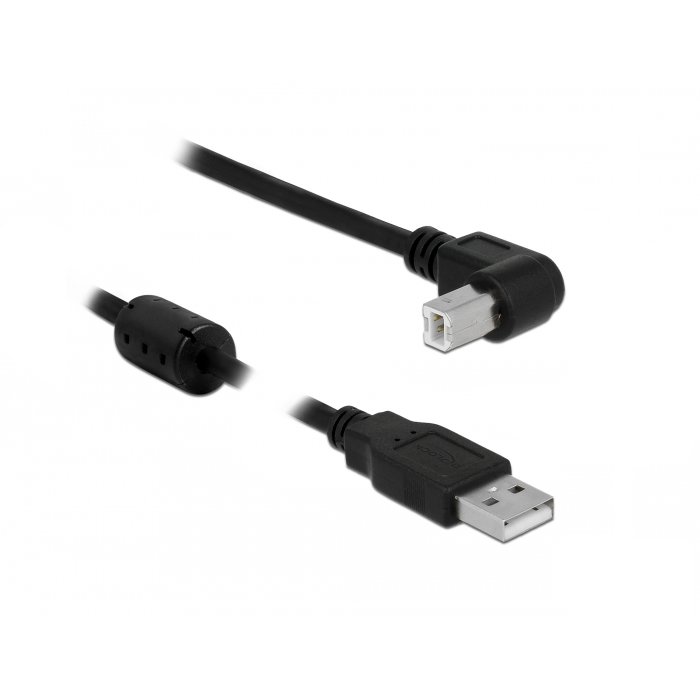

- USB 2.0 cable A-to-B with 90° B angled plug

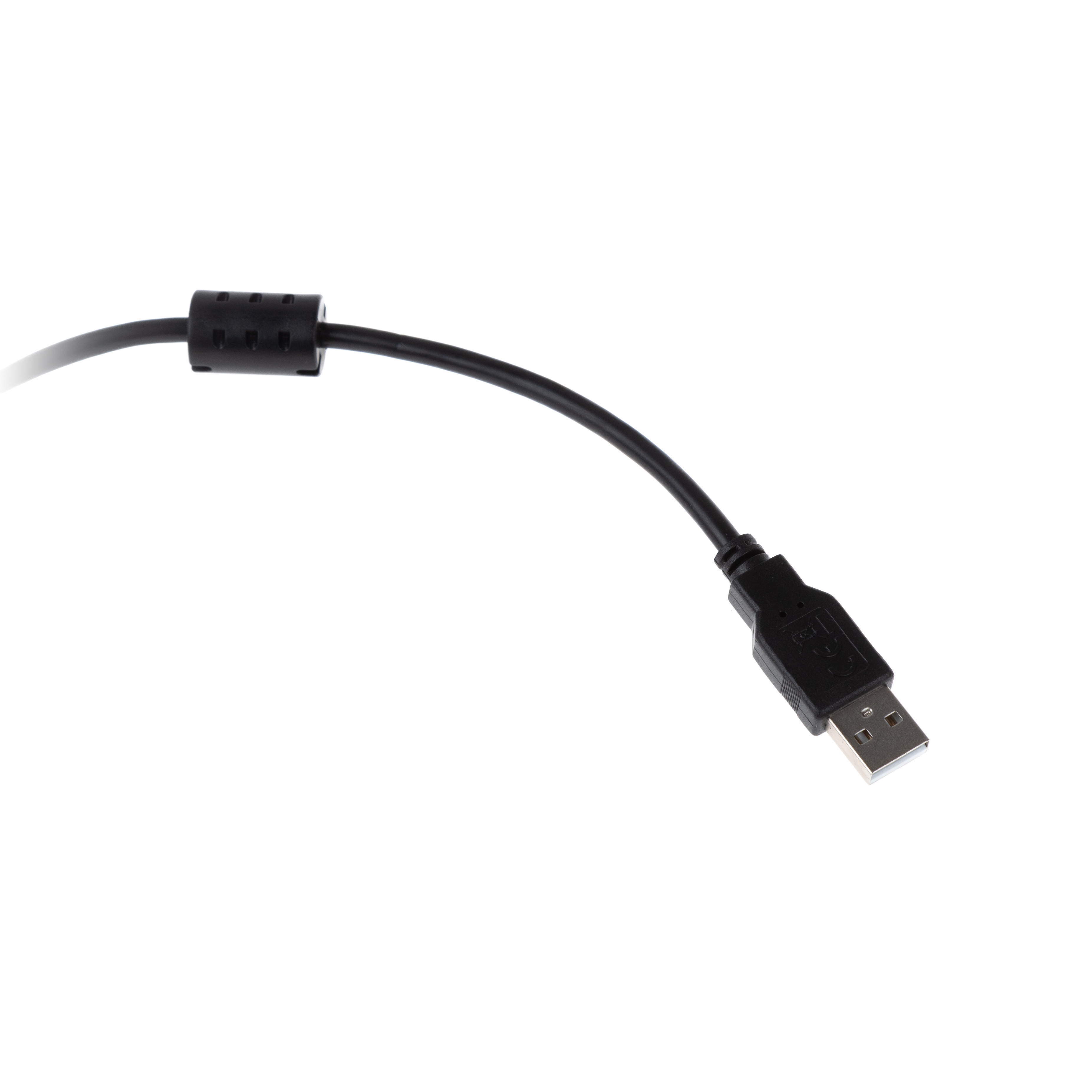

- with ferrite core on the side of the A plug

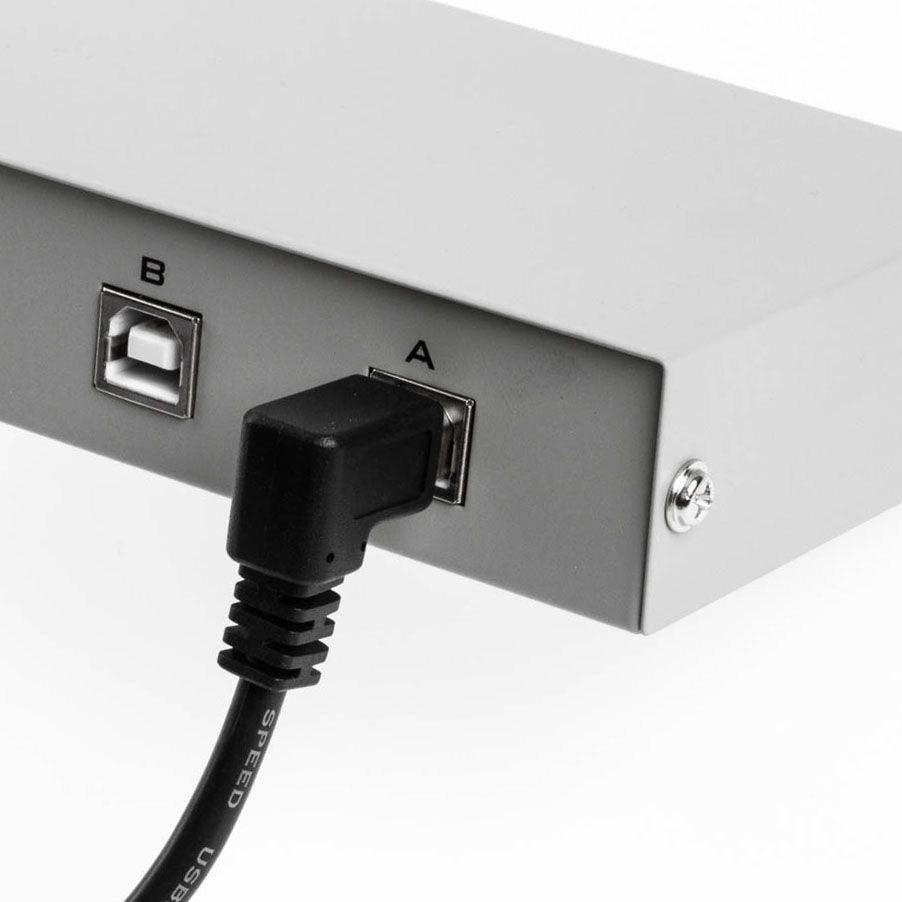

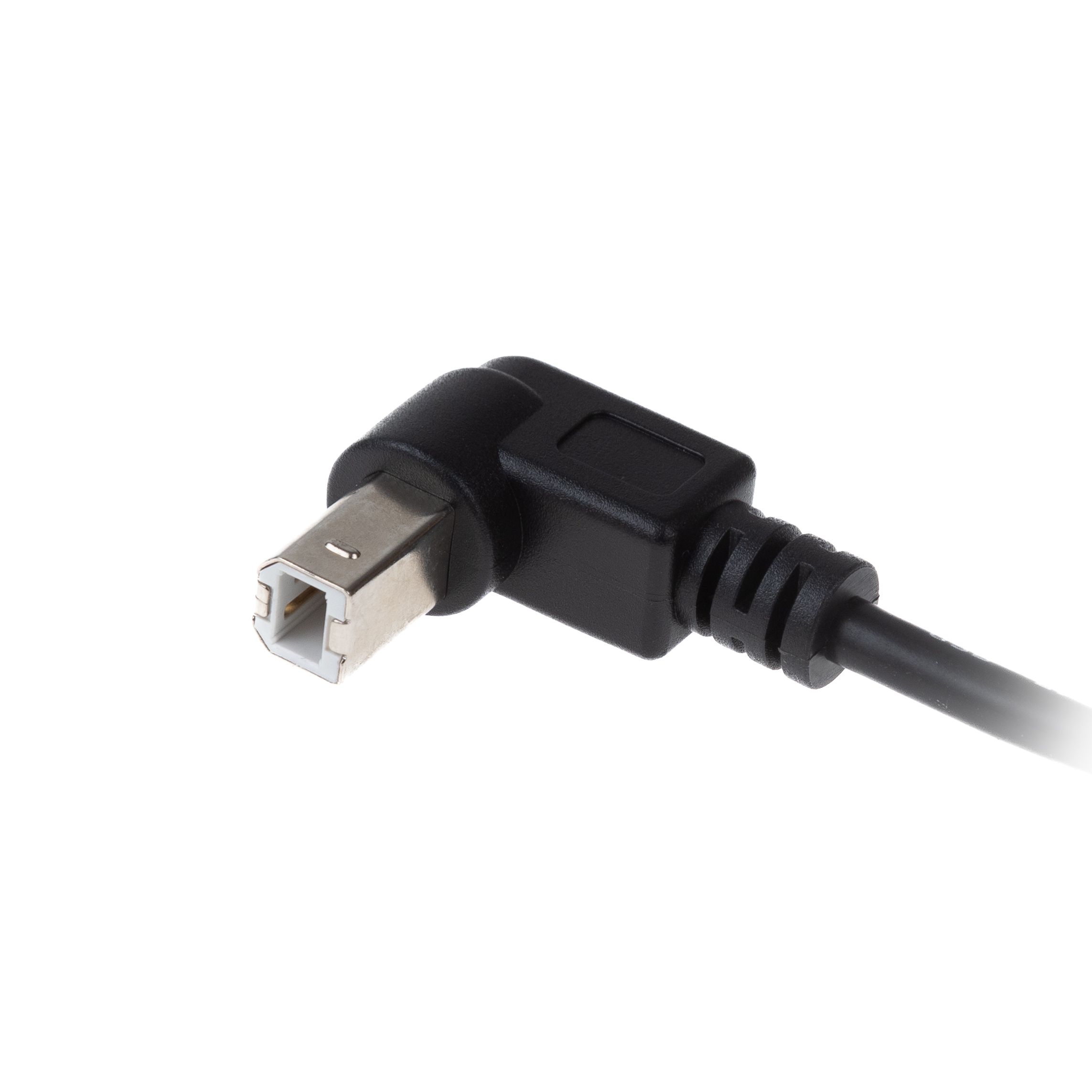

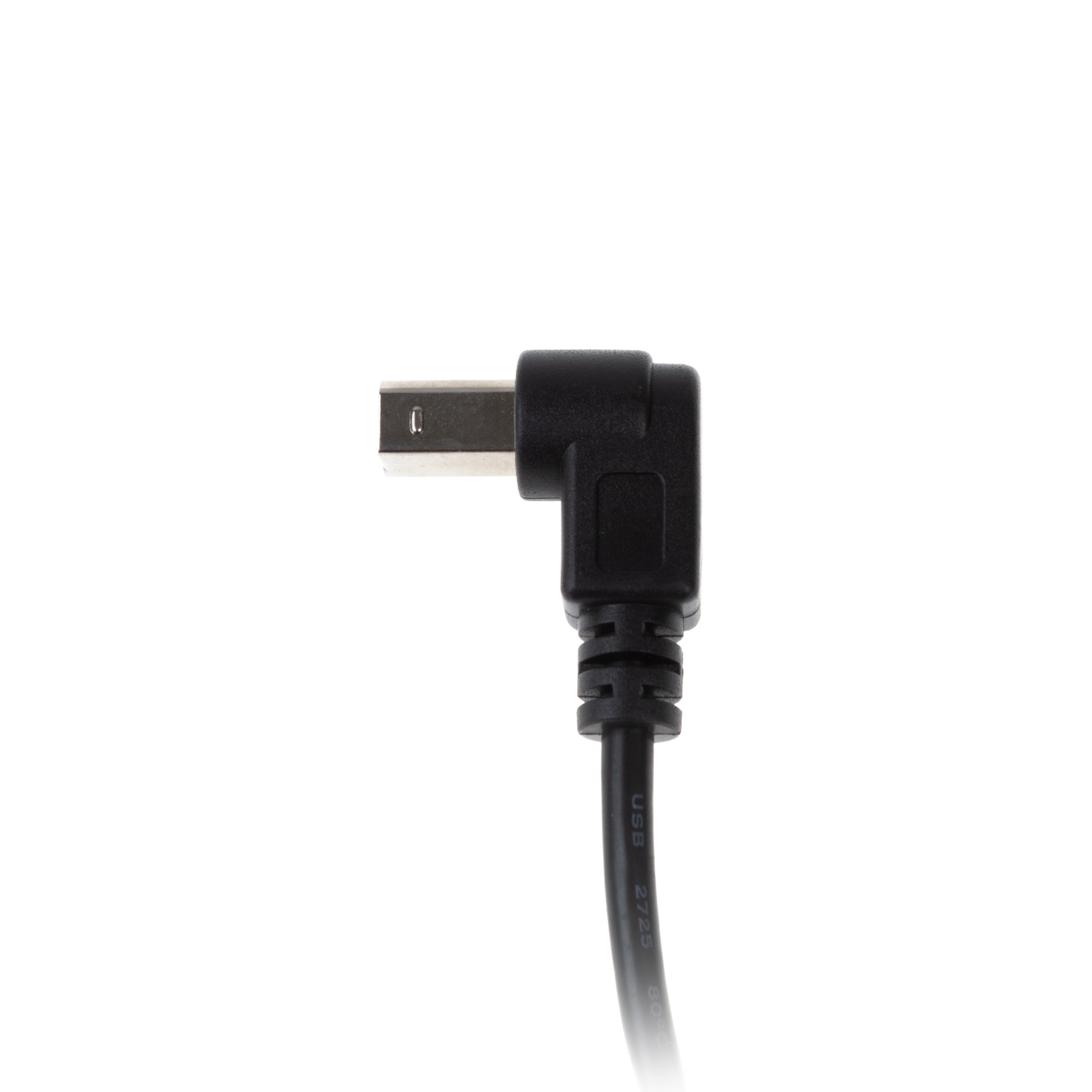

- USB plug type B angled 90° DOWN

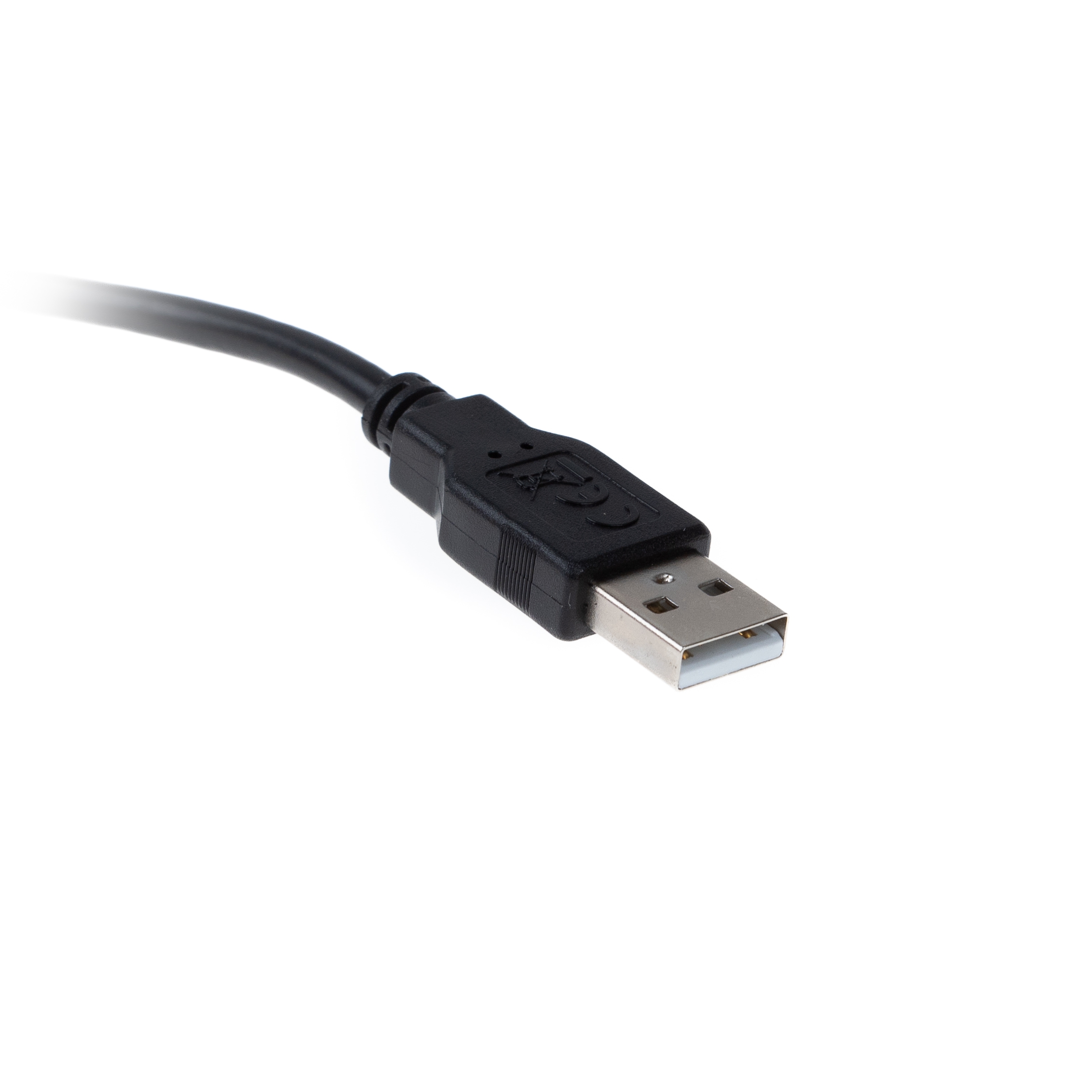

- USB plug type A straight
- USB 2.0 compatible / downwards compatible USB 1.1
- suitable for 480 MBit/s (high speed), 12 MBit/s (full speed) and 1.5 Mbit/s (low speed)
- Double shielding (foil shielding & braided shielding)

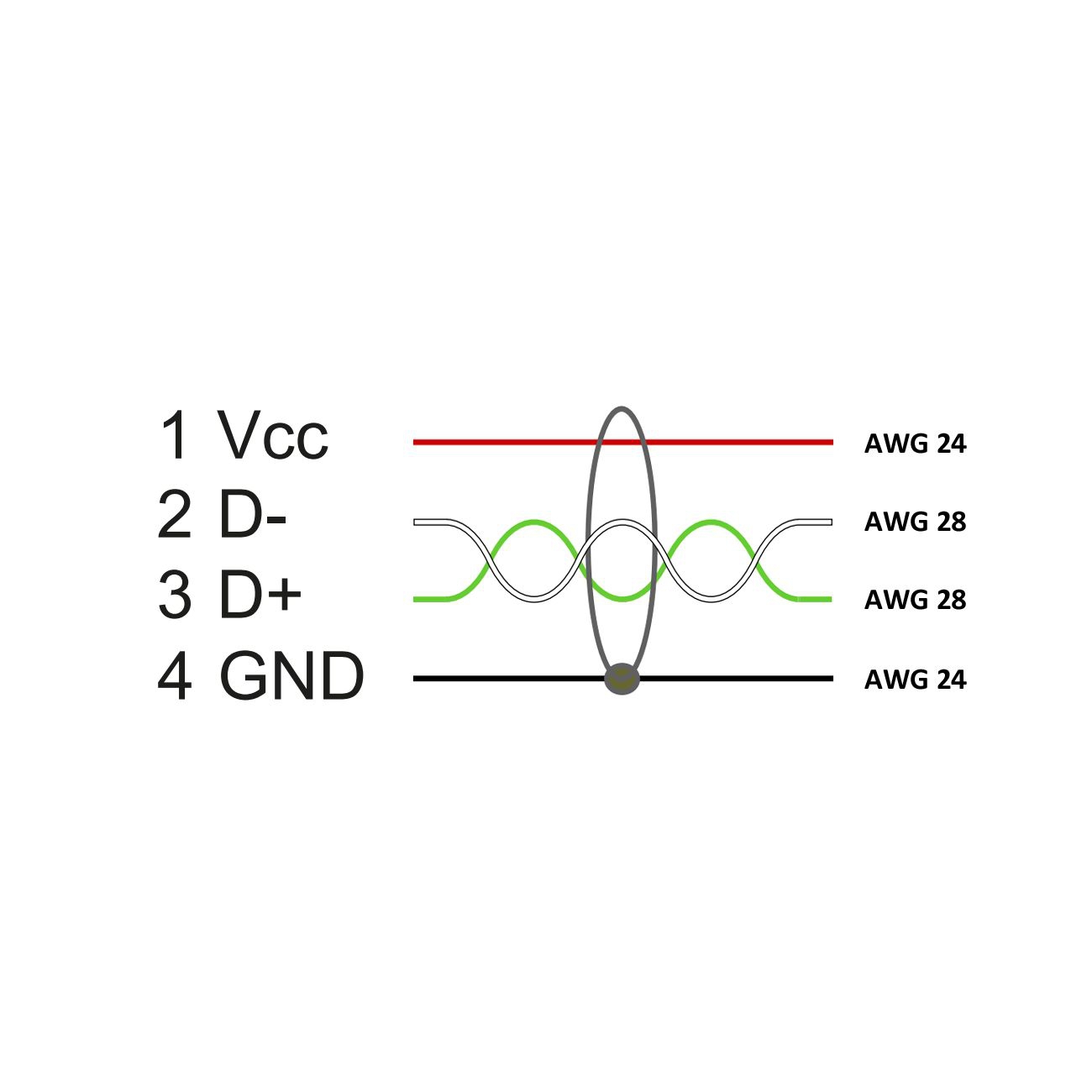

- 28 AWG data cable, 24 AWG power cable
- Core colours (internal): white, green, red, black
- Cable diameter approx. 4.5mm
- Gold-plated contacts
- Colour: black
- Customs tariff number: 85444290
- e.g. for printers, cash drawers, measuring devices, multi-media applications, HUBs, telephones, scanners or webcams
- CE, WEEE, RoHS compliant (according to EU directives)
