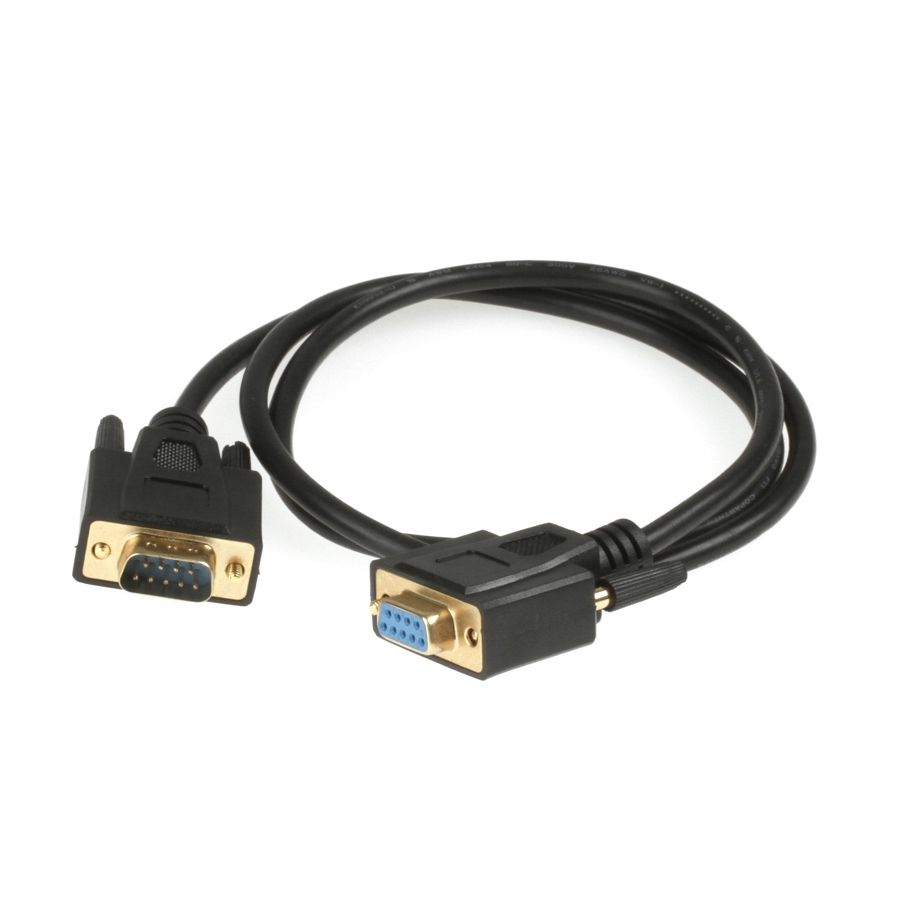

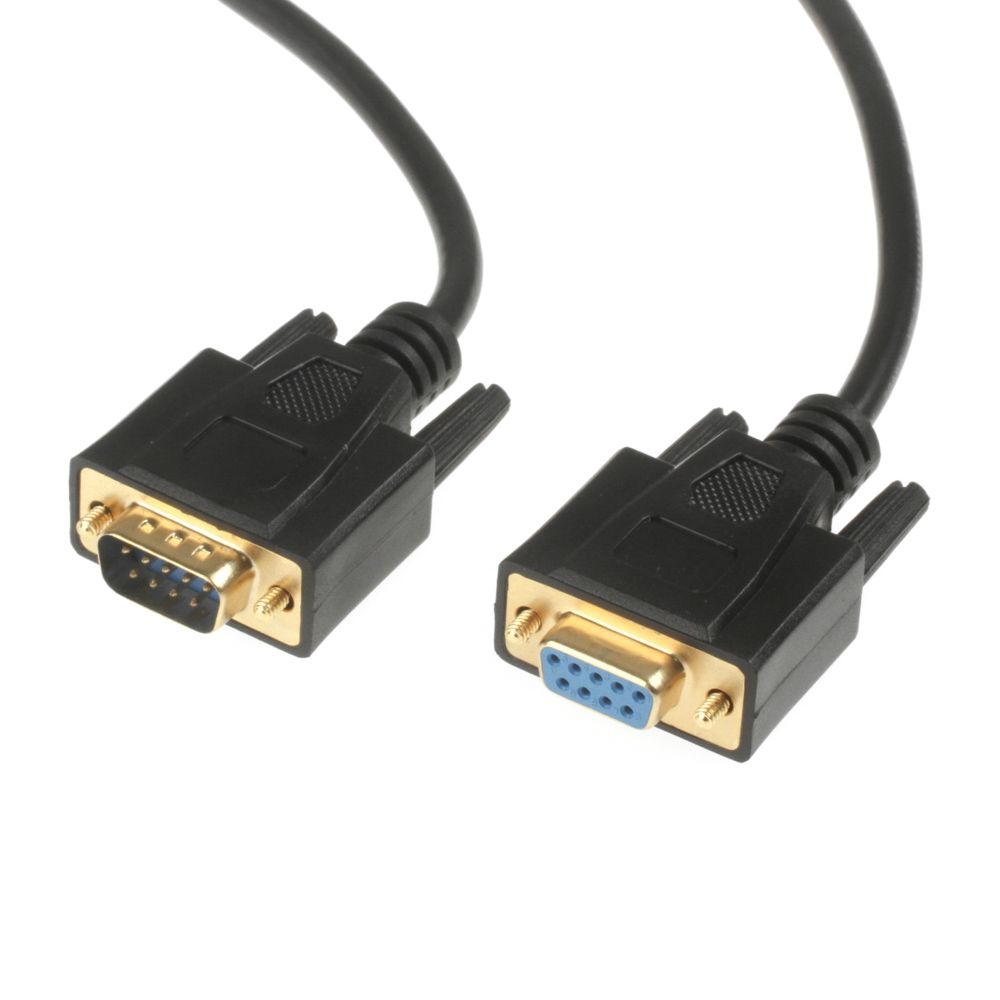

Serial cable DB9 male to female PREMIUM QUALITY 1m
DR. ZELLMER
€8.33*
403 in stock
Item no.
C2-09HQ-01
Serial cable DB9 male / DB9 female, 1m, gold plated plugs, double shield, connection 1:1 every pin, e.g. for RS232, colour: black
Key features
- serial 9-pin high-end DSUB cable / DB cable
- e.g. for RS232 (COM) data connection
- CONNECTOR 1: DSub-9 male (DB9 plug)
- CONNECTOR 2: DSub-9 female (DB9 socket)
- PREMIUM quality
- with gold-plated contacts and plug outsides
- with double shielding (foil shield + braided shield)
- with UL 2464 cable material, e.g. from COPARTNER (E119932-U) or CableTech Technology (E237114)
- with thicker copper conductors than usual: AWG 28 (CU, not CCA)
- hand knurled screws
- screw type UNC 4-40
- cable imprint: 80°C VW-1
- moulded connectors with moulded strain relief
- cable outer diameter approx. 5.5mm

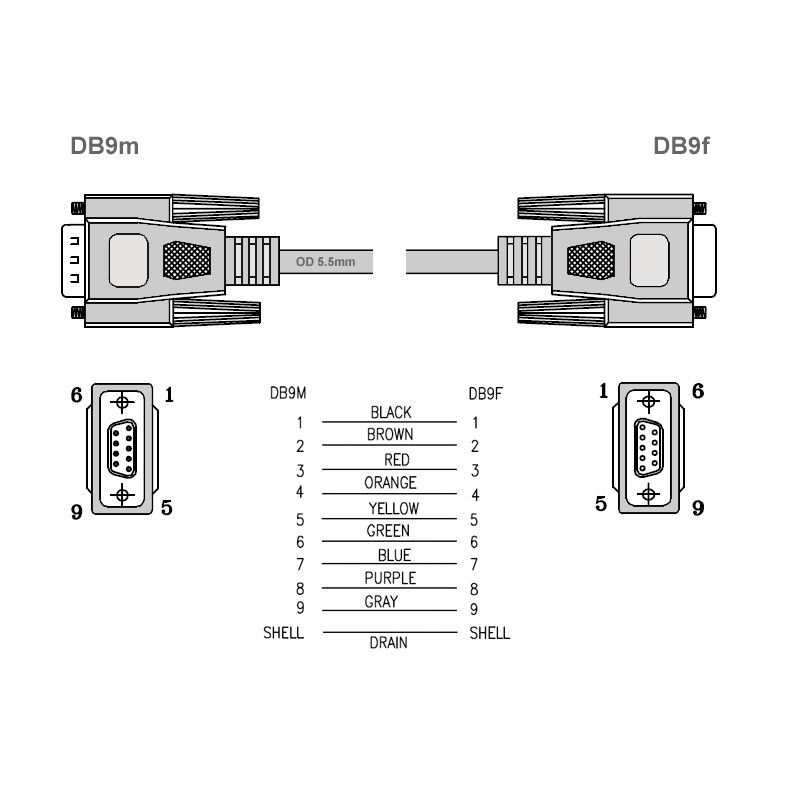

- all 9 contacts connected 1-to-1: 1-1, 2-2, 3-3 ... 9-9 (not cross over)
- colour: black
- customs tariff no. for serial data cables: 85444290
- CE, WEEE, RoHS compliant
