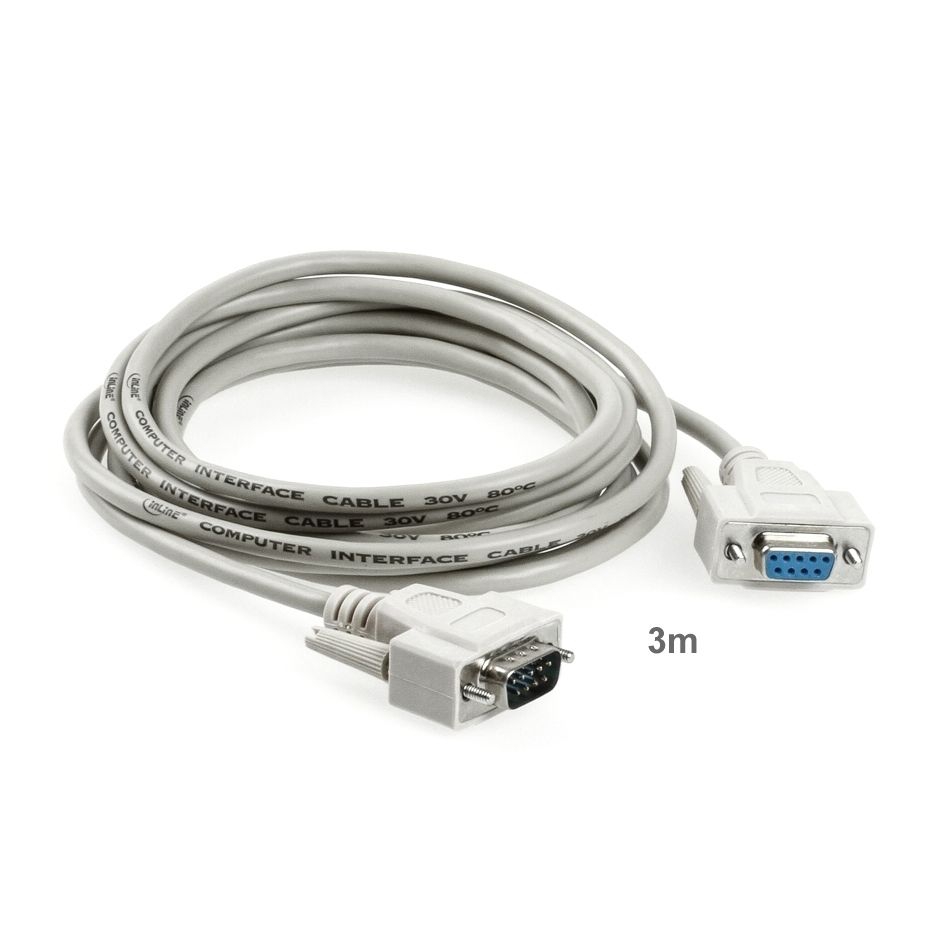

Serial cable DB9 male to DB9 female, 3m, e.g. for RS232

DR. ZELLMER

€6.84*

90 in stock

PDF-Datasheet

Item no. C2-09-03

Serial cable DB9 male / DB9 female, 3m, connection 1:1 every pin, shielded, e.g. for RS232

Key features

serial cable DB9 male to female
length: 3m
e.g. for RS-232, RS-422, RS-485

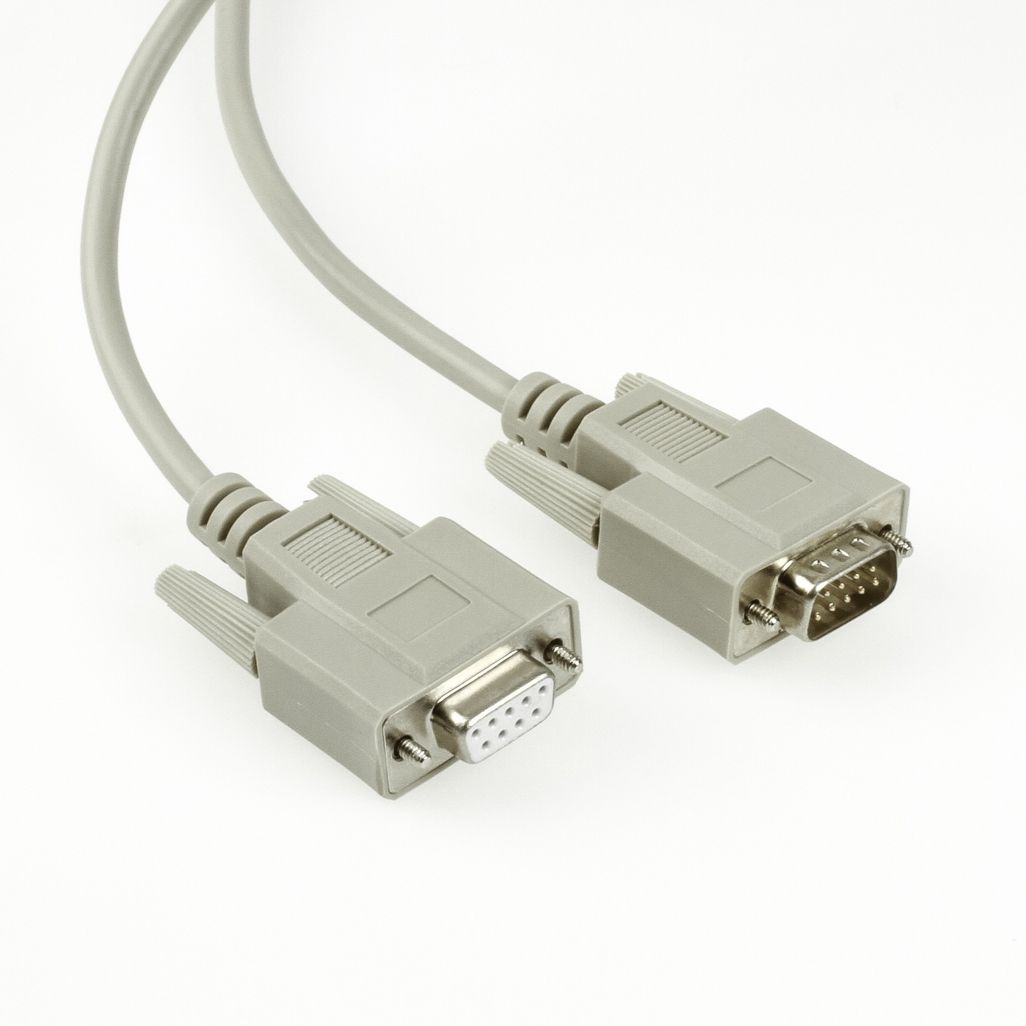

CONNECTOR 1: DSub-9 male (DB9 plug, 9 pins)
CONNECTOR 2: DSub-9 female (DB9 socket, 9 contacts)

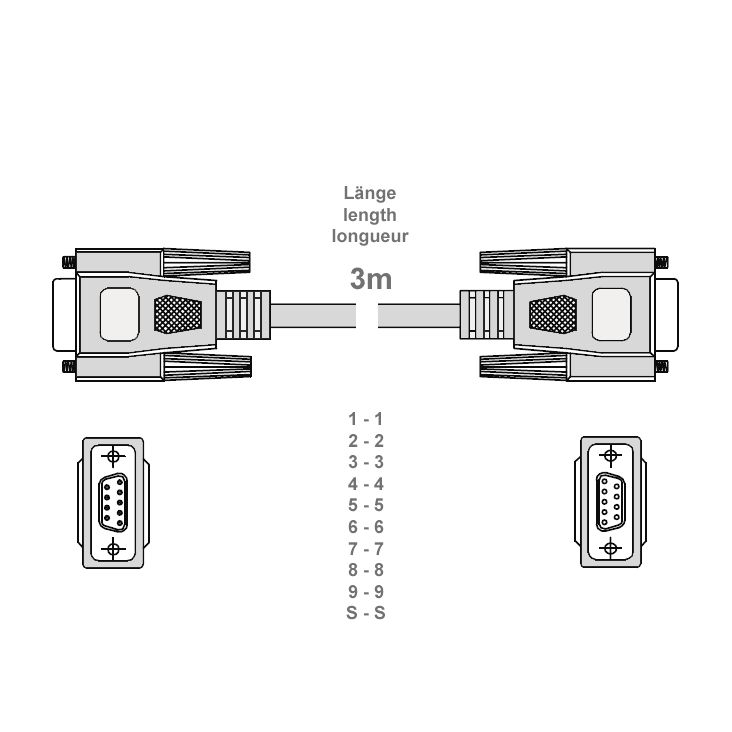

all 9 pins connected 1-to-1 (1-1, 2-2, 3-3 ... 9-9)
with hand knurled screws on both sides (incl. slot for screwdriver)
screw type UNC 4-40
the UNC4/40 thread type is the international market standard for serial cables
moulded quality plugs with good strain relief
inner conductor material: copper (not CCA)
gold-plated contacts
shielded (flexible aluminium foil)
cable outer diameter approx. 5mm
colour: grey-beige
cable type: round cable
oher product designations: DB9 extension, D-SUB 9 extension cable, DB9mf, RS232 connection, RS232 serial interface cable
cutoms tariff no.: 85444290

Environmental protection

RoHS compliant (2011/65/EU, 2015/863/EU) Registration Evaluation Authorisation and Restriction of Chemicals
UK CA compliant (SI 2012 No. 3032) The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations
WEEE
CE
