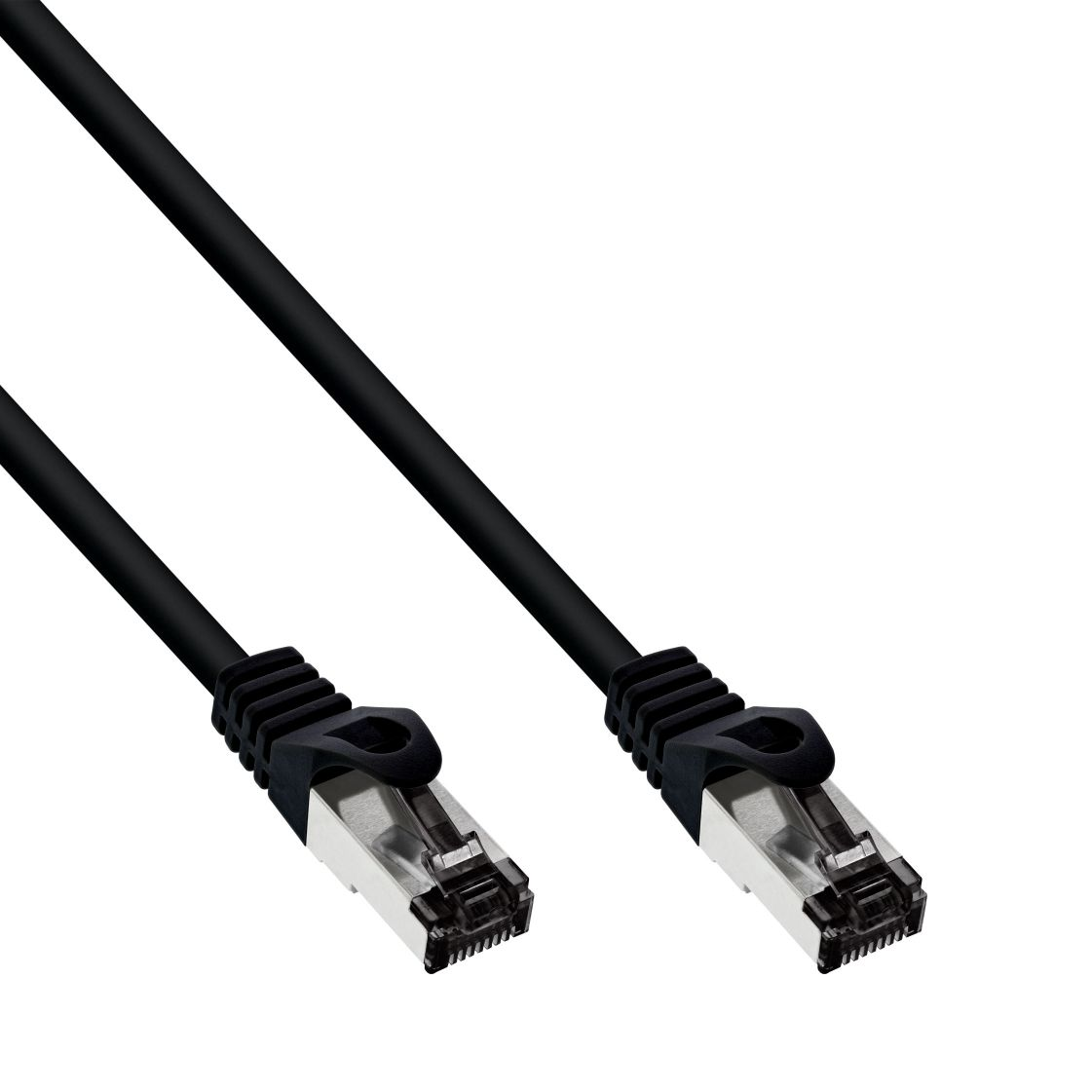

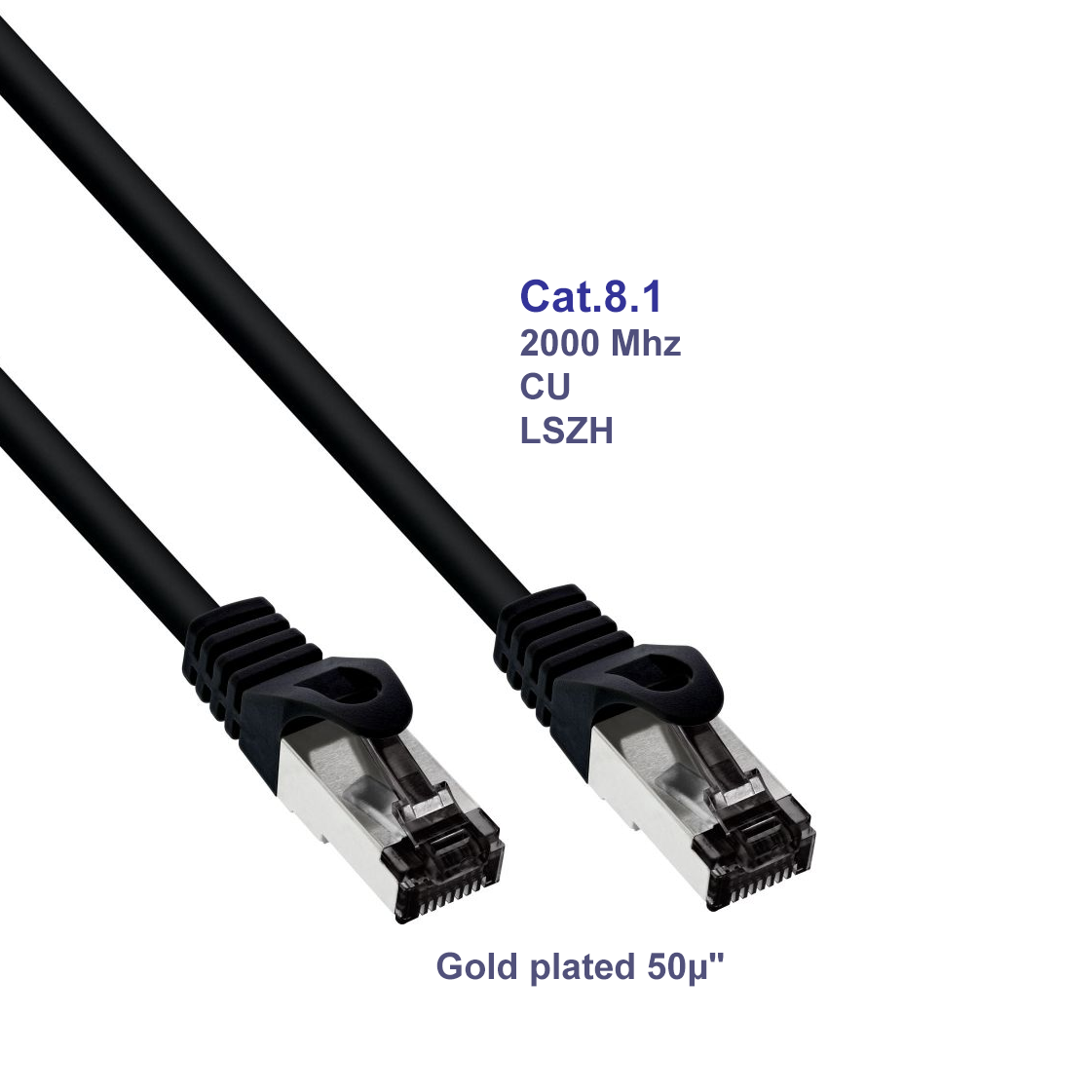

Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz black 0.5m

INLINE

€4.17*

10 in stock

PDF-Datasheet

Item no. B81-005

Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz black 0.5m

Key features

Cat.8.1 Network patch cable, round cable, up to 40Gb/s compatible
S/FTP PiMF
Plug black
PIN Gold plate 50µ"
26AWG
Conductor: Copper
AL-MG braid
Pin out: T568B
Jacket: LSZH
ISO/IEC 11801 Class I 2000Mhz
EIA/TIA 568-C
Fluke Channel Test ISO 11801 channel Class I
IEC60754-2 IEC 61034
Support PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
Plug Contacts durability: 750 cycles min
Operating Temperature: -10 ~+60°C
