Item no.
CU-B30-200

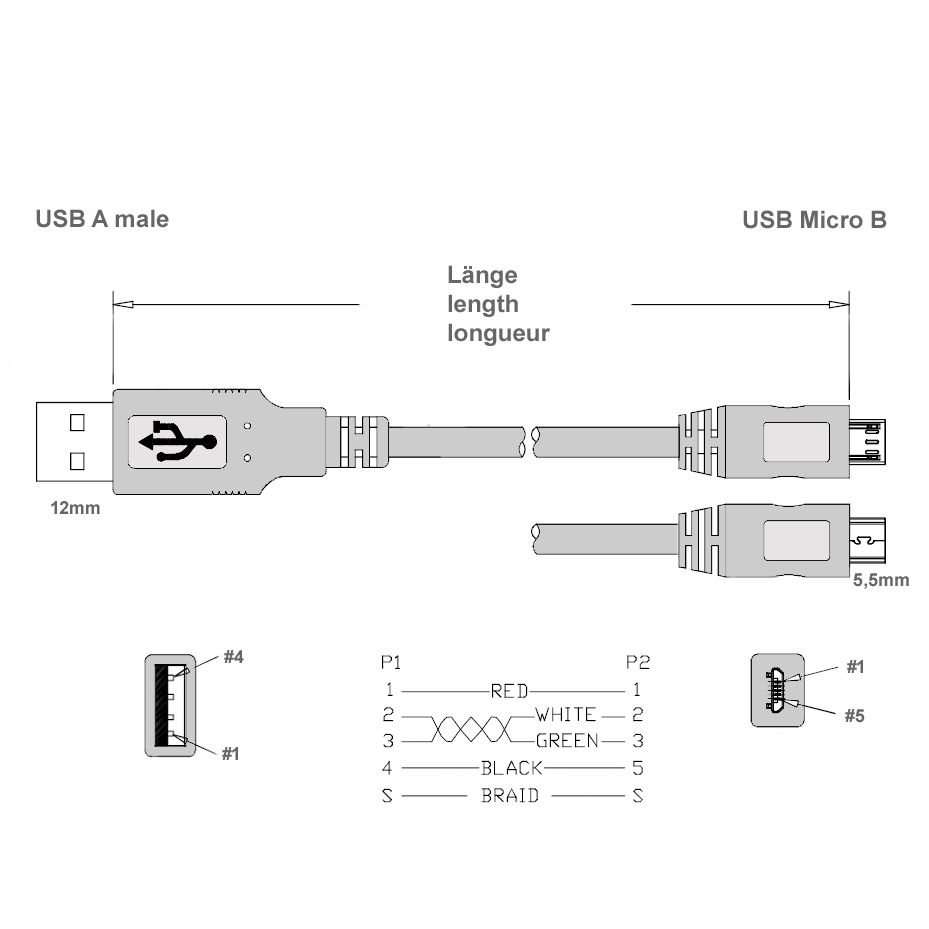

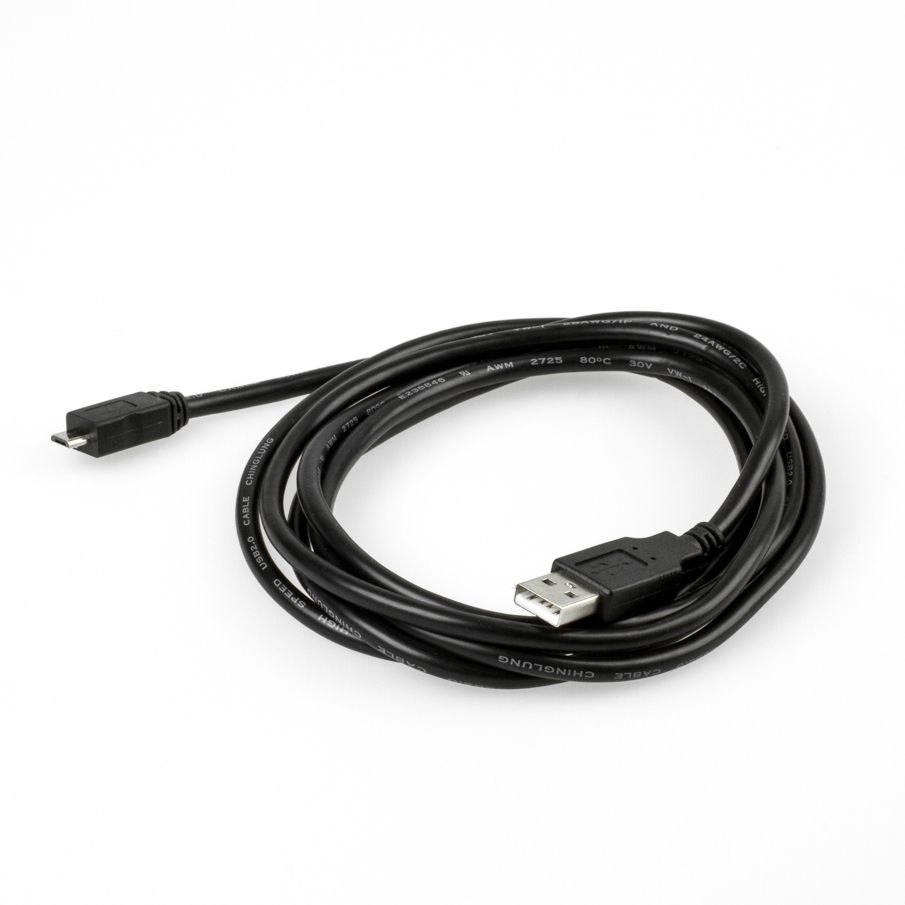

Micro USB cable 2m, PREMIUM quality with thicker power lines (AWG24/2C, AWG28/1P), USB 2.0, double shielded, USB A male to Micro B male, black
Key features
- Micro B USB 2.0 cable
- Connection 1: USB 2.0 male (for connection to PC, power supply unit, etc.)

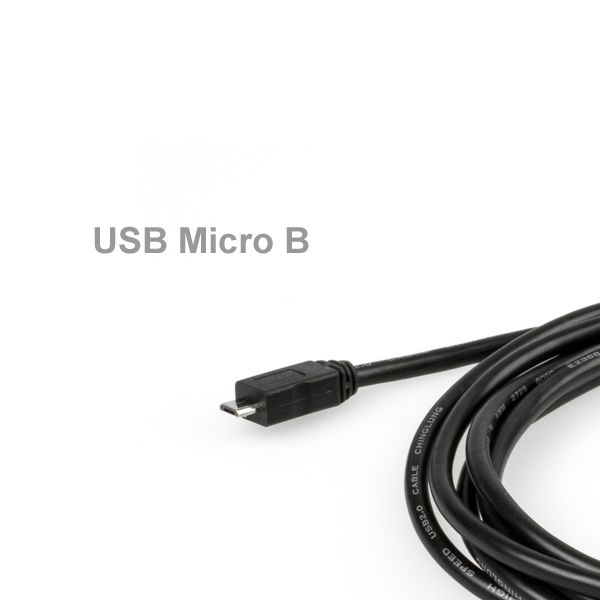

- Connection 2: USB 2.0 Micro B male 5-pin (4 pins occupied)
- PREMIUM quality
- with thicker conductors for faster charging
- double shielding with foil shield + braided shield
- shielded connectors
- data cables: twisted pair
- wire gauges: AWG28/1P (data) and AWG24/2C (power)
- conductor material: copper (CU)
- USB 2.0 High Speed + downwards compatible with USB 1.1
- suitable for 480 MBit/s (high speed), 12 MBit/s (full speed) and 1.5 MBit/s (low speed)
- e.g. for smartphones, mobile phones, digital cameras
- colour: black
- customs tariff no.: 85444290
- CE, WEEE, RoHS compliant
