MICRO USB 2.0 cable PREMIUM+ with thicker power lines AWG22 30cm
€4.76*
154 in stock

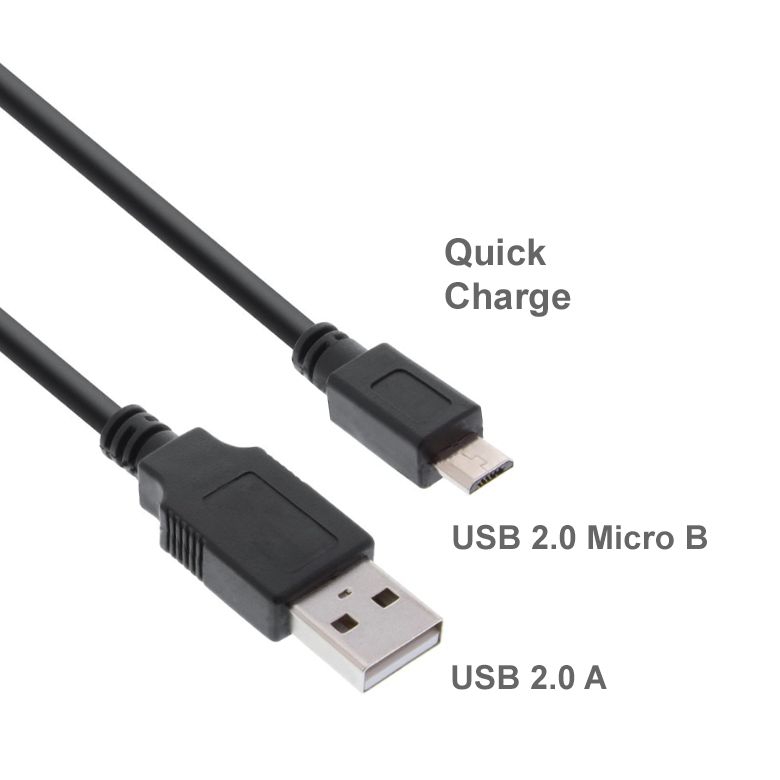

MICRO USB cable, 30cm, PREMIUM+ with stronger power connection AWG22/2C (data AWG28/1P), double shielded, USB A male to Micro B male, quick charge cable
Key Features
- Micro B USB 2.0 cable
- Connector 1: USB 2.0 plug type A male (for connection to PC, power supply unit, etc.)
- Connector 2: USB 2.0 Micro B male connector (5-pin, 4-pin occupied / device side)
- fast charging cable
- extra thick power wires AWG 22 (copper) for faster charging
- can be used as a data cable and charging cable
- PREMIUM+ quality
- gold-plated contacts
- double shielding: foil shield + braided shield
- data wires copper AWG28/1P, twisted pairs
- USB 2.0 compatible and downwards compatible with USB 1.1
- suitable for 480 MBit/s (high speed), 12 MBit/s (full speed) and 1.5 MBit/s (low speed)

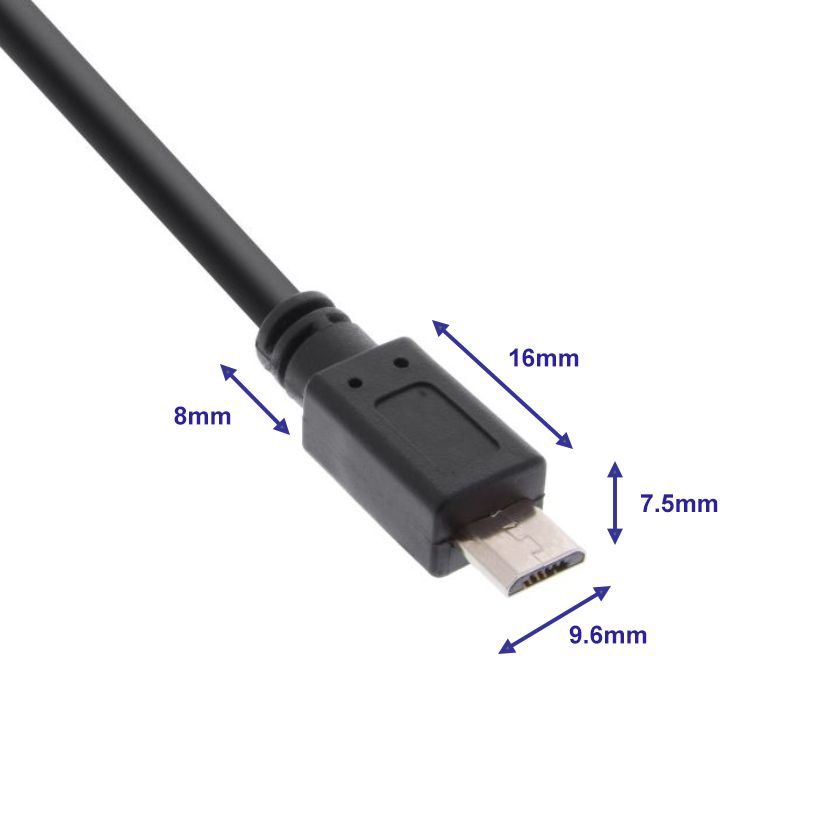

- cable diameter approx. 4.5mm
- Colour: black
- e.g. for smartphones, mobile phones, digital cameras
- CE, WEEE, RoHS compliant
Application
Modern smartphones and tablets today need more and more charging current in order to refresh battery quickly and do require often 2A and more of the power supplies. In order for this charging current the cable also must minimize this power loss, is it dimensioned accordingly so that the power loss is minimized here. This rapid charging cable has extra strong solid copper wires, of course, the normal data transfer between the mobile device and the PC is still possible.
