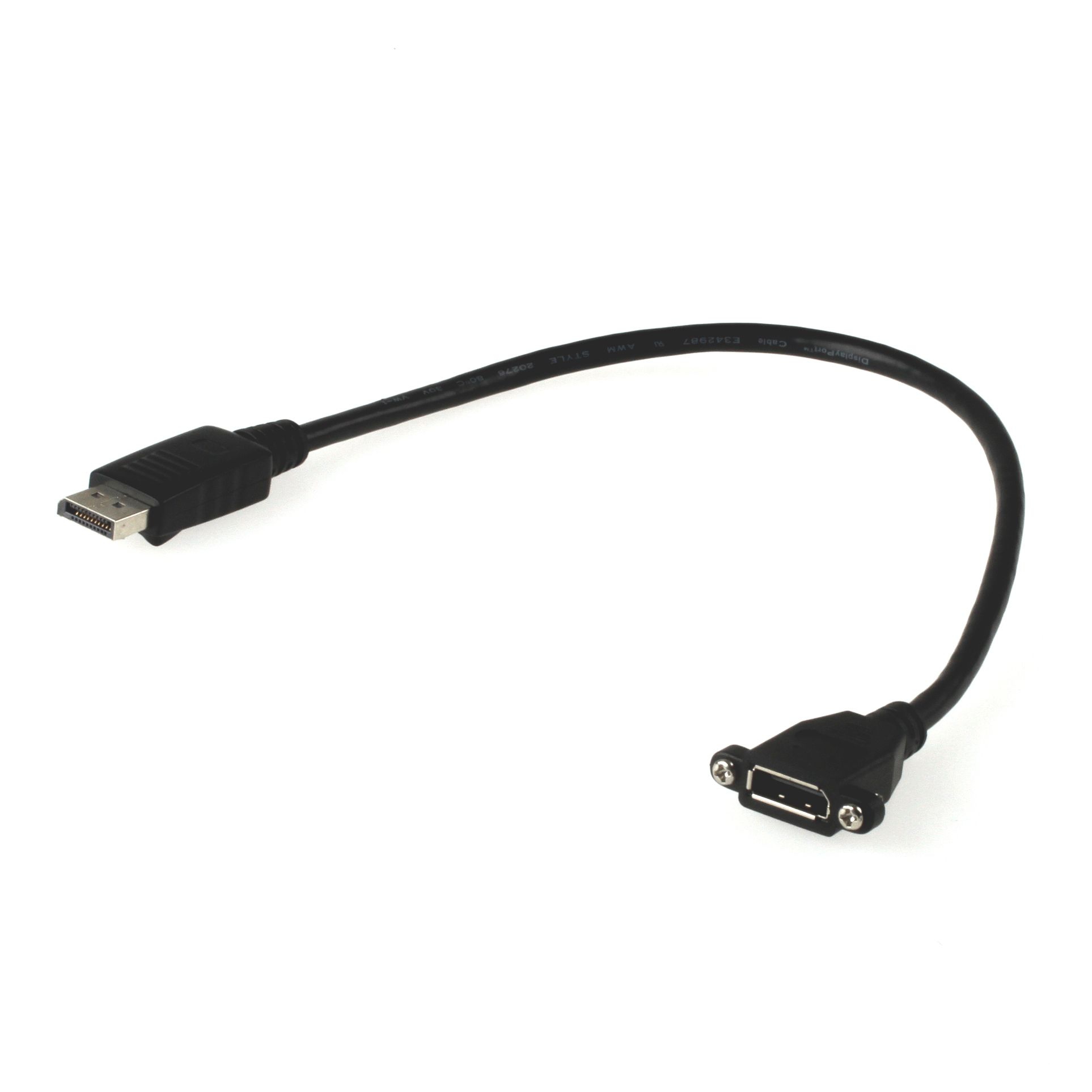

DisplayPort rack mount cable, DB female with screws to DP male, 40cm

DR. ZELLMER

€11.90*

82 in stock

PDF-Datasheet

Item no. AM-DP-40

DisplayPort rack mount cable, DB female with screws to DP male, 40cm

Key features

DisplayPort™ mounting cable for housing feed-through
Measured length incl. plug: approx. 40cm

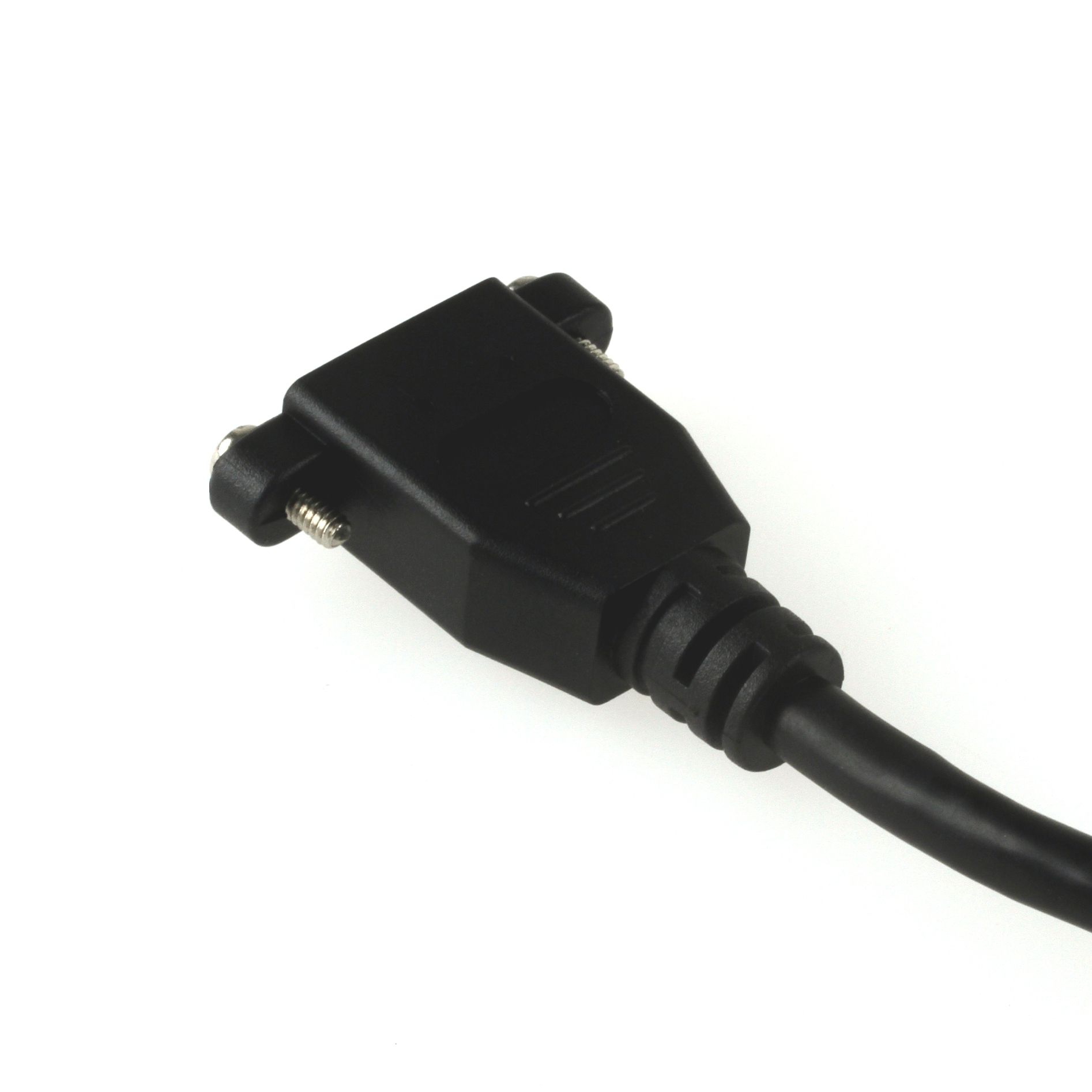

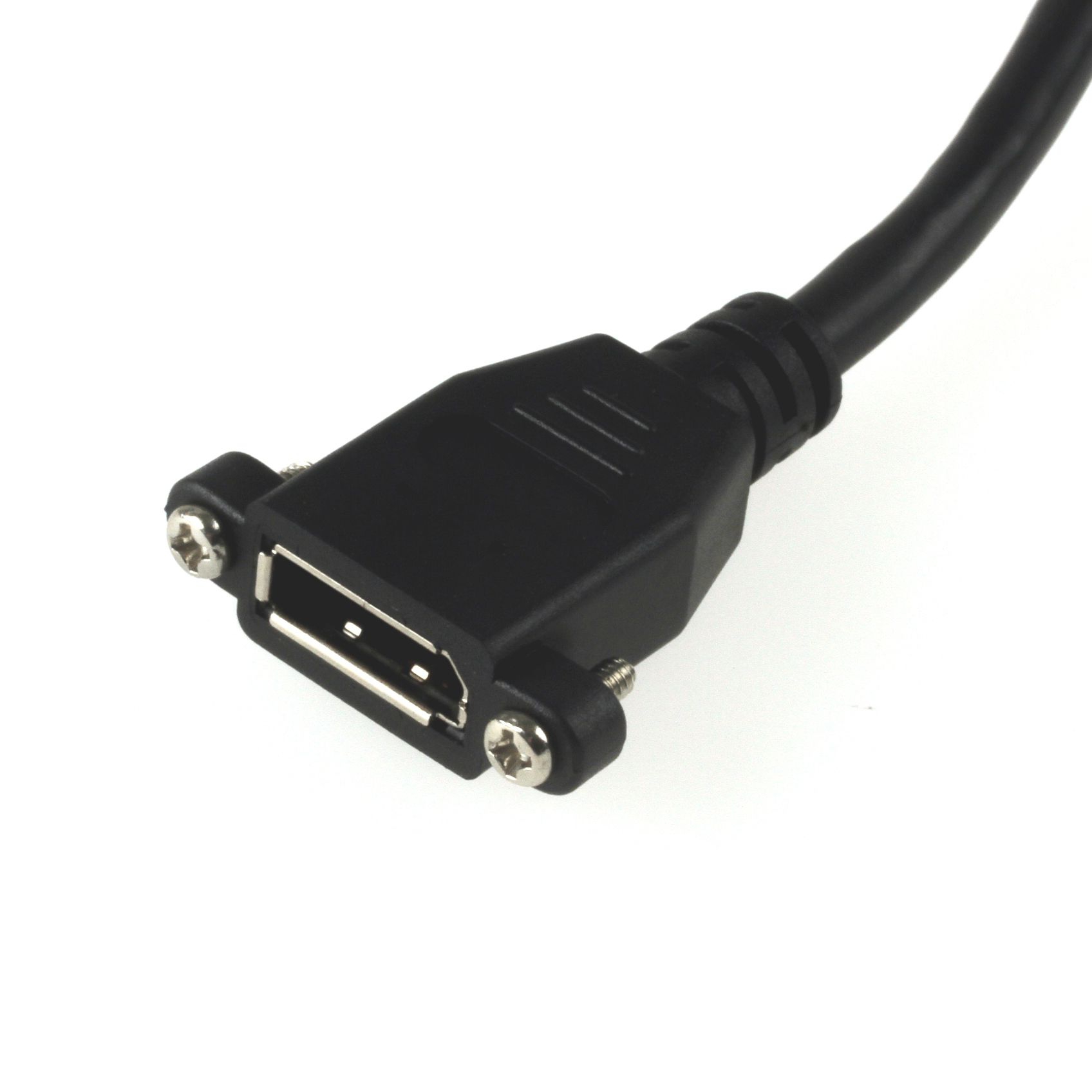

1x DisplayPort™ socket, screw-on (female)

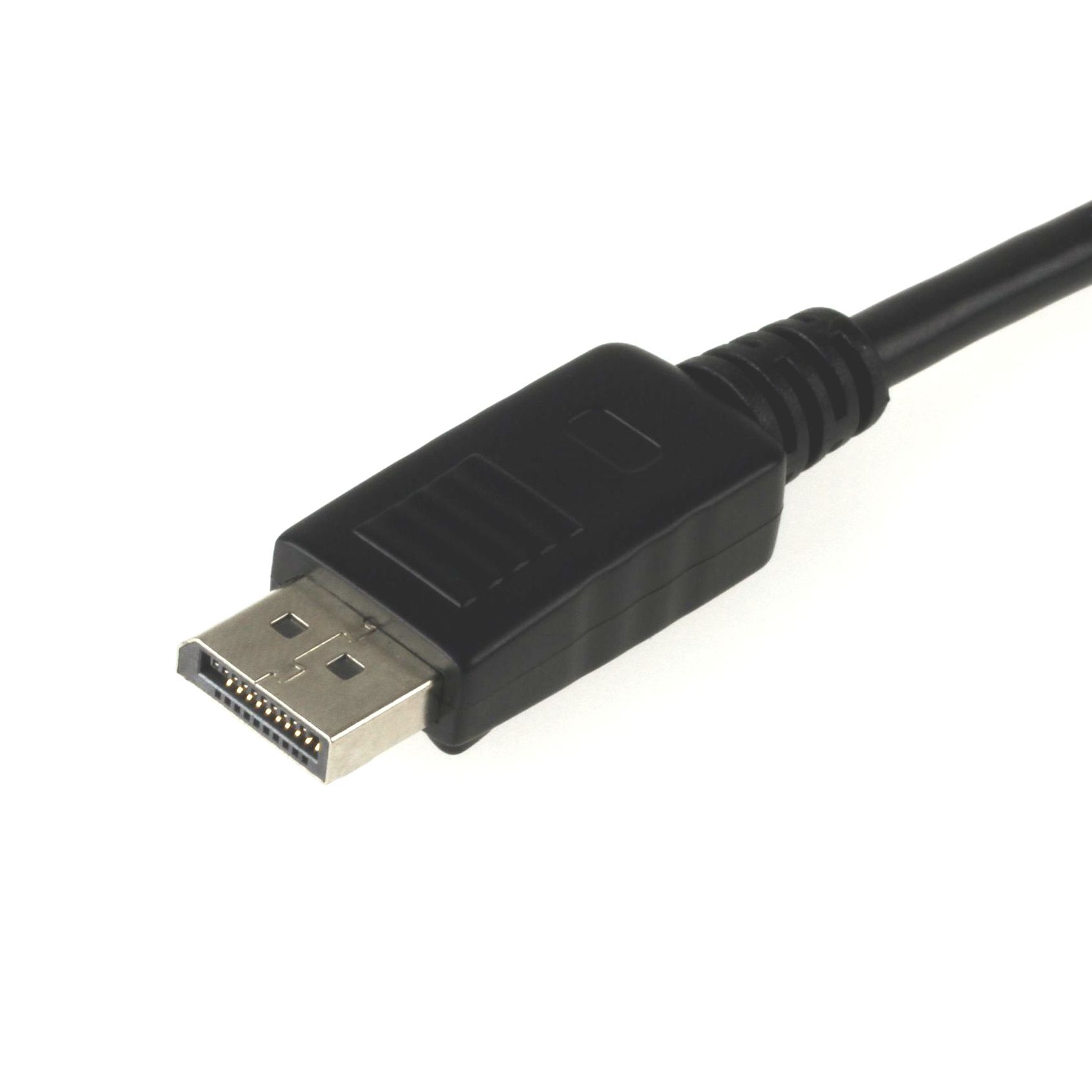

1x DisplayPort™ plug (male) with locking mechanism
gold-plated contacts
special UL DisplayPort™ cable material: e.g. E342987 UL AWM STYLE 20276 80°C 30V VW-1
AWG28
double shielded with foil and braided shield
cable diameter approx. Ø 6mm
delivery incl. 2 screws (pre-assembled)
screw spacing 27mm
screw type UNC 4/40
thread moulded into socket holder (simplifies installation)
all 20 pins connected 1-to-1 (including pin 20)
compatible with DisplayPort 1.2 specification
colour: black
transmission of audio and video signals
customs tariff no. 85444290
weight: 37gr (without packaging)
delivery incl. 1x DisplayPort protective cap
other designations: Rack mount cable, panel mount cable, mounting flange
CE, WEEE, RoHS compliant
