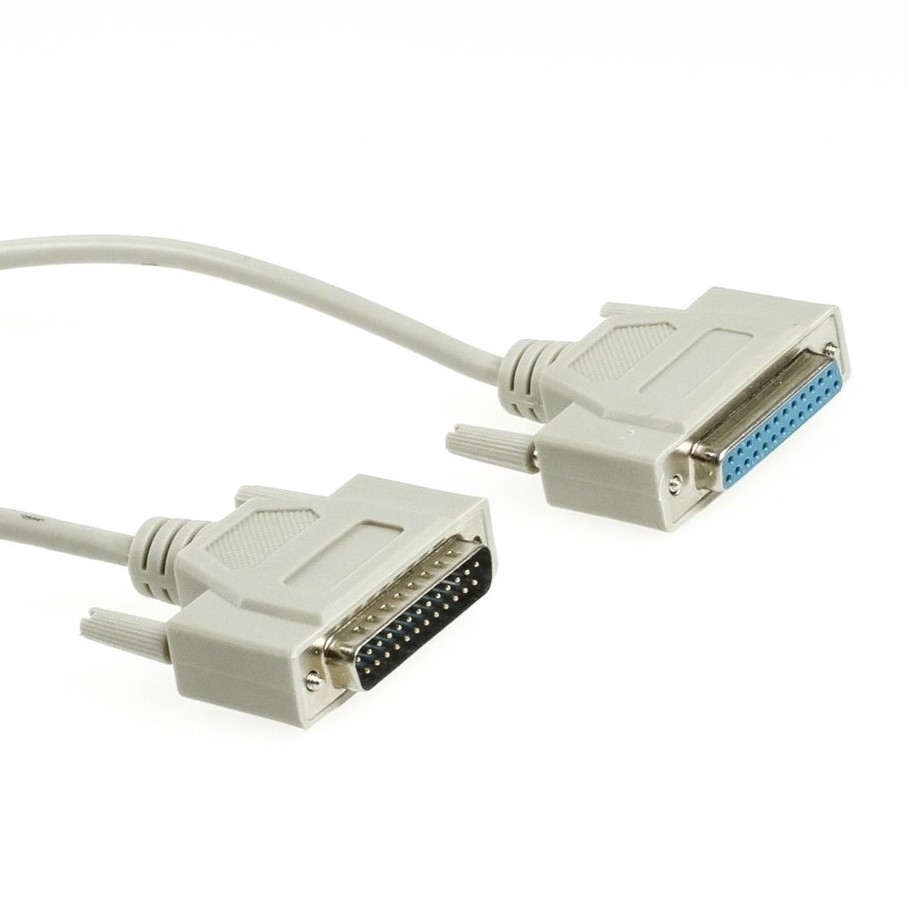

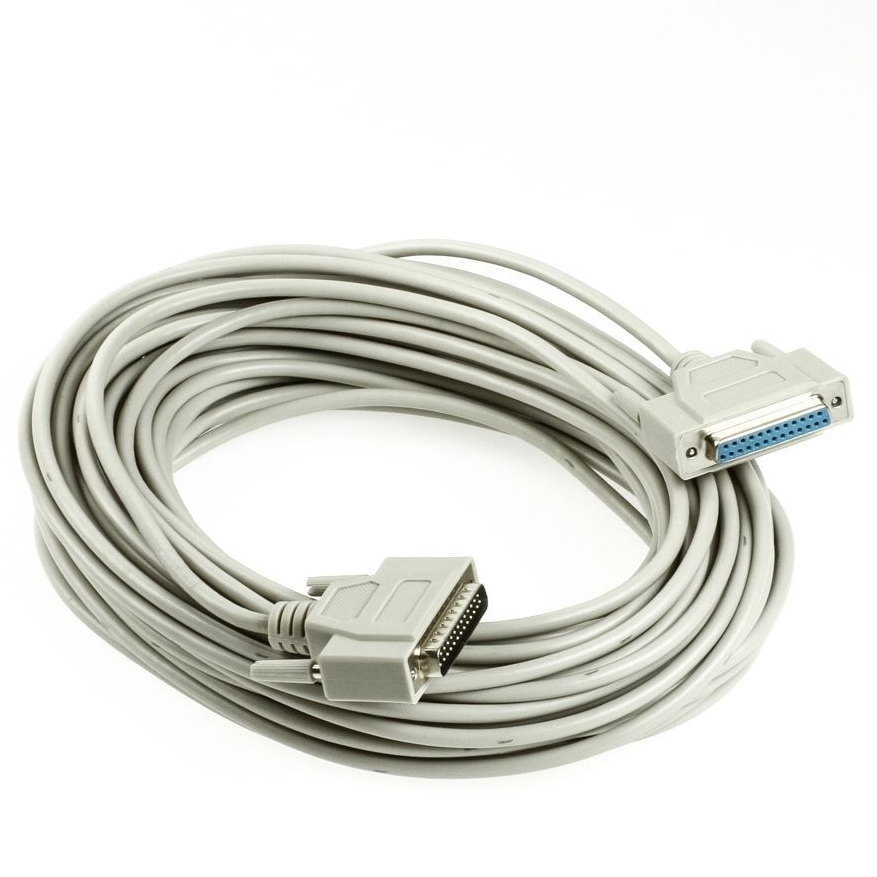

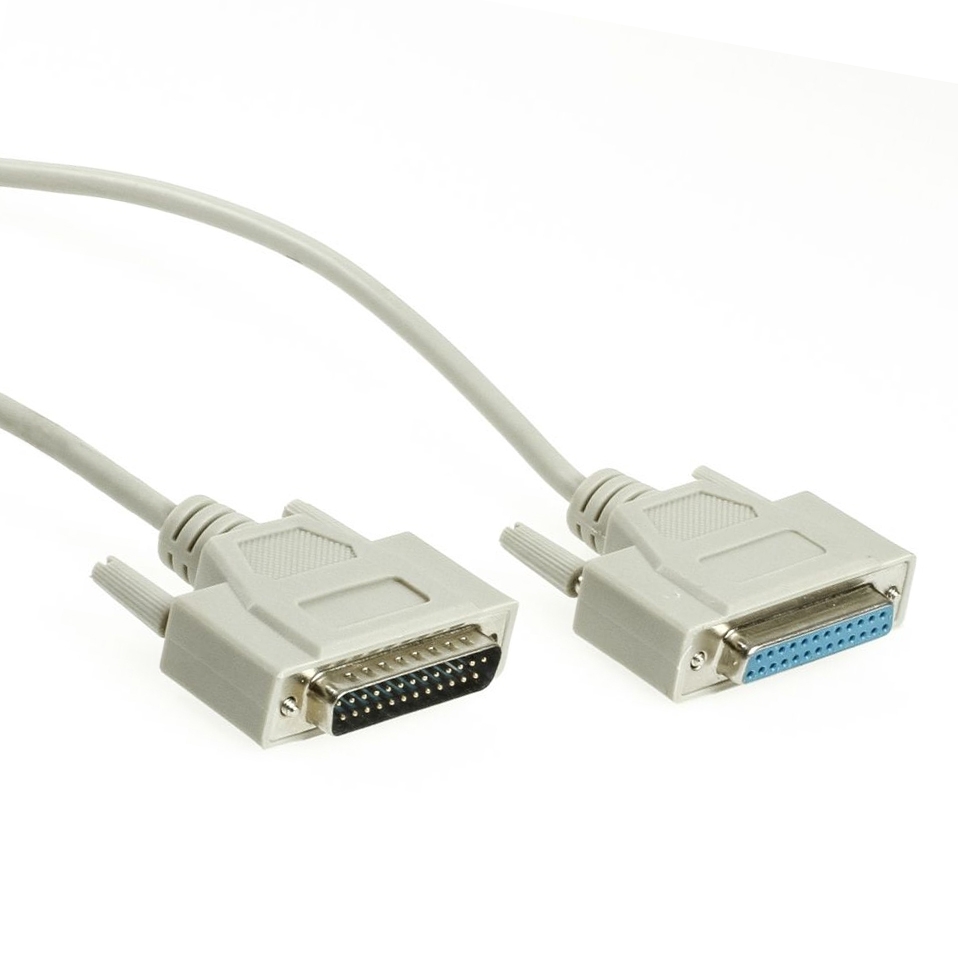

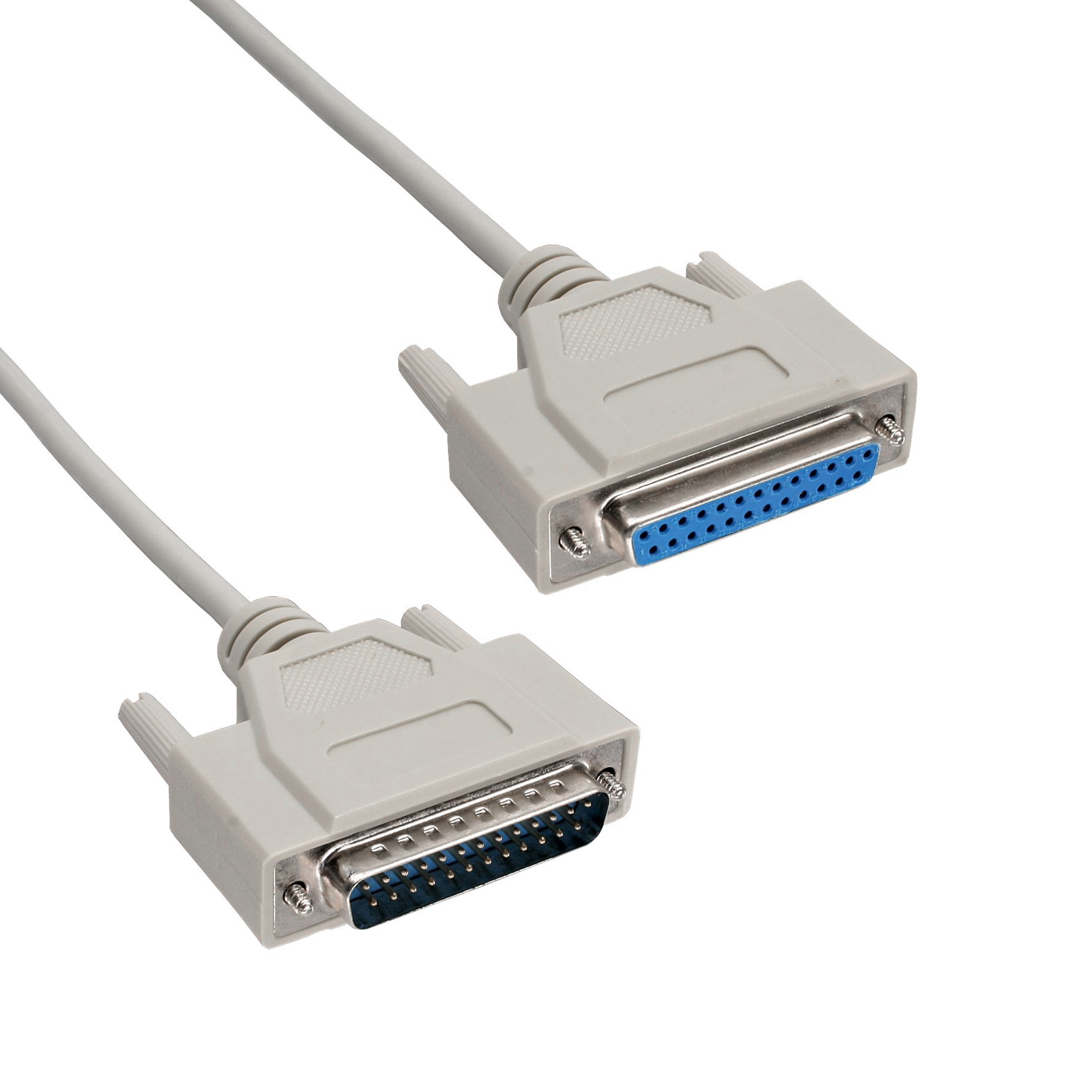

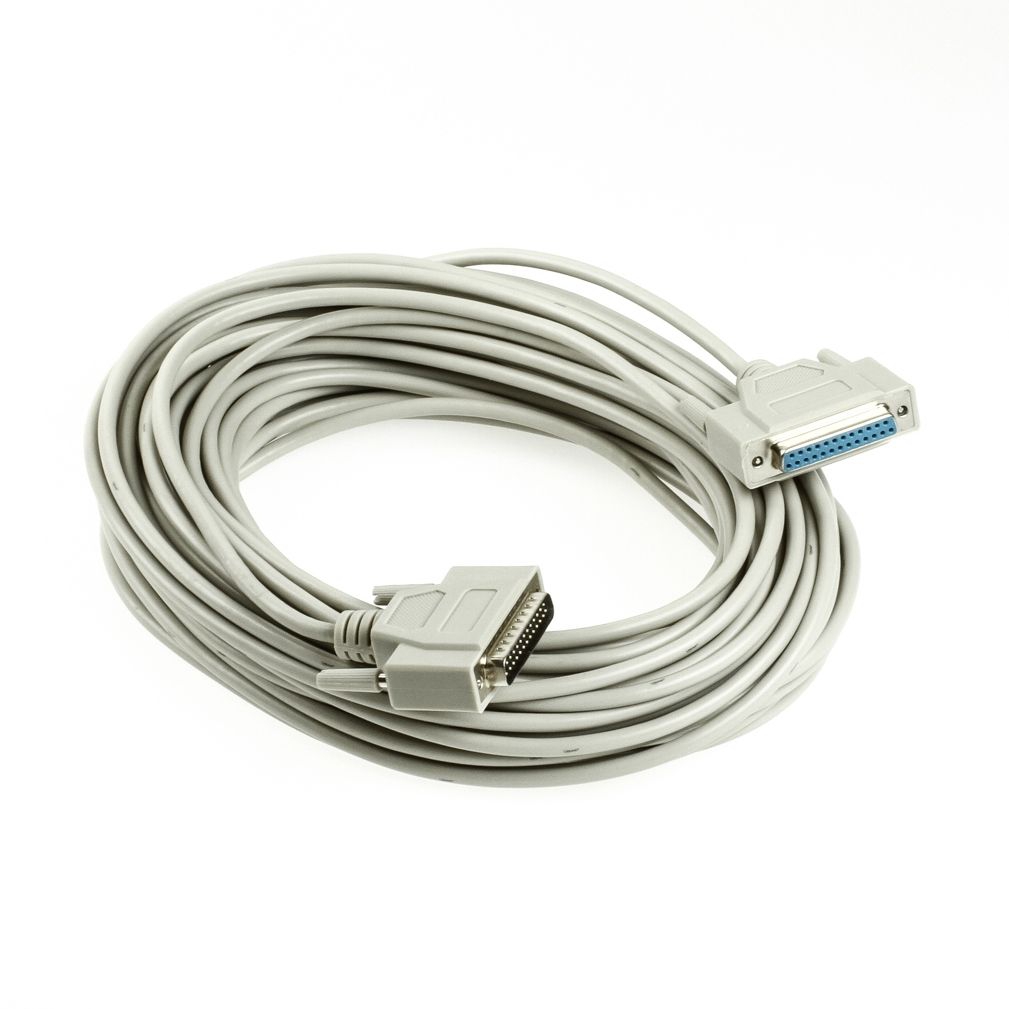

Data Cable DB25 male-female 1-to-1 20m

INLINE

€44.03*

8 in stock

PDF-Datasheet

Item no. C2-25-20

Data cable DB25 male to DB25 female, 20m, connection 1-to-1 all 25 pins, shielded, e.g. for RS232

key features

Data cable DSub-25 male to DSub-25 female
length: 20 metres | 20m
for serial or parallel data transmission
high quality cable with moulded connectors
hand screws (with slot) on both sides
screw type UNC 4-40
shielded (foil shielding)
all 25 contacts connected 1-to-1 (DB25 male/female)
CE, WEEE, RoHS compliant (environmentally friendly according to EU directives).
UL 20276 cable material: E324703 UL AWM STYLE 20276 80°C 30V
colour: grey-beige
cable diameter: approx. 7mm
weight: 1,38kg
customs tariff no.: 85444290
