4-Port USB 2.0 Metal HUB with 15KV Surge Protection DIN-RAIL EXSYS

EXSYS

€73.78*

1 in stock

PDF-Datasheet

Item no. EX-1163HMS

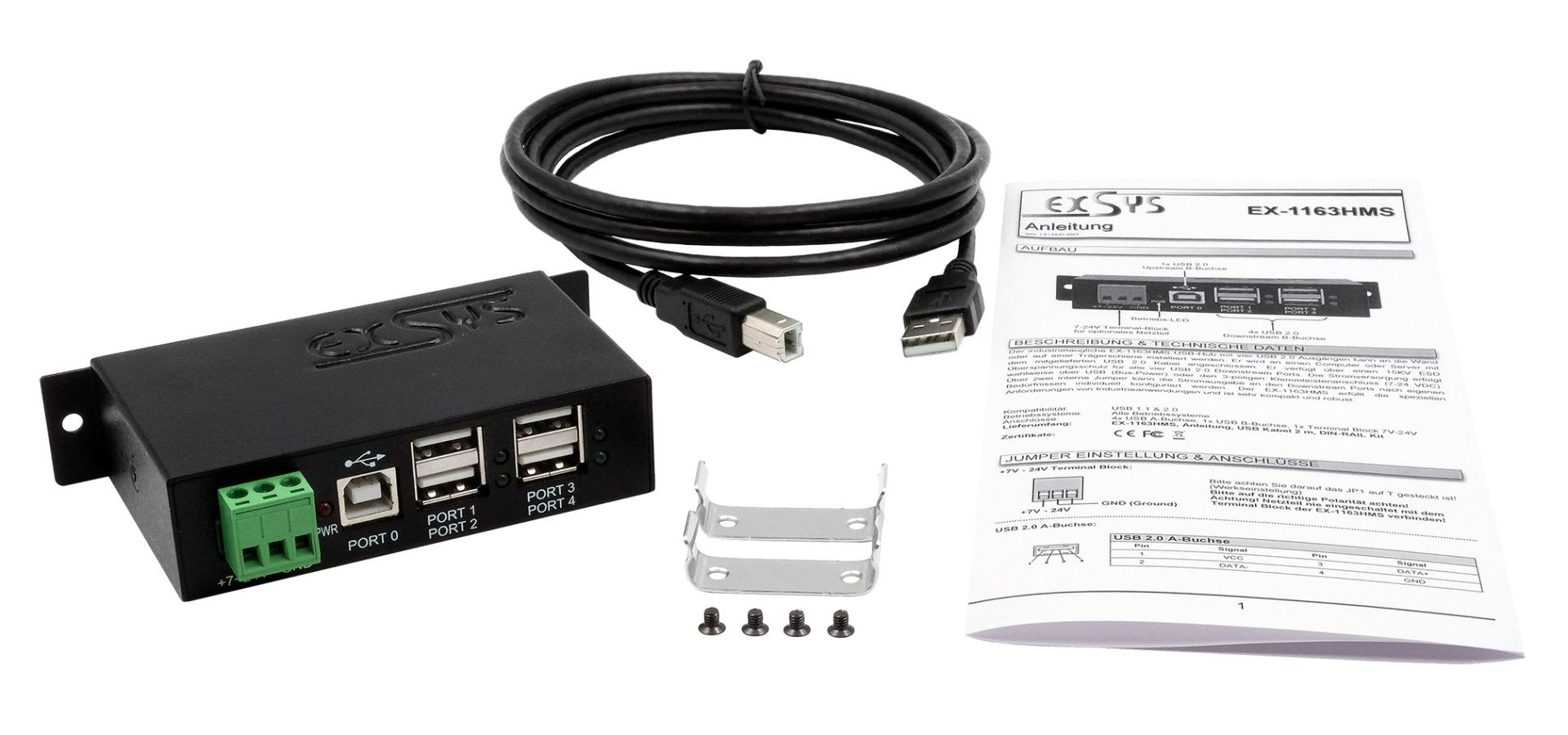

USB-2.0 HUB, 4 ports, industrial version, with RAIL mounting kit for 19" racks, metal case, max. 480 Mbps, colour: black, USB cable 2m included (no power supply inculded), with 15KV Surge Protection

Application

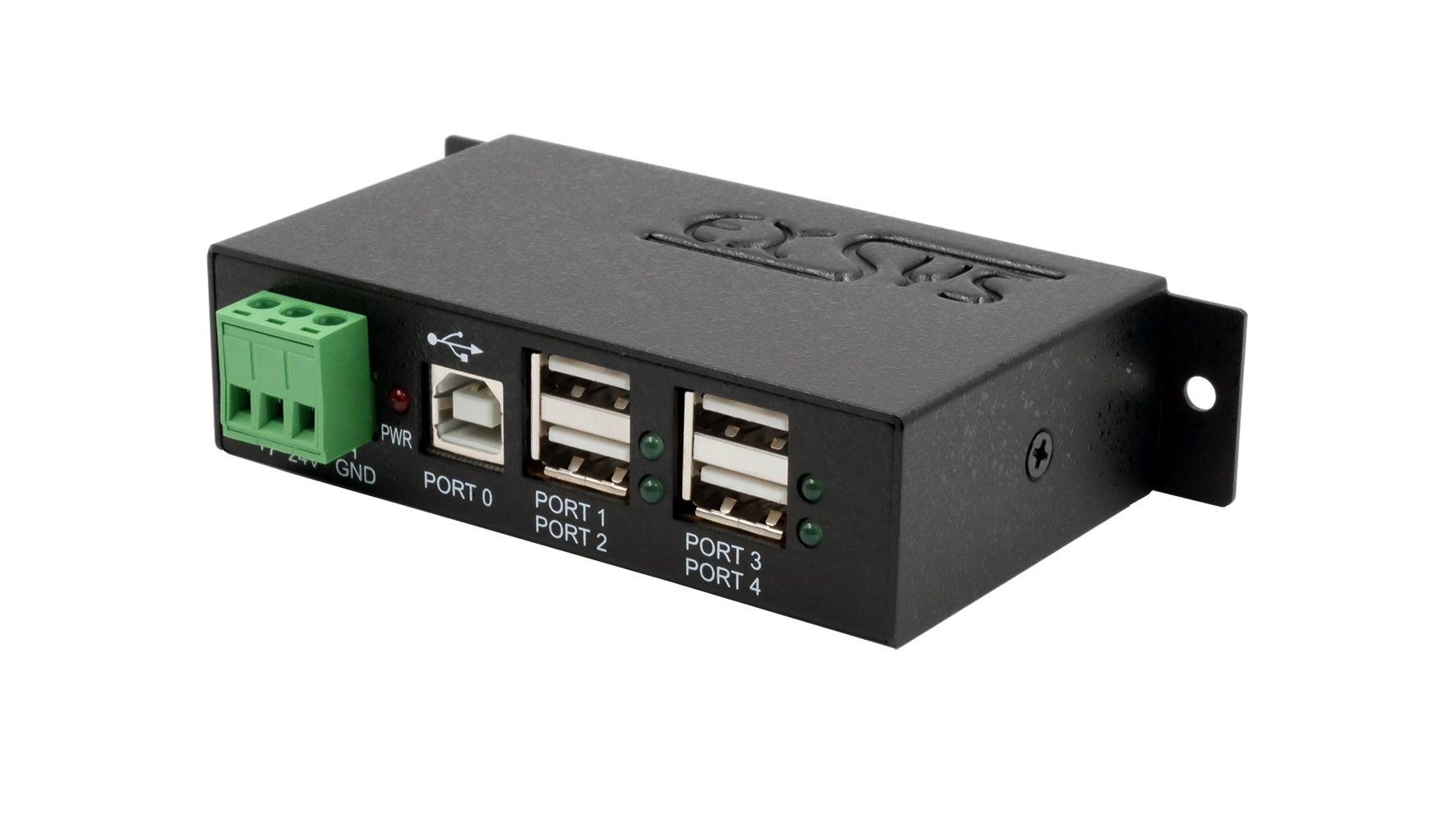

The EX-1163HMS is a rugged, industrial-grade USB hub with four USB 2.0 outputs that can be wall-mounted or rail-mounted. It connects to a computer or server via the supplied USB 2.0 cable and features 15KV ESD surge protection for all four downstream USB 2.0 ports. Power is supplied either via USB (bus power) or via the 3-pin terminal block (7-24V DC). Two internal jumpers can be used to configure the power output at the downstream ports to suit individual requirements. The EX-1163HMS is designed to meet the special requirements of industrial applications and is very compact and robust.

Details

USB 2.0 HUB with four downstream ports
15KV ESD surge protection for all 4 ports

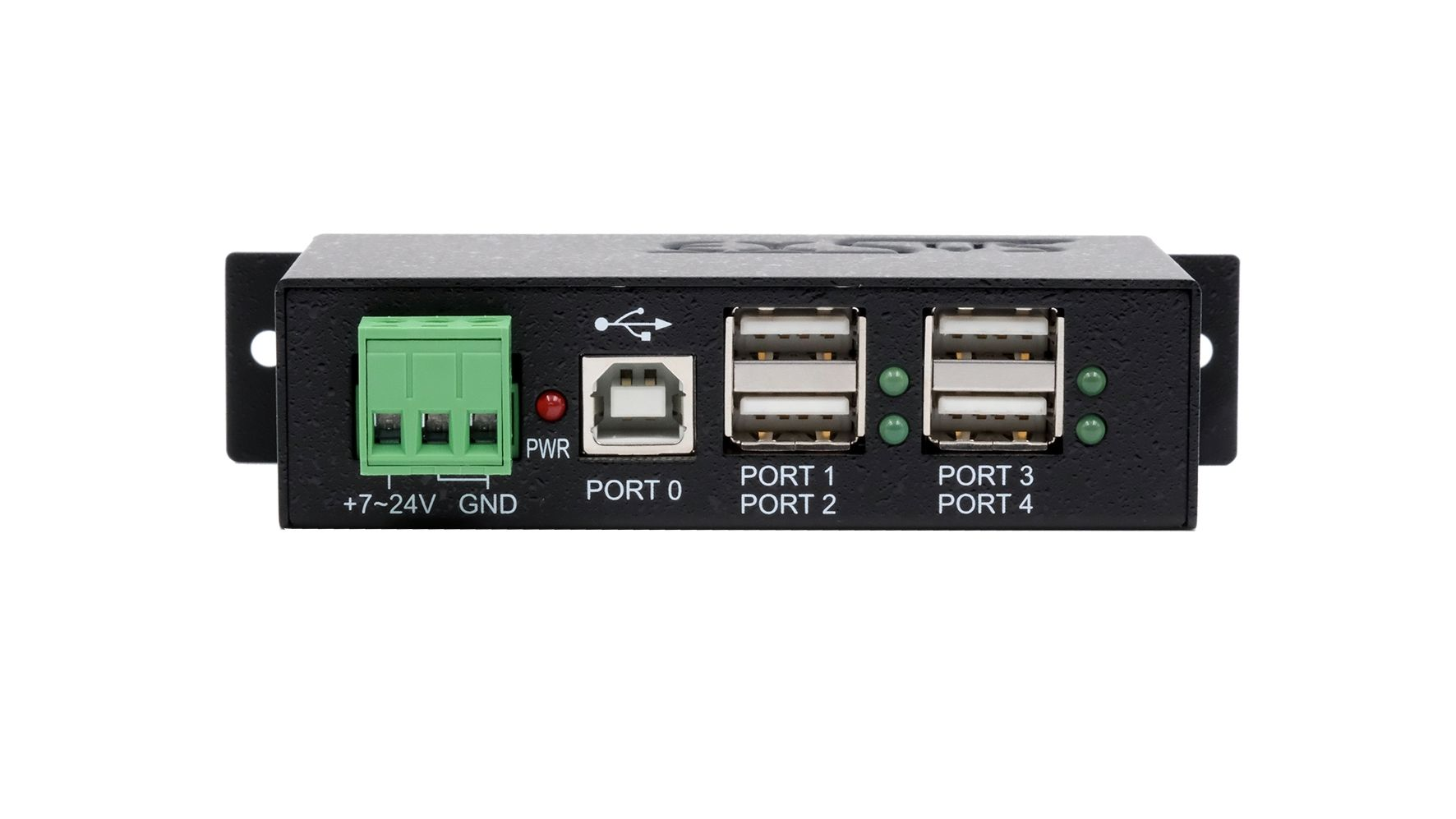

Power supply +7 to +24V DC via terminal block
Power supply optionally also from the USB-Bus +5V (bus power)
Allows individual configuration of power output at downstream ports
Automatic detection of input polarity on power terminal block
Automatic detection of data transfer rate of connected peripherals

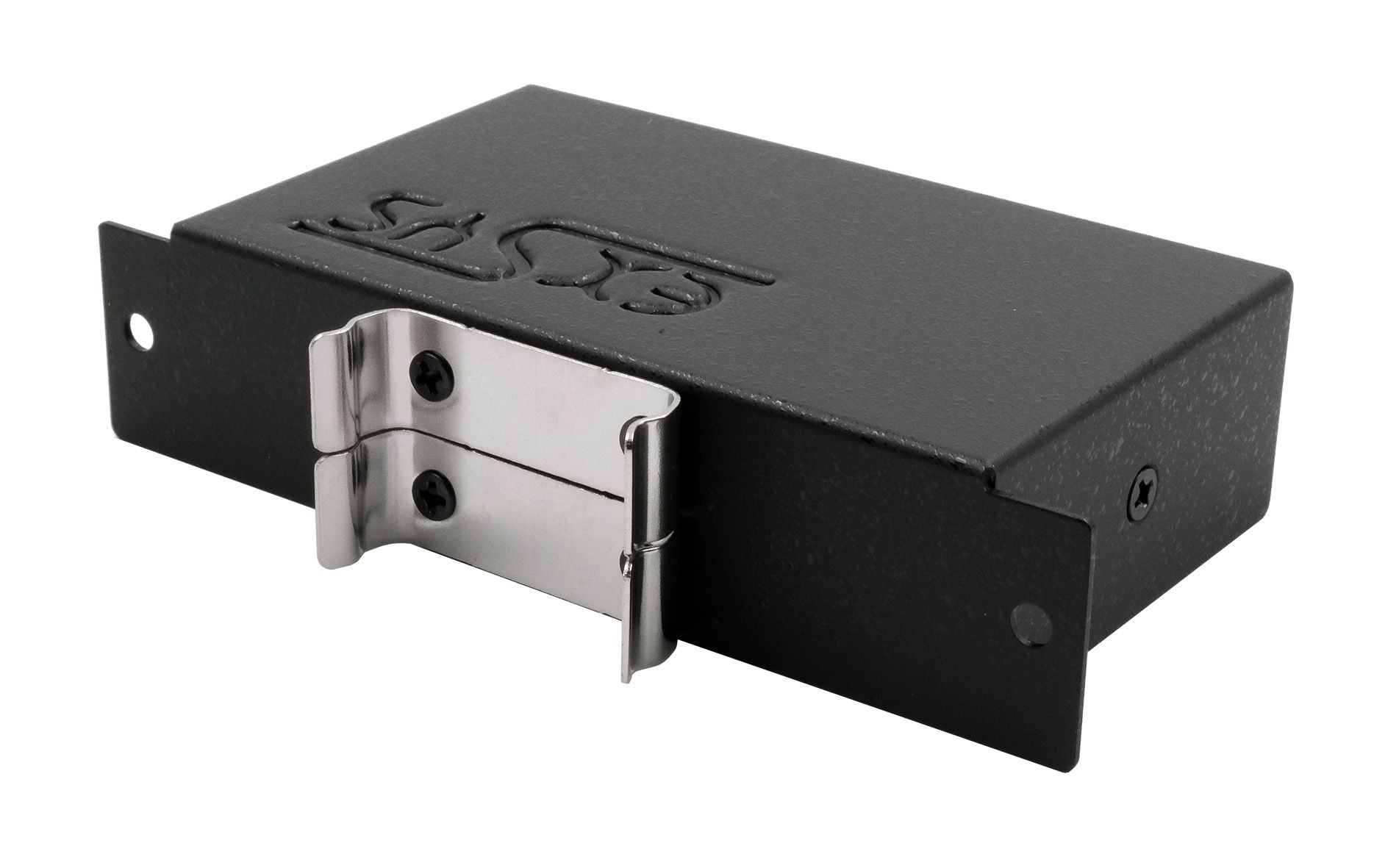

Easy installation with supplied DIN-Rail bracket
Up to 500mA current per port
Compact industrial design with metal housing
5x status LED
Chipset: Terminus FE 2.1
Two internal jumpers for individual mode control (data and power)

Bus power jumper:

ENA = bus power operation possible
DIS = operation with power supply only (self power)

Host control jumper:

ON = Power supply independent of host PC
HOST = Power supply only when host PC is switched on
